Protective Relays in Electric Utilities: Schemes, ANSI Codes and Deployment

A protective relay in electric utilities is the device that decides which breaker opens when a fault lands on a transmission line, a transformer, a busbar or a feeder. It measures current and voltage through instrument transformers, compares them against settings, and issues the trip.

At a glance

• Device functions are labelled by ANSI/IEEE C37.2-2022 numbers, so a setting sheet reads the same in every country
• Every utility asset gets a primary scheme plus at least one backup stage with a graded delay
• Typical grading margin between stages is 0.2 s to 0.5 s, set by breaker operating time plus relay overshoot
• Generator, transformer, line, busbar and feeder schemes are not interchangeable: each has its own ANSI function set
• IEC 60255-1:2022 sets the baseline performance and testing requirements for the relay itself
• IEC 61850-8-1:2011+AMD1:2020 carries settings, events and GOOSE tripping over the station bus
• Utilities specify documented type tests, a spare policy and a 10 to 15 year support window
• Distribution feeders see ANSI 50/51; transmission lines add ANSI 21 or 87L on top

The label survives the hardware.

What separates utility practice from industrial practice is not the relay, it is the number of layers underneath it. A utility scheme has to stay selective across a network where the short-circuit level moves every time a generator is synchronised or a line is switched out, where power can flow in either direction on the same conductor, and where a single misgraded stage can cascade into a regional outage. So the setting study matters more than the device, and the device is judged on whether it can hold its timing accuracy under CT saturation, hold its settings through a firmware update, and keep a signed record of every event afterwards.

Utility protection schemes are built from those layers: a fast primary stage that clears in a few cycles, a delayed stage that covers the next zone, and breaker failure protection that back-trips the neighbours if a breaker refuses.

Two standards anchor the whole arrangement. ANSI/IEEE C37.2-2022 defines the 95 device function numbers and the suffix letters used on every scheme drawing. IEC 60255-1:2022 defines what the relay has to do before it is allowed to carry those labels: accuracy, burden, and the type tests that prove it.

For electric utilities, grid stability and operational reliability fully rely on solutions within the Protective Relay in Electric Utilities Market. Faults including short circuits, ground faults, overvoltage and reverse power flow may cause permanent damage to generators, transformers and transmission equipment, and even trigger large-scale blackouts and cascading grid failures. Protective relays instantly isolate faulty sections to keep sound grid segments in operation, which is what keeps those risks contained.

Core Value for Utility Operators & EPC Contractors: Standardized, high-performance protective relays reduce unplanned downtime, extend equipment service life, minimize maintenance costs, and ensure full compliance with international grid operation codes.

Core Applications of Protective Relays in Electric Utilities

Utility protection schemes are allocated asset by asset, and the allocation is what a setting study actually produces: a list of which ANSI functions sit on which device, and which zone each one covers.

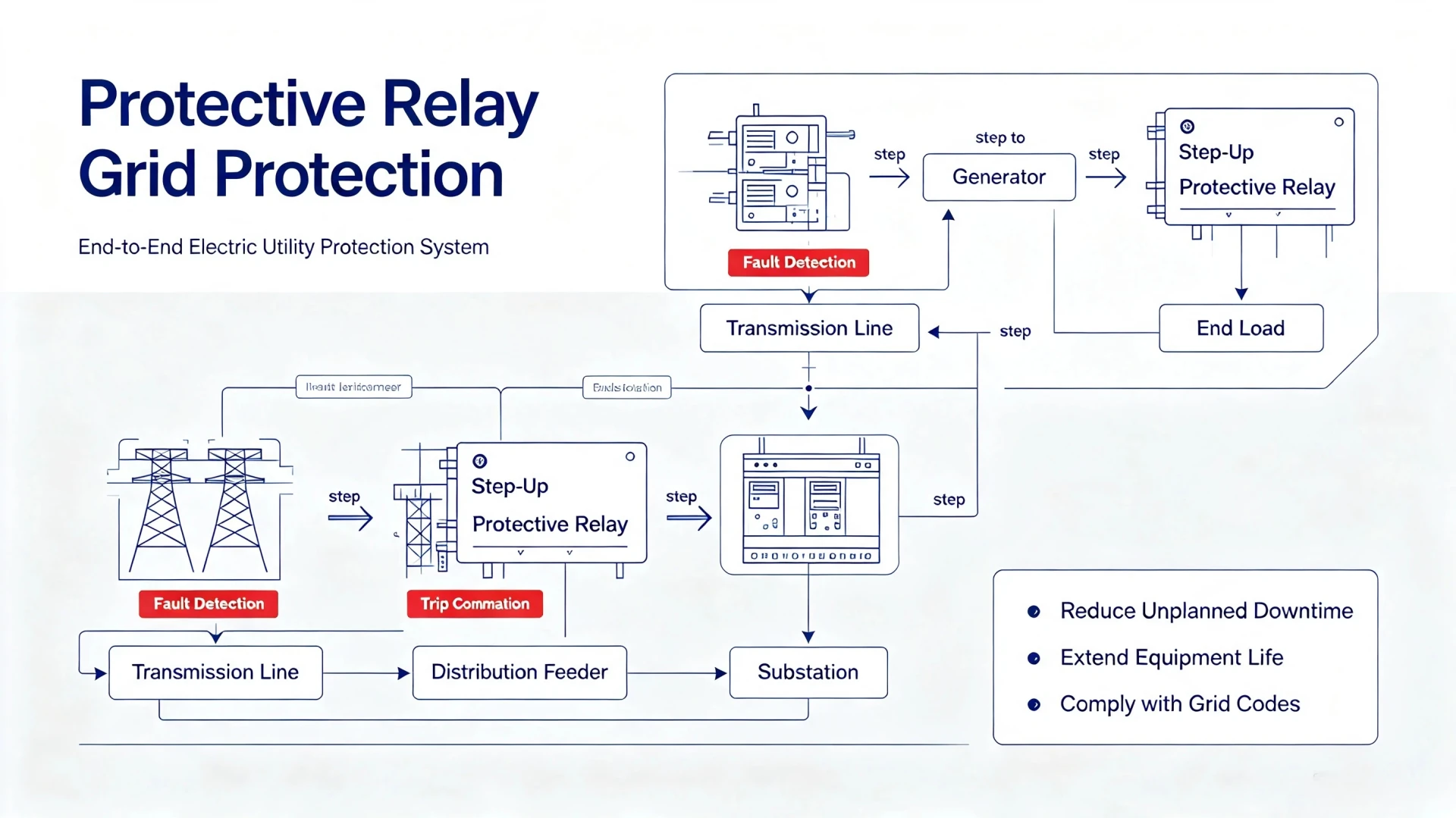

Within the Protective Relay in Electric Utilities Market, electrical protective relays cover all key assets across the full power grid lifecycle. Each grid segment and equipment type requires customized protection logic to match operational characteristics and fault risks.

Power Generation Plant Protection

Within protective relaying for power generation systems, generation-side protection focuses on preventing generator and unit transformer damage from internal and external grid abnormalities. The functions involved are listed under generator protection relays.

Key applications include generator differential protection, reverse power protection (to avoid generator motoring), loss of excitation protection, overcurrent/64 ground protective relay, and generator-transformer unit integrated protection.

These relays isolate internal faults instantly to prevent unit burnout and grid back-feeding failures.

Transmission Network Protection

Transmission lines operate at high voltage levels and undertake long-distance power transmission, requiring fast and accurate fault response. Core protection types include distance protection, line differential protection, directional overcurrent protection, line-to-ground fault protection, and auto-reclosing functions. Multi-zone protection design ensures graded response to near-end and far-end faults, guaranteeing transient stability of high-voltage grids.

Protective Relays in Substation

Substations are the hub of power grid energy conversion and distribution, with complex equipment and high fault impact. Relay protection covers power transformers, busbars, incoming/outgoing feeders, and circuit breakers. Key functions include transformer differential protection, busbar differential protection, breaker failure protection, and over/undervoltage protection, ensuring rapid isolation of substation internal faults.

Distribution Network Protection

Distribution networks face complex load conditions and frequent external faults. Relays provide feeder overcurrent, earth fault, directional protection, and recloser coordination protection. Combined with distribution automation technology, they realize fast fault location, isolation, and power restoration, minimizing power outage scope for end users.

Main Types of Utility-Grade Protective Relays (ANSI Standard)

ANSI codes for utilities are not a catalogue, they are a naming convention that lets a protection engineer in one country read a scheme drawn in another. The number names the function, and the suffix names the variant.

Electric utilities adopt unified ANSI device function numbers for relay classification, ensuring consistent technical standards for global EPC projects, equipment procurement, and grid operation. The following are the most widely used relay types in utility scenarios.

Overcurrent Relays (ANSI 50/51)

The most basic and widely applied protection type for distribution feeders and low/medium-voltage equipment. ANSI 50 refers to instantaneous overcurrent protection for fast clearing of severe short-circuit faults; ANSI 51 is time-delayed overcurrent protection for coordinated protection of minor and persistent overcurrent faults.

Earth Fault Relays (ANSI 50N/51N)

Line ends are covered in detail under transmission line protection. Earth fault relays are specially designed for ground fault detection in ungrounded or resistance-grounded power systems. It identifies leakage current and single-phase ground faults that ordinary overcurrent relays cannot detect, effectively preventing equipment insulation damage and personal electric shock risks in distribution networks.

Differential Protective Relays (ANSI 87 Series)

The highest-precision primary protection for core grid equipment, judging faults by comparing current differences at both ends of protected equipment. Common types include 87G (generator differential), 87T (transformer differential), 87B (busbar differential), and 87L (transmission line differential). It features high selectivity and zero misjudgment for internal faults.

Distance Relays (ANSI 21)

Specialized for high-voltage transmission line protection, calculating fault distance by measuring line impedance. It adopts three-zone protection logic: Zone 1 for instantaneous near-end fault clearing, Zone 2 for backup protection of near-end dead zones, and Zone 3 for remote line backup protection, balancing protection speed and coverage.

Directional Overcurrent Relays (ANSI 67/67N)

Applied to ring networks, parallel lines, and interconnected grids with bidirectional power flow. It judges fault current direction to avoid invalid tripping of healthy branches, solving protection coordination failures caused by bidirectional power flow in complex grid structures.

Voltage & Frequency Relays (ANSI 27/59/81)

ANSI 27 (undervoltage) and 59 (overvoltage) protect equipment from grid voltage anomalies; ANSI 81O/81U (over/under frequency) monitors grid frequency stability. They are core protection devices for grid off-grid, renewable energy grid-connection, and load shedding control.

Reverse Power Relays (ANSI 32)

Mainly used for generator protection to detect reverse power flow from the grid to the generator (generator motoring state). It trips in time to prevent generator rotor burnout and unit damage, which is mandatory for all grid-connected power plants.

Protection Function Matching for Typical Utility Assets

Read the middle column as a minimum, not a menu. ANSI codes for utilities specify the function, so 87G means generator differential wherever it appears, but the count of functions a device carries is what separates a feeder relay from a transformer relay. A 33 kV feeder bay might be specified with four functions and a 110 kV transformer bay with eleven, and both are correct for their asset. The third column is the part that gets skipped: it records what the scheme is actually there to prevent, which is what a reviewer checks the settings against. When a bid comes back with a device that covers a different set of numbers, the comparison has to be made against this table rather than against the price, because a missing 50N on a resistance-earthed feeder is a coverage gap that no amount of settings work will close afterwards.

Different grid assets have distinct fault characteristics and operational risks, requiring matched ANSI protection function combinations under the classification of protective relays. The table below provides standardized protection configurations for EPC design, equipment procurement, and daily operation.

Utility Asset	Core ANSI Protection Functions	Primary Protection Purpose
Generator	87G, 32, 40, 46, 50/51, 59, 81	Prevent internal short circuit, reverse power, loss of excitation, and frequency/voltage anomaly damage
Power Transformer	87T, 50/51, 50N/51N, 49, 63	Isolate internal winding faults, overheating, and oil pressure abnormalities
Transmission Line	21, 87L, 50/51, 67	Fast clearing line short-circuit and ground faults, adapt to bidirectional power flow
Distribution Feeder	50/51, 50N/51N, 67	Rapidly isolate distribution network faults, reduce outage range
Busbar	87B	Precise protection for substation busbar key node faults
Capacitor Bank	50/51, 59, Unbalance Protection	Prevent overvoltage, overcurrent, and phase unbalance damage
Auxiliary Motor	49, 50/51, 46, 48/51LR	Protect against motor overload, stalling, and negative sequence faults
Circuit Breaker	50BF, Trip Circuit Monitoring	Prevent breaker failure and trip circuit failure

Key Note: All utility protection schemes adopt a primary + backup protection mechanism. Primary protection realizes instantaneous fault clearing, while backup protection acts with delay to cover primary protection failure risks, ensuring 100% fault isolation coverage.

Protection Coordination & Relay Setting Guidelines

Grading decides it.

This is where the arrangement either holds together or falls apart. Grading is a contract between neighbouring devices: each one promises to wait long enough for the device below it to clear, and no longer.

Protection coordination is the core of utility grid protection design, ensuring orderly and hierarchical action of all relays in the grid to avoid protection disorder.

Primary vs. Backup Protection Coordination

Primary protection acts first with zero delay for rapid fault clearing; backup protection is configured with a reasonable time multiplier delay to take over fault isolation when primary protection or circuit breaker fails, forming a double safety barrier.

Time-Current Coordination Rules

Relay setting must match system load current, short-circuit current level, CT/PT ratio, transformer impedance, and system grounding mode. Reasonable pickup current and time delay settings ensure upper and lower level relay coordination without crossing action.

Risks of Incorrect Settings

Unreasonable relay parameters directly lead to frequent nuisance tripping, failure to clear permanent faults, equipment overheating damage, large-scale power outages, and even cascading grid failures, causing huge economic losses to utilities.

Global Industry Standards for Utility Protective Relays

The year on the certificate matters.

Procurement documents usually name the standard family rather than the relay, which is why a compliance matrix has to list the edition. Four families carry most of the weight.

All utility protective relays used in international EPC and grid projects must comply with unified IEC and IEEE standards to ensure cross-project compatibility and operational standardization.

• IEC 60255: Core standard for measuring relays and protection equipment, defining basic performance, testing methods, and EMC requirements for relays; the latest EN IEC 60255-26:2025 further optimizes electromagnetic anti-interference indicators for smart relays
• IEC 61850: Unified communication standard for digital substations, regulating substation device modeling, GOOSE messaging, and process bus communication
• IEEE C37 Series: American standard for power system protection, specifying relay protection logic and coordination rules for transmission and distribution networks
• ANSI Device Numbering Standard: Unified global protection function coding standard for consistent project design and equipment operation
• Grid Code Specifications: Regional utility grid operation rules, supplementing customized protection requirements for local power grids

Digital Transformation & Market Trends

Five drivers.

What the utility asks a supplier to document shifts with each of them, more than what the relay itself does. A protective relay in electric utilities is specified against the same standard list either way.

The global electric utility industry is accelerating the replacement of legacy equipment and digital upgrading, driving the iterative upgrading of protective relay technology.

Legacy Relay Upgrading

A large number of aging electromechanical and static relays in old substations have problems such as single function and poor stability. Utilities are accelerating their replacement with multi-functional numerical relays to improve grid safety margins.

Digital Substation Popularization

IEC 61850-based digital protection systems and digital CT/VT devices cancel traditional hard-wiring, realizing full digitalization of protection links, improving system reliability and construction efficiency.

Renewable Energy Grid Adaptation

Large-scale access of photovoltaic, wind power, and energy storage systems leads to bidirectional power flow and fluctuating short-circuit current in the grid. New adaptive relays and wide-area protection technologies have become mainstream demands.

Intelligent Operation & Maintenance

Modern relays support remote fault recording, event query, and condition-based maintenance, reducing on-site inspection frequency and operation and maintenance costs for utilities.

Cybersecurity Enhancement

Digital relays with network communication functions face increasing cybersecurity risks. New generation utility relays integrate encryption authentication and access control functions to meet grid cybersecurity requirements.

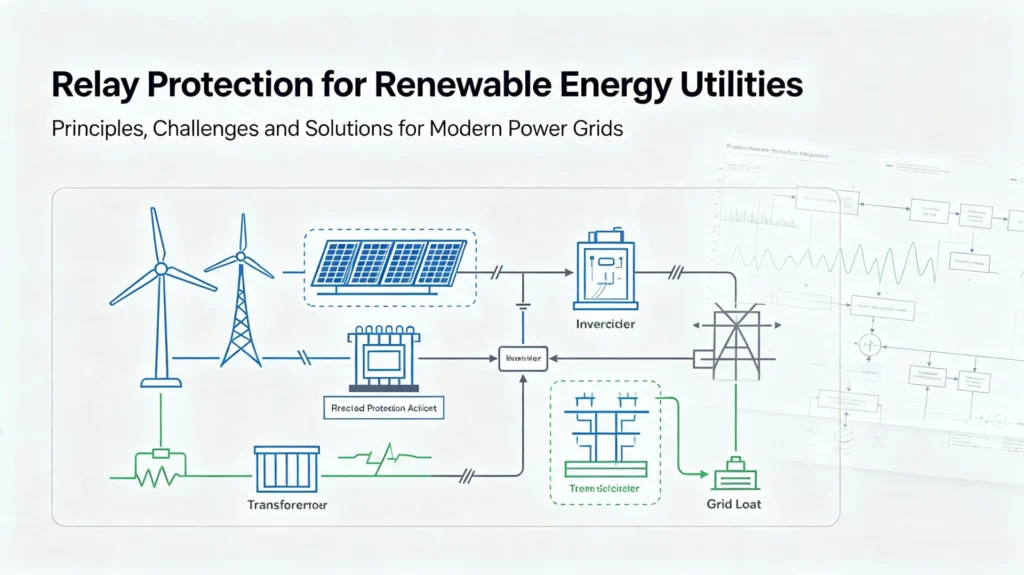

Relay Protection for Renewable Energy Utilities

Different physics, same labels.

ANSI codes for utilities still apply on inverter-based resources, which is why a solar collector substation scheme is recognisable to anyone who has read a conventional feeder scheme. What changes is the fault current contribution: an inverter delivers roughly its rated current into a fault, not the multiple an adjacent synchronous machine would, so directional elements and distance elements have to be set against a source that behaves differently second by second.

New energy power stations have unique grid-connection characteristics, requiring specialized relay protection schemes different from traditional thermal power plants.

Solar PV Power Plants

Core protection functions include inverter over/undervoltage protection, over/under frequency protection, anti-islanding protection, and reverse power protection, solving grid disconnection and power back-feeding risks caused by PV output fluctuation.

Wind Power Plants

Focus on generator transformer protection, grid-connection fault protection, and fault ride-through (FRT) function to ensure wind turbines can continuously operate during grid transient faults and meet grid code requirements.

Battery Energy Storage Systems (BESS)

Cover AC/DC bidirectional protection, PCS overcurrent/short-circuit protection, and battery cluster unbalance protection, adapting to frequent charge-discharge switching operating conditions of energy storage systems.

Testing & Maintenance Standards for Utility Relays

Test intervals are not optional.

A protective relay in electric utilities sits idle for months and then has to operate correctly in under three cycles. Nothing in normal service reveals whether its trip path is still intact, which is why the interval exists at all.

Regular testing and standardized maintenance are essential to ensure long-term stable operation of protective relays, which is a mandatory daily work for utility operation and maintenance teams.

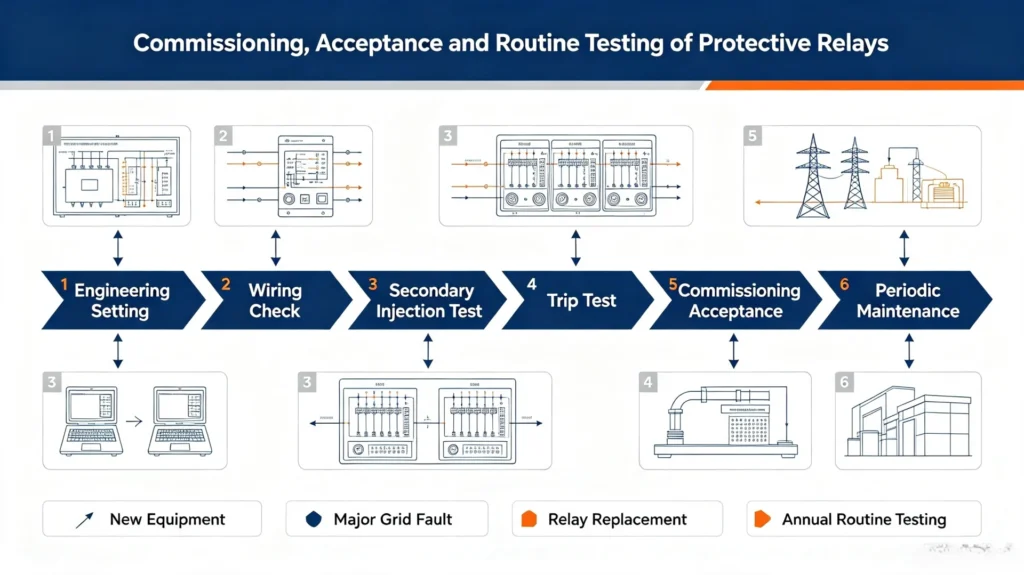

Core Testing Items

Including secondary injection testing, primary injection testing, trip circuit testing, communication function testing, setting verification, and fault record analysis. Secondary injection testing is the most conventional detection method to verify relay action accuracy.

Standard Maintenance Cycle

Commissioning full testing for new equipment, acceptance testing of protective relays, special inspection and testing after major grid faults, parameter verification and functional testing after relay replacement or setting modification; annual periodic routine testing for in-operation equipment.

Utility Relay Selection Criteria (EPC & Buyer Guide)

Protection deployment considerations tend to be split into two columns on a bid evaluation sheet, and they rarely carry equal weight over a 15 year service life.

Professional selection of protective relays needs to balance technical adaptability and long-term commercial value, suitable for EPC project procurement and owner equipment bidding standards. Substation bays are specified separately under substation protection relays.

Technical Selection Factors

• Match system voltage level, rated current, and short-circuit current parameters
• Complete required ANSI protection functions and protection zone quantity
• Compatible with on-site CT/PT ratio and secondary loop parameters
• Support standard communication protocols (IEC 61850/Modbus/DNP3)
• Complete fault recording and event storage functions
• Meet IEC 60255 EMC and environmental resistance standards

Commercial Selection Factors

• Low total cost of ownership (TCO), including purchase, maintenance, and replacement costs
• Stable product supply and short delivery lead time
• Complete after-sales service, local technical support and spare parts guarantee
• Long-term product iteration and compatibility assurance
• Formal warranty and professional commissioning guidance service

Current Industry Deployment Challenges

None of these are new.

Five constraints come up repeatedly in utility rollouts, and each one traces back to a protection deployment consideration that has to be settled before the relay is ordered rather than after.

Global electric utility protection relay deployment faces multiple practical challenges in grid upgrading and new energy integration:

• Aging legacy protection infrastructure with mixed old and new equipment, difficult for unified coordination
• Increased grid complexity caused by large-scale new energy access and bidirectional power flow
• Fluctuating short-circuit current levels, increasing protection setting and coordination difficulty
• Cybersecurity risks of digital relay network communication
• Global shortage of professional grid protection engineers, insufficient on-site technical support capacity

Practical Utility Substation Application Case

The bay count is what drives the schedule. Each incoming line, each transformer and each feeder position needs its own setting group, its own CT ratio check and its own trip matrix, so a substation with two transformers and eight feeders is closer to eleven commissioning exercises than to one. A protective relay in electric utilities is bought per position, and the protection deployment considerations that matter most on a project like this are the ones that repeat across every bay: whether the spare device carries the same firmware, whether the setting files are version-controlled, and whether the test sheets will still be readable by the next engineer to inherit the substation.

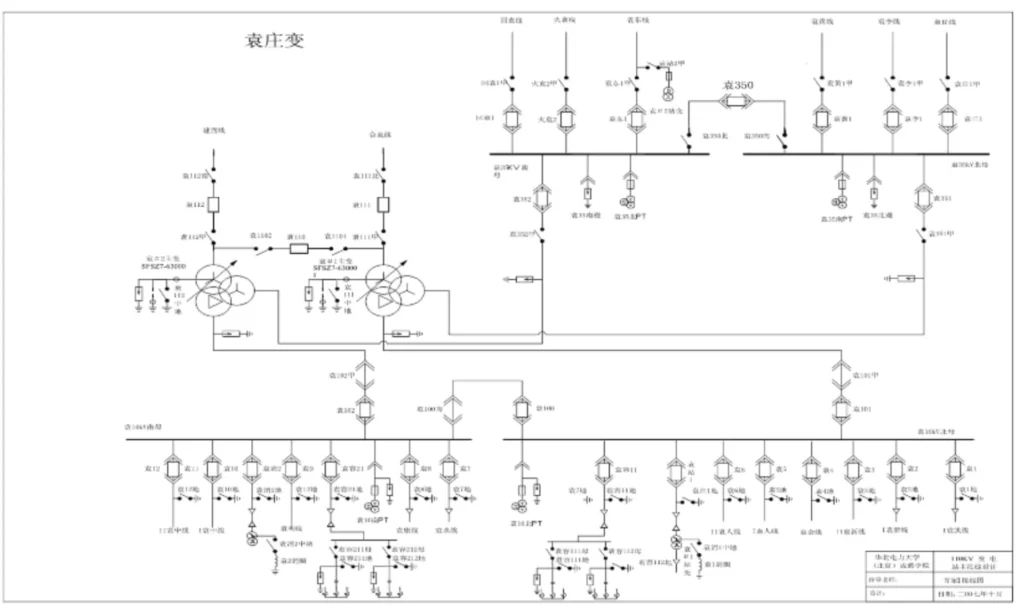

Project Overview: 110/33 kV urban utility substation, equipped with 110kV incoming transmission line, main power transformer, 33kV busbar, and multiple outgoing distribution feeders, serving urban industrial and residential loads.

Standard Protection Scheme:

• 110kV transmission line: ANSI 21 distance protection + ANSI 67 directional backup protection
• Main transformer: ANSI 87T differential primary protection + overcurrent/earth fault backup protection
• 33kV busbar: ANSI 87B busbar differential protection
• Distribution feeders: ANSI 50/51 + 50N/51N overcurrent and earth fault protection
• Global configuration: breaker failure protection and system backup protection

Commissioning & Testing: Completed CT/PT polarity verification, secondary injection function test, breaker trip linkage test, and SCADA communication debugging, fully compliant with IEC and local grid code standards.

Buyer Checklist for Protective Relay Procurement

Work through it before the purchase order, not after delivery. Every line that cannot be ticked becomes a site problem later, and protection deployment considerations are far cheaper to settle on paper than in a live substation.

For EPC contractors and utility owners, use this checklist to complete standardized procurement and inspection:

• [ ] Matched ANSI protection function configuration
• [ ] Compliance with system voltage, current and short-circuit level parameters
• [ ] Compatible with on-site CT/PT ratios
• [ ] Qualified protection coordination logic and parameter settings
• [ ] Full IEC 60255 & IEC 61850 standard compliance
• [ ] Complete communication protocol and IEC 61850 compatibility
• [ ] Sufficient digital input/output ports
• [ ] Complete fault recording and data storage function
• [ ] Qualified environmental and EMC resistance rating
• [ ] Professional commissioning and testing technical support
• [ ] Complete warranty, after-sales service and spare parts guarantee

FAQ

1.What is a protective relay in electric utilities?

It is a core grid safety device that monitors power system operating parameters, identifies faults, and controls circuit breakers to isolate faulty equipment, ensuring grid operational stability and equipment safety. A protective relay in electric utilities is specified by the ANSI functions it carries, not by its catalogue name. See what are protective relays for the underlying definition.

2.What is the difference between a protective relay and a circuit breaker?

Relays are judgment and command devices responsible for fault detection and trip signal output; circuit breakers are execution devices responsible for physical circuit breaking and isolation. The two work together to complete grid protection.

3.Why are numerical relays replacing electromechanical relays?

Numerical relays integrate multiple functions, support remote configuration and fault recording, have higher protection accuracy and stability, and adapt to digital substation and smart grid construction requirements, with lower long-term operation and maintenance costs.

4.What standards must utility protection relays comply with?

Core compliance standards include IEC 60255 (basic performance and EMC), IEC 61850 (digital communication), IEEE C37 series (protection logic), and the ANSI function number specification ANSI/IEEE C37.2-2022. The numbers themselves are tabulated in the ANSI protection relay codes chart.

5.How often should utility relays be tested?

Annual routine testing is required for in-operation equipment; full testing is mandatory after equipment commissioning, parameter modification, fault occurrence, and equipment replacement.

6.How protective relays work?

Protective relays continuously monitor current, voltage, and other electrical quantities from the power system.

1. Sensing & Measurement: They collect real-time electrical signals via current transformers (CT) and voltage transformers (VT).
2. Fault Judgement: Compare measured values against preset threshold settings (ANSI protection functions). When abnormal conditions (overcurrent, short-circuit, reverse power, loss-of-excitation etc.) are detected, the relay identifies a fault.
3. Trip Output: If fault criteria are satisfied, the relay sends a trip command to the circuit breaker.
4. Fault Isolation: The breaker opens quickly to disconnect the faulty equipment or line. This limits equipment damage and prevents fault spread across the grid.

7.What are the essential qualities of protective relays?

The four essential qualities of protective relays are selectivity, speed, sensitivity, and reliability. These core characteristics determine whether protection can operate correctly under power-system fault conditions.

Conclusion

A protective relay in electric utilities is judged on three things that have nothing to do with its feature list: whether its grading margins survive the next network change, whether its settings stay intact through a firmware update, and whether its event records can reconstruct what happened. Everything in this page, from the ANSI function allocation to the test intervals, exists to protect those three.

Demand keeps rising alongside digital substations and new-energy connections, and the technology is moving toward integrated, communicating devices. For utility operators and EPC contractors, standardized type selection, accurate coordination, strict testing and maintenance are the measures that actually reduce failure rates.

For utility operators and EPC contractors, standardized relay type selection, accurate protection coordination, strict testing and maintenance are key measures to reduce grid failure rates and improve power supply reliability. Modern numerical protective relays with IEC 61850 compatibility, complete protection functions, and reliable environmental adaptability have become the preferred solution for new construction and renovation projects of global power utilities.

Related Reading

The pages below go deeper on the individual pieces a utility setting study depends on: how device numbers are assigned, how grading margins are derived, and what a commissioning record has to contain before a bay is handed over to operations.

• What are protective relays: definition, types and operating principle
• ANSI protection relay codes: full device number chart and suffix rules
• Transmission line protection relays: distance, pilot and directional schemes
• Protective relay functions: ANSI 50, 51, 27, 59 and 87 explained
• Protective relaying principles: selectivity, sensitivity, speed and reliability
• Microprocessor based relay: working principle and self-supervision
• Backup protection relay: grading zones and time margins
• Protection relay setting calculation: method and worked steps
• Protection relay testing and commissioning: procedures and records

Reference & Technical Sources

Each source below is cited at its current edition, because a procurement document that names a standard without its year is unenforceable. Where a national adoption exists, the IEC edition is listed rather than the EN version, since the two publication dates differ by up to two years for the same technical content.

Source	What it covers	Type	Edition
ANSI/IEEE C37.2	Device function numbers and suffix letters used on every utility scheme drawing	IEEE standard	2022
IEC 60255-1	General requirements and type tests for measuring relays and protection equipment	IEC standard	2022
IEC 60255-26	Electromagnetic compatibility requirements	IEC standard	2023
IEC 60255-27	Product safety requirements up to 1000 V AC and 1500 V DC	IEC standard	2023
IEC 60255-151	Overcurrent and inverse-time functions behind ANSI 50 and 51	IEC standard	2009
IEC 60255-187-1	Differential protection functions behind the ANSI 87 series	IEC standard	2021
IEC 60255-121	Distance protection functions behind ANSI 21	IEC standard	2014
IEC 60255-127	Over and undervoltage functions behind ANSI 27 and 59	IEC standard	2010
IEC 60255-181	Frequency and ROCOF functions behind ANSI 81	IEC standard	2019
IEC 61850-8-1	Station bus mapping, GOOSE messaging and settings transfer	IEC standard	2011+AMD1:2020
IEEE C37.119	Breaker failure protection guide behind ANSI 50BF	IEEE guide	2025
IEEE C37.91	Protection of power transformers, ANSI 87T and backup stages	IEEE guide	2021
IEC 63522-36	Fire hazard test method for relay materials	IEC standard	2025
