Protective Relaying Principles: Selectivity, Sensitivity, Speed and Reliability

Protective relaying principles are the four tests every protection scheme has to pass: selectivity, sensitivity, speed and reliability. Selectivity decides which device trips. Sensitivity decides the smallest fault it can still see. Speed decides how much damage the fault does before it is cleared. Reliability splits into dependability, which is the willingness to trip, and security, which is the refusal to trip on anything else.

Protective Relaying Principles at a Glance

Eight consequences follow from the four tests, and they are what a setting sheet actually records:

• Selectivity: the device closest to the fault clears it, and healthy circuits stay energised.
• Sensitivity: pickup sits below the smallest fault current the scheme must clear, taken at minimum generation.
• Speed: clearing time follows the thermal and mechanical limits of the protected plant, not the capability of the relay.
• Dependability: the relay has to operate for a fault inside its zone, including one it can barely see.
• Security: the relay has to hold for through faults, motor starting current, transformer inrush and CT saturation.
• Grading: selectivity between two devices in series is bought with a time margin or a current margin, never with an assumption.
• Backup: a second device covers the failure of the first, at the cost of a slower trip and a wider outage.
• Trade-off: pushing speed usually costs security, and pushing sensitivity usually costs both.

A circuit breaker interrupts current. It has no way to tell which side of it the fault is on.

Protective relaying fundamentals apply the same four tests to a 6 kV motor feeder and to a 220 kV transmission line. What changes is the numbers: a feeder relay may clear in 0.3 s, a busbar differential in 30 ms, and a generator stator earth fault in several seconds because the fault current is deliberately limited to a few amps.

ANSI/IEEE C37.2-2022 assigns the device numbers used on single-line drawings, so 50 and 51 mean overcurrent and 87 means differential. IEC 60255-1:2022 sets common requirements for the relay itself, IEC 60255-151:2009 covers overcurrent function performance, and IEC 61869-2:2012 covers the current transformers every one of those measurements depends on.

Applied protective relaying forms the primary safety backbone for modern power systems, industrial plants, renewable sites and utility substations. A protective relay continuously monitors electrical operating conditions, detects faults or abnormal states, and issues trip signals to circuit breakers to isolate faulty equipment quickly.

The sections below take each test in turn, then grading, then the failure modes that appear when one test is pushed past the others.

Four tests. One setting sheet.

Fundamental Requirements of Protective Relays

• Selectivity: Isolate only the faulted section, keep healthy circuits online
• Reliability: Dependability (operate when fault occurs) and security (avoid nuisance tripping)
• Sensitivity: Detect low-magnitude fault currents
• Speed: Clear faults within milliseconds to limit equipment damage and preserve system stability

Without properly engineered protective relaying, short-circuits, ground faults and equipment failures can lead to transformer burnout, generator damage, extended plant outages, and safety hazards for site personnel. For EPC contractors and asset owners, correct protection configuration directly reduces total-cost-of-ownership by lowering unplanned downtime and asset replacement costs.

Every entry on a setting sheet is an answer to one of the four tests. Protective relaying principles are what make the trade-offs visible during design, instead of after the first unwanted trip on site.

Protective Relaying Principles: The Four Tests

Protective relaying fundamentals reduce to four questions, and the answer to each one constrains the next. Read them in this order: what must trip, what must hold, how fast, and how sure.

Fault Detection

Relays acquire real-time measurements from current transformers (CTs) and voltage transformers (VTs/PTs). Measured quantities include phase current, residual current, phase-to-phase voltage, frequency, impedance, and active/reverse power. When measured values deviate from pre-defined thresholds, internal protection algorithms evaluate whether a genuine fault exists.

Fault Classification

Power system faults fall into two major groups: short-circuit faults and abnormal operating conditions.

• Phase-to-phase faults
• Phase-to-ground faults
• Three-phase short-circuits (most severe fault event)
• Open-circuit conditions, overload, under-frequency, reverse power flow

Selectivity: Primary and Backup Protection

Primary protection: First-line protection for each piece of equipment, operates at fastest time delay for faults within its protection zone. Backup protection: Secondary protection for adjacent zones, activates if primary protection fails to trip. Backup protection prevents total system collapse caused by protection device failure.

Two devices, one fault, one trip.

Reliability: Dependability vs Security

• Dependability: Relay must trip for in-zone faults.
• Security: Relay must restrain from tripping for external faults or normal transients (motor starting, transformer inrush).

Poor balance between the two creates two common field failures: failure-to-trip and unwanted nuisance tripping.

Both limits come from the same number.

Sensitivity and Operating Speed

Sensitivity defines the minimum fault magnitude that can trigger reliable operation. Operating speed determines how fast fault energy is removed. High-speed clearance matters most for generators, busbars and large-capacity industrial loads, where thermal and mechanical damage cannot be undone.

Relay selectivity and sensitivity are set in the same place: the pickup. Lower it to catch a remote fault and the relay starts reaching into the next zone. Raise it to stay selective and the far end of this zone goes unprotected. Minimum fault current, not maximum, sets the limit.

Six steps, in this order.

How Does a Protection Relay Work?

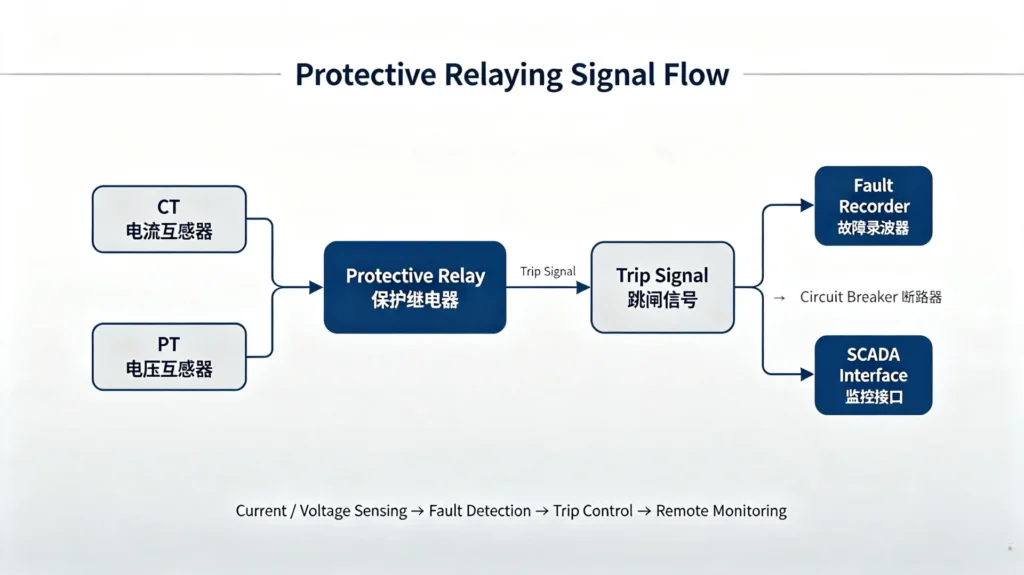

The sequence below is the same on an electromechanical relay and on a numerical one. Only the sampling rate and the algorithm change. Each stage in it carries one of the four tests: acquisition sets the floor on sensitivity, the comparison against pickup is where selectivity is won or lost, and the timing stage is where protection grading principles turn one device’s curve into a coordinated system.

The signal-to-trip workflow follows a fixed practical sequence:

1. CT / VT signal acquisition: Instrument transformers step down high primary current and voltage to secondary-level signals safe for relay hardware.
2. Signal conditioning & measurement: Analog signals are sampled and converted into digital values.
3. Protection algorithm execution: Compare measured values against configured pickup, time-delay and characteristic curves.
4. Trip command output: If fault criteria are satisfied, dry-contact or binary output sends trip signal to circuit breaker.
5. Fault recording & event logging: Capture fault waveforms, event timestamps, SOE (Sequence-of-Events) data for post-fault analysis.
6. Substation communication: Upload fault records, alarms and real-time status to SCADA or IEC-61850-based substation automation systems.

Types of Electrical Protective Relays

Below table summarizes widely-used protection functions, ANSI device numbers and typical application scope.

Protection Function	ANSI Code	Typical Application
Instantaneous / Time-delayed Overcurrent	50 / 51	Feeders, motors, transformer backup
Earth / Ground Fault Protection	50N/51N, 50G/51G	Feeders, transformers, industrial earthing systems
Differential Protection	87	Transformers, generators, busbars
Distance Protection	21	High-voltage transmission lines
Directional Overcurrent	67 / 67N	Meshed distribution & interconnected networks
Undervoltage / Overvoltage	27 / 59	Generators, motors, busbar voltage supervision
Under- / Over-frequency	81U / 81O	Generator islanding, load-shedding schemes
Reverse Power Protection	32	Generator motoring protection, distributed generation anti-islanding

Overcurrent Protection Relay (ANSI 50 / 51)

Time-delayed (51) overcurrent responds to sustained overload and moderate short-circuit currents. Instantaneous overcurrent (50) provides fast tripping for high-magnitude short-circuits. Widely deployed for distribution feeders, motor and transformer backup protection.

Earth Fault and Ground Fault Protection (ANSI 50N/51N, 50G/51G)

Detects residual ground fault current. Critical for solidly-grounded and resistance-grounded systems. Earth fault settings are normally lower than phase-fault pickup values to detect low-level ground faults that phase overcurrent cannot capture.

Differential Protection Relay (ANSI 87)

Compares incoming and outgoing current across protected equipment. Any current imbalance indicates internal fault. Offers high-speed primary protection for transformers, generators and busbars. Requires correct CT polarity matching on both sides of protected zone.

Distance Protection Relay (ANSI 21)

Measures impedance between relay location and fault point. Divided into Zone 1, Zone 2 and Zone 3 stepped protection zones. Standard for transmission-line protection, immune to wide-ranging source-impedance variations.

Directional Overcurrent Protection (ANSI 67 / 67N)

Only operates for fault current flowing in a predefined direction. Essential for loop-configured networks and multi-source systems to avoid non-selective tripping.

Under- / Overvoltage Protection (ANSI 27 / 59)

Monitors abnormal voltage excursions. Applied for generator loss-of-field detection, motor stall prevention and busbar supervision.

Under- / Overfrequency Protection (ANSI 81U / 81O)

Responds to frequency drift caused by generation-load imbalance. Used for generator protection and automatic load-shedding logic.

Small currents, long delays.

Reverse Power Protection (ANSI 32)

Detects power flowing backward into prime-movers. Protects generators from motoring condition, and used for anti-reverse-power in solar-PV and diesel-generator hybrid sites.

Motor Protection Relaying

Industrial medium-voltage motors require multi-function protection suite: overload, locked-rotor detection, phase-failure protection, thermal overload modelling, and starting-time supervision. Mis-configured motor protection is a top source of unplanned plant downtime.

Gas, temperature and pressure arrive as contacts, not as current.

Transformer Protection Relaying

Transformer protection scope includes differential main protection, overcurrent backup, restricted earth fault,Buchholz gas alarm/trip for oil-filled units, over-temperature and over-fluxing protection.

How the Four Tests Apply to Each Protected Object

Protective relaying principles do not change with the object, but protective relaying fundamentals get applied in a different order each time. A transformer differential has to be secure against inrush. A motor feeder has to stay blind to starting current. A busbar has to be fast, because the arc energy is already there.

Generator Protection

Generator-unit protection covers stator phase-to-phase and earth faults, rotor excitation faults, reverse-power motoring protection, loss-of-excitation, and generator-transformer unit combined protection. Setting complexity increases for synchronous generators and renewable distributed generation assets. The functions involved are listed under generator protection relays.

Transformer Protection

Both power-transformer and distribution-transformer protection rely on differential primary protection plus time-graded backup overcurrent and earth-fault functions. Oil-filled transformers integrate Buchholz alarm and trip signals into numerical relay logic.

Transmission Line Protection

Transmission-line protection mainly uses distance protection (ANSI 21), directional overcurrent, pilot protection and auto-reclosing functions. Auto-reclosing restores service for transient overhead-line faults. Scheme choices are covered in transmission line protection relays.

Distribution Feeder Protection

Distribution feeders use overcurrent and earth-fault protection with time-current coordination between upstream and downstream devices. Feeder automation logic enables fault-section isolation for smart-distribution networks.

Motor and Industrial-Equipment Protection

Heavy-industry assets: large pumps, compressors, crushers, process motors in mining, oil-gas, cement and manufacturing plants. Protection must tolerate normal motor starting inrush current while responding to genuine fault conditions.

Speed is the whole point here.

Busbar Protection

Busbar faults represent high-risk failure events. Bus differential protection delivers high-speed fault clearance to limit arc-flash damage across the whole substation.

Margins first. Curves second.

Protection Grading: Coordination and Selectivity

Protection grading principles are where protective relaying principles stop being definitions and become arithmetic. A grading margin is the gap, in current or in time, between the device that should trip and the device that must wait. Set one at every boundary in the scheme: feeder to transformer, transformer to incomer, incomer to the upstream source.

Relay selectivity and sensitivity sit at the two ends of that margin. The downstream pickup has to fall below the smallest fault it must clear; the upstream curve has to clear the same fault later than the downstream one does.

Relay coordination is the process of setting pickup values and time-delays so that the relay closest to fault trips first, and upstream backup relays trip only if downstream protection fails.

Key practical parameters for coordination work:

• Pickup current: Threshold current value that activates relay function
• Time Multiplier Setting (TMS): Adjusts the whole time-current curve shift
• Instantaneous trip threshold: Defines high-current fast-trip boundary
• Time-current characteristic curves: Inverse-definite-minimum-time (IDMT), definite-time, instantaneous.

Common real-world coordination challenges: short-circuit level variation across operating modes, generator contribution to fault currents, and CT saturation under heavy fault conditions.

Protective Relay Settings

Correct settings depend on site-specific system data; generic default values must never be directly deployed for project commissioning.

Major setting categories:

1. Current pickup setting
2. Time-delay setting
3. Instantaneous trip threshold
4. Differential protection slope setting
5. Voltage and frequency threshold settings
6. Protection zone boundaries

Practical Factors for Calculating Relay Settings

When performing setting calculations, engineers must collect these site inputs:

• Maximum and minimum load current
• Minimum and maximum short-circuit fault current
• CT ratio, CT accuracy class and burden
• System-earthing configuration
• Transformer impedance and rated power
• Motor starting inrush characteristics

Improper setting calculation is one of the leading root-causes for protection mis-operation on EPC projects.

Protective Relay Standards and ANSI Device Numbers

Two major standard frameworks govern modern protective relays: the ANSI/IEEE device-number system, defining protective relay code numbers widely used in North-American-style projects, and the IEC 60255 series international standards for measuring relays and protection equipment.

• ANSI / IEEE C37.2: Standard for device function numbers for power-system protection devices
• IEC 60255-1: General requirements for measuring relays and protection equipment
• IEC 60255-26: EMC requirements for protection relays
• IEC 61850: Communication standard for substation automation

Refer back to Table-1 for the most-frequently-applied ANSI function codes.

Numerical Protection Relays

The move to numerical hardware shifted the burden from the panel wiring to the setting file.

Electromechanical relays have been largely replaced by microprocessor-based numerical multifunction relays for new-build substations and plant projects.

Core features of numerical relays:

• Multiple protection functions integrated inside one hardware unit
• Built-in fault recorder and sequence-of-events logging
• Support for Modbus, DNP3, IEC 61850 MMS / GOOSE communication
• Remote setting read-write access
• Self-diagnostic hardware monitoring

Advantages vs older electromechanical relays: smaller panel footprint, fewer secondary-wiring points, richer fault-diagnostic data, and easier remote integration with SCADA systems.

Protective Relay Testing and Commissioning

Correct commissioning testing verifies hardware, logic, wiring and setting before energisation. In-service testing mitigates hidden risks from wiring errors, CT polarity reversal, or incorrect parameter download. Test procedures and intervals are set out in relay protection training and testing.

Secondary Injection Testing

Standard site commissioning test: inject calibrated secondary-level current and voltage signals into relay terminals, verify pickup thresholds, time-delays and binary-output trip response.

Start at the relay. Finish at the breaker.

Primary Injection Testing

Inject high primary-side current onto instrument-transformer primary windings; verifies full CT-to-relay chain performance. Used for critical high-voltage installations.

Trip-circuit testing

Validate continuity of trip-coil circuit and circuit-breaker actual tripping response.

Common Protective Relaying Problems in Field Projects

Most of these trace back to one test being set without the other three in view. Relay selectivity and sensitivity are the pair that breaks first: a pickup lowered far enough to see a remote fault usually reaches into the next zone as well, and the nuisance trip that follows gets reported as a hardware fault.

These are frequently-reported issues observed across EPC and industrial-plant projects:

1. Incorrect relay settings copied from generic templates without site short-circuit study
2. CT saturation under high-magnitude fault events distorting measured values
3. Reversed CT polarity for differential protection circuits
4. Poor time-current coordination leading to nuisance tripping or over-tripping
5. Nuisance tripping triggered by motor-starting or transformer-inrush transients
6. Failure-to-trip because of loose wiring terminals or blown trip-circuit fuses
7. Communication drop-out between numerical relays and SCADA
8. Missing backup-protection layers in compact-substation designs

How to Select the Right Protection Relay

Protective relaying principles are worth restating before the checklist: name what must trip, what must hold, how fast, and how sure. The first three answers decide the hardware. The rest decide the settings.

EPC and project-owner engineers should evaluate this checklist before selecting protective-relay hardware for tender and procurement:

• System rated voltage and frequency
• Type of primary equipment being protected (transformer, motor, feeder, generator, busbar)
• Rated operating current
• System short-circuit level
• Mandatory protection-function list derived from protection-philosophy document
• CT / VT secondary-rating and burden requirements
• Communication protocol requirements (IEC 61850, Modbus, DNP3)
• Environmental operating conditions: temperature range, humidity, EMC environment
• Compliance requirements: IEC 60255, ANSI/IEEE standards
• Site testing and long-term spare-part support availability

Practical tip: Over-specifying unnecessary protection functions increases hardware cost and configuration complexity; under-specifying creates safety risks. Align hardware selection with project-specific protection philosophy documents.

Protective Relaying in Modern Smart Grids

Digital substations change the wiring. They do not change the four tests.

Digital-substation technology reshapes protective-relaying workflows:

• IEC 61850 process-bus replaces conventional hard-wired secondary analog circuits
• GOOSE messages enable fast peer-to-peer inter-relay logic
• Remote monitoring and condition-based maintenance reduces site-visit frequency
• Wide-area protection schemes coordinate relay actions across multiple substations
• Deep integration with SCADA and plant-control-system platforms

For renewable-energy sites (solar-PV, wind-farms), protective relays must handle bidirectional power flow and variable-generation fault characteristics, including reverse-power protection (ANSI 32) and anti-islanding logic.

Protective Relaying vs Circuit-Breaker Protection

Two devices, one job. The failure of either one leaves the fault on the system.

The two roles get conflated on specifications, and the difference shows up when a trip fails:

• Protective relay: Decision-making device. It measures system status, evaluates fault conditions and issues trip commands. It does not interrupt fault current itself.
• Circuit-breaker: Power-interruption hardware. It physically opens primary-circuit contacts to clear fault current upon receiving trip-signal from relay.

Both components are required for complete fault-clearing chains, and no breaker rating stands in for protective-relay intelligence. A breaker that opens in 40 ms still clears nothing until something has told it which fault to clear, and deciding that is the part the relay owns.

Where One Test Gives Way to Another

No scheme satisfies all four tests at once, and protective relaying principles are how the compromise gets written down. Data centres pay for selectivity and accept slower clearance. Transmission operators pay for speed and accept a wider trip zone. Heavy industry pays for security, because a nuisance trip on a process line costs more than the fault it was guarding against.

Protection grading principles survive all three, but the margin moves: 0.3 s on a distribution feeder, 0.25 s where two relays share a curve family, and one CT kneepoint check wherever fault current is high enough to saturate.

Different industries carry distinct protection priorities:

• Utility power systems & substations: Transmission-line distance protection, bus differential, generator-unit protection
• Power-generation plants: Synchronous generator protection, auxiliary-motor protection
• Renewable-energy plants (Solar PV / Wind): Reverse-power protection, anti-islanding, feeder protection
• Manufacturing & heavy-industry: Large-motor protection, transformer and MCC-feeder protection
• Oil & gas / mining: Rugged environmental rating, arc-flash mitigation, high-availability selectivity
• Data-centers: Zero-downtime selectivity requirements for redundant-supply systems

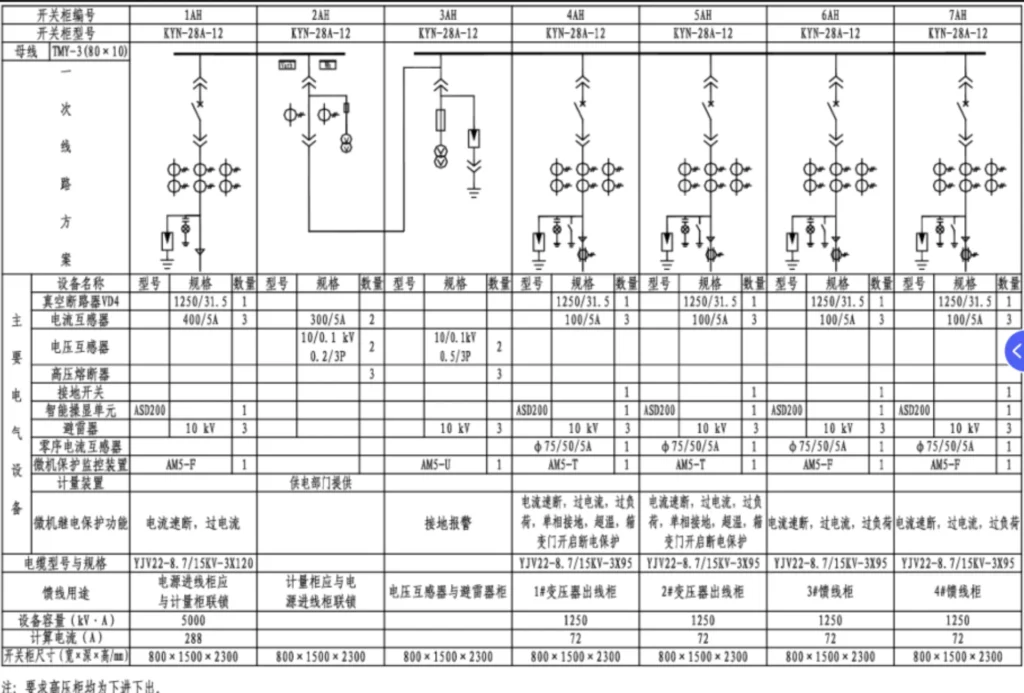

Practical Example: Protective Relaying for a Medium-Voltage Substation

One substation, five zones, and a grading margin at every boundary between them.

A typical medium-voltage substation includes incoming feeders, power transformer, busbars and multiple outgoing feeders.

Protection allocation overview:

1. Incoming feeder: Overcurrent, earth-fault, directional-overcurrent where applicable
2. Power transformer: ANSI 87T differential main protection + overcurrent / REF backup protection
3. Busbar: Bus differential protection for high-speed bus-fault clearance
4. Outgoing feeders: 50/51 overcurrent and 50N/51N ground-fault protection
5. Global backup protection: Time-graded upstream backup protection for all zones

Time-current coordination study ensures that faults on outgoing feeders trip feeder-relays first, without tripping transformer or incoming-feeder protection.

Frequently Asked Questions About Protective Relaying

What is the basic principle of protective relaying?

Protective relaying principles come down to four tests applied to what the relay measures: selectivity, sensitivity, speed and reliability. A relay reads current, voltage, impedance and power, compares them with calculated thresholds, and issues a trip command when the balance of those four tests says the fault lies inside its own zone.

What are the main types of protection relays?

Major categories of the electrical protective relay include overcurrent, earth-fault, differential, distance, directional-overcurrent, voltage-frequency supervision, reverse-power, and dedicated motor / transformer protection relays. Modern numerical electrical protective relay integrates multiple functions within one unit.

What is the difference between primary and backup protection?

Primary protection is the fastest-acting main protection for a given equipment zone. Backup protection operates when primary protection fails, to avoid widespread blackouts.

How does a protection relay detect a fault?

Relays sample secondary-side signals from CT and VT instrument transformers, compare measured values against setting thresholds, and execute internal protection algorithms to distinguish genuine faults from normal operating transients.

What is relay coordination?

Relay coordination means tuning pickup and time-delay settings so that the relay nearest to fault trips first, while upstream backup relays trip only as a fallback. This guarantees selectivity and avoids cascading outages.

What are ANSI protection relay numbers?

ANSI / IEEE C37.2 defines standard numeric device codes for each protection function (e.g. 51 time-overcurrent, 87 differential, 32 reverse-power). These codes simplify documentation and cross-vendor engineering communication.

What is the difference between numerical and electromechanical relays?

Electromechanical protective relays use moving mechanical components for fault detection. Numerical relays use microprocessors, deliver multi-function protection, fault-recording, digital-communication and self-diagnostic features, and are the standard for modern projects.

How often should protection relays be tested?

Commissioning tests are mandatory before energisation. Periodic in-service testing intervals follow local utility codes or owner-specification; typical industrial practice is 2-5-year secondary-injection test cycles.

What standards apply to protection relays?

Primary international standards are IEC 60255 series for hardware and performance; ANSI/IEEE C37.2 for device-numbering; IEC 61850 for substation communication.

How do you select a protection relay for a substation?

Start from project protection-philosophy document and short-circuit-study results. Define required protection functions, CT/VT parameters, communication needs, environmental rating and standard compliance, then match hardware specifications.

Where is protective relaying heading next?

Three changes are already visible on live projects: process-bus sampling replacing copper secondaries, adaptive setting groups that follow the network configuration, and disturbance records being pulled remotely instead of downloaded on site. None of them changes which device has to trip first.

Conclusion

Protective relaying principles are not a product feature. Reliable power-system protection comes from three things working together: a written statement of the four tests for this particular site, setting calculation based on real short-circuit data, and commissioning that proves the margins before energisation.

Numerical multifunction protective relays deliver powerful capabilities, yet mis-configuration or poor coordination can negate hardware performance. For EPC contractors and asset owners, investing in quality protection-engineering design and proper commissioning lowers long-term operational risk, reduces costly unplanned downtime and protects high-value generation and industrial assets.

When you are specifying protection for your next substation, heavy-industry or renewable-energy project, work with experienced relay-engineering resources to align hardware selection, protection philosophy and setting calculations to your exact site conditions.

Related Reading

Protective relaying principles connect to three directions, and the pages below take each one further. Start with the definition if the device numbers are new to you, and with the grading pages if you already hold a setting sheet that needs checking. Either route ends in the same place: a pickup, a time delay, and the reason recorded for both.

• What are protective relays: the hardware generations and function types behind the device numbers.
• Backup protection relay: how the second device is graded behind the first.
• Protection relay setting calculation: the inputs and steps behind each pickup and time delay.
• Differential protection: the most selective function, and the one most exposed to CT error.
• Distance protection: grading by impedance instead of by current.
• Directional overcurrent: selectivity on networks with more than one source.
• Transmission line protection relays: where speed is bought at the cost of zone reach.
• Motor protection: where the thermal limit, not the fault current, sets the speed requirement.
• Transformer protection: inrush and CT mismatch as the two limits on sensitivity.

Technical References & Source Documents

Protective relaying principles are only enforceable when the standard behind them is named. These are the documents a setting sheet is checked against on overseas projects; edition years move, so confirm the current one before quoting a number.

Source	What it covers	Type	Edition
ANSI/IEEE C37.2	Device function numbers and acronyms used on single-line drawings	IEEE Standard	2022
IEC 60255-1	Common requirements for measuring relays and protection equipment	International Standard	2022
IEC 60255-151	Functional requirements for over/under current protection, the 50 and 51 side	International Standard	2009
IEC 60255-187-1	Functional requirements for differential protection: 87 for transformers, generators, motors and busbars	International Standard	2021
IEC 61869-2	Current transformers: accuracy class, rated burden and saturation behaviour	International Standard	2012
IEC 60909-0	Short-circuit current calculation, the input behind every sensitivity check	International Standard	2016
IEC 60255-26	Electromagnetic compatibility requirements, the immunity side of security	International Standard	2023
IEC 61850-8-1	Station bus communication mapped to MMS and GOOSE	International Standard	2011+AMD1:2020
IEEE 242	Protection and coordination of industrial and commercial power systems, the Buff Book	IEEE Recommended Practice	2001, confirm current edition

Older references still in circulation cite IEC 60255-1:2009 and IEEE C37.2-2008. Both have been superseded.
