Voltage Injection Rotor Earth Fault Protection: Working Principle and Applications

Voltage injection rotor earth fault protection detects insulation faults between a synchronous generator’s rotor field winding and ground by applying a controlled test voltage to the rotor circuit and measuring the resulting response. The 64R relay alarms or trips when rotor-to-ground resistance falls below the set threshold.

At a Glance

Eight things decide whether a voltage injection scheme works on a given machine:

• ANSI 64R is the device number for rotor earth fault detection. It covers the field winding, not the stator.
• One fault is silent. A single rotor earth fault carries no fault current, so overcurrent and stator differential functions never see it.
• The second fault is the destructive one. It shorts part of the field winding and drives vibration, shaft stress and forced outage.
• Injection is active. The relay supplies its own AC, low-frequency or DC test signal, so it reads at standstill as well as on load.
• Ping-pong is passive. It switches a resistor across the field and reads the voltage swing, which collapses at low field voltage.
• Coupling sets sensitivity. The injection source, coupling impedance and filter together fix the lowest resistance you can resolve.
• Two thresholds, two outputs. Alarm and trip must leave the relay on separate contacts, never one shared output.
• Commissioning needs a resistor box. A shorting link proves nothing about the alarm threshold.

Ping-pong rotor earth fault protection switches a measuring resistor across the field circuit and reads the voltage swing it produces. It needs no injection source, but it only reads while the machine is excited and loses accuracy as field voltage drops. An injection scheme drives the circuit from its own source, so it reads at standstill and at full load with the same sensitivity. That difference decides most method choices on peak-shaving and frequent start-stop units.

The function is designated 64R in ANSI/IEEE C37.2-2022. Generator protection practice for applying it sits in IEEE C37.102-2023, and insulation resistance testing of the winding before energisation follows IEEE 43-2013.

This guide covers the working principle, the three injection variants, how the relay separates a real earth fault from excitation ripple, what to check before you enquire, and the commissioning sequence. It also covers what rotor insulation monitoring can and cannot tell you on a brushless machine.

What Is Voltage Injection Rotor Earth Fault Protection?

Definition: Voltage injection rotor earth fault protection is a standardized generator 64R protection method that applies low-level controllable AC, low-frequency AC, or customized test voltage to the generator rotor field circuit. The protection relay analyzes leakage current, phase deviation, and rotor-to-ground impedance changes to identify insulation degradation and rotor earth faults, and triggers alarm or trip actions based on preset thresholds.

Unlike passive protection schemes that rely on fault-generated electrical signals, this active injection method realizes continuous online monitoring regardless of generator load status, which solves the blind spot of traditional rotor protection in light-load or no-load operating conditions.

Core Objects of Voltage Injection Protection

To clarify the working boundary of the protection scheme, it is necessary to define the core monitored circuit components:

• Rotor field winding: The excitation winding mounted on the generator rotor, responsible for generating the main magnetic field; the core monitoring object of 64R protection.
• Rotor circuit: A closed circuit composed of field winding, excitation output loop, rotor shaft, and insulation medium, operating in an ungrounded state during normal operation.
• Insulation medium: Insulating materials between rotor winding, shaft, and stator core, which determines the rotor-to-ground insulation resistance value.
• Ground reference point: The generator’s unified system ground, serving as the return path for the injection test signal.

What Does “Voltage Injection” Mean?

Voltage injection refers to the active injection of a stable, low-amplitude test voltage signal into the floating rotor ungrounded circuit. The complete signal transmission path is fixed and standardized:

Injection Unit → Rotor Field Winding → Insulation Medium → Ground Reference Point → Detection Circuit → Protection Relay Measurement Unit

The injected test signal builds a stable measurable electrical loop. When the rotor insulation is intact, the loop only generates tiny leakage current; when insulation aging, damage, or ground faults occur, the loop impedance drops sharply, and the leakage current rises, which is what gives the relay a number to work with.

Core Monitored Parameters and Purposes

The protection system judges the rotor insulation status through multi-dimensional parameter fusion, avoiding misjudgment caused by single data deviation:

Monitored Parameter	Core Purpose
Injected test voltage	Provides stable standardized detection signal, ensures measurement consistency
Injection return current	Reflects leakage path changes, directly indicates insulation abnormality
Rotor-to-ground impedance	Quantifies insulation aging degree and fault severity
Fault resistance value	Distinguishes slight insulation degradation and hard ground faults
Alarm/trip status	Outputs protection actions to avoid secondary generator damage

Why Is Rotor Earth Fault Protection Necessary?

Most generator mechanical and electrical failures caused by rotor grounding are progressive. Timely 64R protection monitoring is the key to eliminating hidden dangers in advance and avoiding major shutdown losses.

The field winding floats. Nothing in the stator protection set can see a fault on it, because no fault current flows. A 64R function is the only thing watching that circuit. Leave it out and the first warning you get is vibration on the shaft.

Rotor Circuit Is Naturally Ungrounded

The generator rotor excitation circuit adopts a floating ungrounded design to prevent grounding circulation and ensure stable excitation output. This structural feature makes the rotor circuit lack a fixed ground reference, so traditional current-based protection cannot capture weak fault signals.

Single Ground Fault Produces No Obvious Fault Current

A single-point rotor earth fault only forms a single conductive connection between the winding and the ground, with no closed short-circuit loop. The fault current is extremely small, which cannot trigger conventional overcurrent or overvoltage protection. The generator can still operate normally on the surface, resulting in long-term hidden faults.

Secondary Ground Fault Causes Irreversible Damage

After the first ground fault occurs, the local insulation performance of the rotor is completely destroyed, and the insulation margin is greatly reduced. Under the impact of unit vibration, temperature rise, and electromagnetic force during long-term operation, a second ground fault is highly likely to occur at another position of the winding.

Two-point grounding will short-circuit part of the rotor field winding, causing asymmetric magnetic field distribution. The direct consequences include rotor unbalanced vibration, local overheating of the winding, insulation burnout, excitation system instability, and even rotor shaft magnetization, which will force the unit to shut down and bring huge economic losses to the power plant.

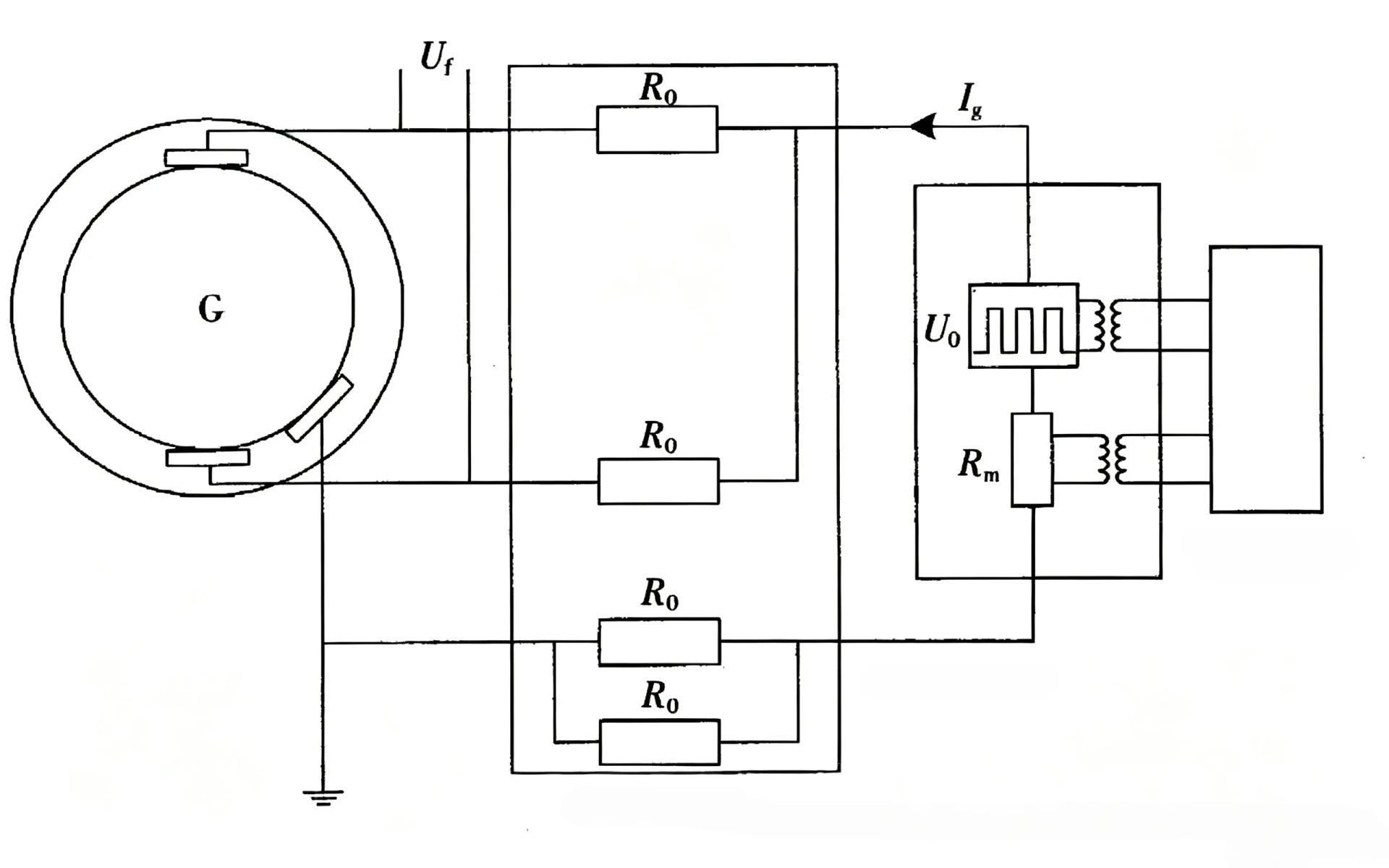

Working Principle of Voltage Injection Rotor Earth Fault Protection

The core logic runs in four stages: inject a known signal, capture the loop response, convert that response into a resistance, then compare it against the two thresholds. Every digital 64R relay on the market follows the same four stages, so the five steps below transfer directly to whatever you buy.

Step 1: Generate Standardized Injection Signal

The relay’s internal injection module generates a stable low-amplitude test signal. According to different product designs and excitation system matching requirements, the signal types include conventional AC, low-frequency AC, and optimized DC composite signals. The injection voltage amplitude and frequency are fixed and controllable, avoiding interference with the generator’s normal excitation signal. The specific parameters are determined by the relay model and unit operating conditions.

Step 2: Couple Signal into Rotor Circuit

The test signal is coupled to the generator rotor excitation loop through an isolation coupling circuit. The signal covers the entire field winding, insulation medium, and rotor shaft system, forming a complete detection loop with the system ground.

Step 3: Monitor Return Leakage Response

In healthy operating conditions, the rotor insulation resistance is high, and only microampere-level tiny leakage current exists in the loop, with stable phase and amplitude. When insulation aging or grounding occurs, the loop impedance decreases, and the leakage current rises, with a clear phase deviation.

Step 4: Calculate Rotor-to-Ground Insulation Status

The relay calculates the real-time insulation resistance based on the basic formula R≈V/I. Different from simple manual calculation, industrial digital relays adopt multi-algorithm fusion processing, combining signal filtering, amplitude calibration, phase compensation, and interference suppression algorithms to eliminate the influence of generator operating noise and ensure measurement accuracy.

Step 5: Compare with Protection Thresholds and Execute Actions

The system compares the calculated insulation resistance and fault parameters with factory and user-set thresholds:

• Normal status: Insulation resistance is higher than the warning threshold, the system continues real-time monitoring without outputting any signal.
• Early insulation deterioration: Parameters reach the warning threshold, the relay outputs an alarm signal to remind maintenance personnel of inspection.
• Serious fault: Parameters reach the trip threshold, the relay executes trip logic to protect the generator equipment.

How Does a 64R Relay Detect Rotor Earth Faults?

A 64R relay for rotor protection does three jobs at once: it sources the test signal, it measures the return, and it holds the two threshold decisions. The sections below follow that order.

The full function list, including how 64R sits alongside 64G, 87G and 59G on the same machine, is set out in our guide to the 64R protection relay.

Definition of ANSI 64R Protection

In accordance with ANSI/IEEE standard device numbering rules, 64R refers exclusively to Rotor Earth Fault Protection, which is dedicated to monitoring insulation faults of generator rotor field windings. It is one of the mandatory protection configurations for large and medium-sized synchronous generators, independent of stator grounding protection (64S).

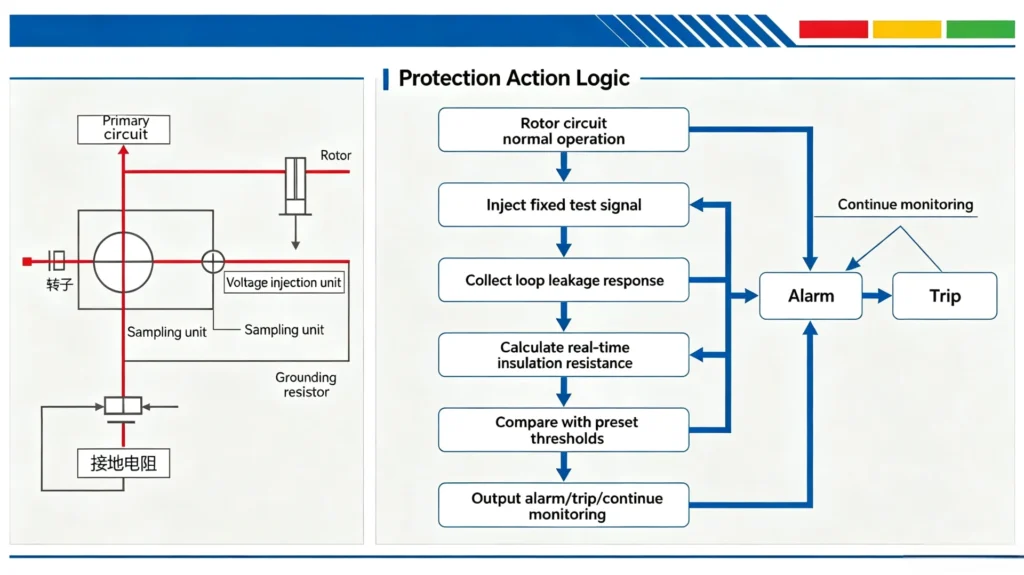

64R Protection Core Logic Flow

The complete working logic of the voltage injection-based 64R relay is standardized and repeatable:

1. Rotor circuit in normal operation.
2. Inject the fixed test signal.
3. Collect the loop leakage response.
4. Calculate real-time insulation resistance.
5. Compare against the alarm and trip thresholds.
6. Output alarm, trip, or continue monitoring.

Classification of Voltage Injection Detection Methods

According to different injection signal types and technical principles, mainstream voltage injection rotor earth fault protection is divided into three categories, with different application scenarios and technical advantages.

The three variants differ in one respect: what you inject. That choice sets the sensitivity floor, the wiring, and whether the scheme works at all on a brushless machine. Choose on the excitation type first, not on price.

Conventional AC Voltage Injection

This scheme injects standard power-frequency AC signals, with simple circuit design and stable operation. It supports full-cycle online continuous monitoring, suitable for most conventional turbo-generators and hydro-generators. It is the most widely used 64R protection scheme in traditional power plants.

Low-Frequency AC Injection

Low-frequency signals are adopted to avoid frequency superposition and electromagnetic interference with the generator’s excitation frequency and power frequency signals. This scheme features higher measurement stability and lower false alarm rate, suitable for units with complex excitation systems and high electromagnetic interference on site.

DC Composite Injection

DC-based composite test signals are used for insulation measurement, which can effectively filter AC interference signals. It has high accuracy for low-resistance fault detection and is mostly used for high-precision insulation monitoring of large-capacity hydro-generators.

DC injection reads true resistance, with no capacitive shunt to distort the result. It is the usual answer on brushless machines, where the rotating diodes block the return path an AC signal needs. Expect a slower response than the AC variants.

Essential Concept Distinction

Voltage injection is a general measurement technical method, while rotor earth fault protection (64R) is a specific protection function. All mainstream online 64R protection relays are built on voltage injection principles.

The distinction that matters on site is active versus passive. An active scheme sources its own signal. A passive one waits for the excitation to supply something worth measuring. Only the first reads at standstill.

Protection Status Under Different Rotor Fault Conditions

The voltage injection scheme can accurately identify healthy status, insulation aging, single-point grounding, and two-point grounding faults. The corresponding measurement responses and protection actions are standardized as follows:

Rotor Operating Condition	Insulation Characteristic	Measurement Response	Protection Status
Healthy rotor	High and stable rotor-to-ground resistance	Tiny stable leakage current, no abnormal fluctuation	Normal continuous monitoring
Early insulation degradation	Gradually reduced insulation resistance	Slowly increased leakage current	Early warning prompt
Single-point rotor earth fault	Low-resistance fixed grounding path formed	Significant increase in leakage current, obvious impedance drop	Alarm output, risk reminder
Two-point rotor earth fault	Multiple grounding paths, partial winding short circuit	Severe abnormal electrical parameters, drastic data fluctuation	Trip protection action

Hazards of Single and Double Ground Faults

A single ground fault is a latent fault without immediate hazards but completely destroys the insulation safety margin. Two-point grounding is a destructive fault that directly endangers the safe operation of the unit. The core purpose of online monitoring is to capture single-point faults in advance and avoid secondary fault escalation.

Voltage Injection vs Ping-Pong Rotor Earth Fault Protection

Both methods answer the same question, and both are sold as 64R. The full side-by-side comparison sits in Ping-Pong vs Voltage Injection Rotor Earth Fault Protection. What follows is the short version: where each one stops working.

Ping-Pong protection is another mainstream rotor earth fault detection scheme in the industry. There is no absolute advantage or disadvantage between the two; they differ greatly in technical positioning and application focus, and can even be compatible in some high-end protection systems.

Overview of Ping-Pong Protection

Ping-Pong rotor earth fault protection realizes fault detection and positioning by periodically switching the circuit measurement configuration. Its core advantage is accurate fault point location, which is convenient for on-site maintenance personnel to quickly find damaged winding positions.

Core Technical Differences

Comparison Aspect	Voltage Injection Protection	Ping-Pong Protection
Core Principle	Inject fixed test voltage to monitor insulation parameters	Alternate circuit switching to collect different state responses
Main Purpose	Continuous online insulation monitoring and fault early warning	Fault detection and accurate fault location
Measurement Basis	Voltage, current, impedance steady-state data	Parameter difference under different circuit states
Application Focus	Long-term real-time monitoring of operating units	Post-fault location and maintenance auxiliary

The two schemes are not mutually exclusive. Ping-Pong positioning technology can be used as an extended function of voltage injection protection, forming a complete set of “monitoring + positioning” rotor earth fault protection solutions.

Core Components of Voltage Injection Protection System

A complete 64R voltage injection scheme is built from five modules. In practice a voltage injection rotor protection device puts the first three of them in one enclosure, which is what you are actually buying:

1. Injection Module

Generates stable test signals of specified frequency and amplitude, and completes signal isolation and coupling to avoid interference with the excitation system.

Check the injection voltage against the field voltage rating before anything else. A source sized for a 100 V field will not drive a 600 V machine, and no setting range recovers that.

2. Measuring Circuit

Collects return voltage, current and phase signals, filters out on-site electromagnetic interference, and transmits effective data to the main control unit.

Resolution at the bottom of the range matters more than resolution at the top. Ask what resistance the relay can actually resolve, not what it can display.

3. 64R Protection Relay

The core control unit, responsible for data calculation, threshold judgment, alarm/trip output, fault recording and data storage.

Two thresholds, two contacts. Alarm on one output, trip on the other. A relay that shares a single contact for both gives you no way to test the alarm without tripping the unit.

4. Isolation and Filtering Components

Including isolation transformers and filter circuits, which improve system anti-interference ability and ensure measurement accuracy in complex power plant environments.

Excitation ripple is the usual enemy. The filter has to reject the rectifier frequency while passing the injection frequency. Get that wrong and the reading wanders with load.

5. Communication and HMI Interface

Supports local parameter display, and remote data transmission through Modbus, IEC standard protocols, realizing remote monitoring and system integration.

Trend data is worth more than the alarm. Insulation resistance falls over weeks, not seconds. Insist on a relay that logs the value, not just the event.

Typical Application Scenarios

Voltage injection 64R protection is suitable for all large and medium-sized synchronous generator sets, covering new projects and old equipment renovation scenarios:

• Hydroelectric generators: Long-term continuous operation, high requirements for insulation stability, suitable for 24-hour online monitoring.
• Turbo-generators: Conventional thermal power units, matching with most excitation systems, widely used in traditional power plants.
• New energy supporting generators: Peak-shaving and frequent start-stop units, prone to insulation fatigue, requiring real-time fault monitoring.
• Old power plant renovation projects: Replace obsolete analog relays and discontinued protection equipment, upgrade to digital online monitoring schemes.

Online Protection vs Offline Insulation Testing

On-site operation and maintenance requires a clear distinction between the two detection methods, which are complementary rather than substitutable:

Comparison Item	Online Voltage Injection Protection	Offline Insulation Test
Generator Status	Normal grid-connected operation	Shutdown and power-off state
Monitoring Mode	24-hour continuous real-time monitoring	Regular periodic sampling detection
Core Purpose	Fault early warning and real-time protection	Maintenance diagnosis and insulation performance evaluation
Response Speed	Millisecond-level real-time response	Static test after shutdown, no real-time response

Offline tests read the insulation at one instant, at one temperature, with the machine stopped. Online rotor insulation monitoring reads it continuously, at operating temperature, while the winding is under electrical and mechanical stress. Only the second one catches the fault that develops between two outages.

Key Relay Selection Parameters

For EPC engineers and project owners, relay selection should focus on practical matching parameters rather than brand publicity, to avoid on-site incompatibility and detection failure:

• Excitation system compatibility: Match the generator excitation type, field voltage and current range to ensure signal coupling adaptation.
• Injection signal parameters: Select AC/low-frequency/DC injection mode according to on-site electromagnetic interference intensity.
• Measurement range and accuracy: Cover the full range of rotor insulation resistance changes, with high precision for low-resistance fault identification.
• Protection response time: Meet power plant protection standard response speed, avoid fault delay and expansion.
• Communication compatibility: Support mainstream industrial protocols, convenient for docking with DCS and SCADA systems.
• Anti-interference performance: Adapt to high-temperature, high-vibration and strong electromagnetic interference environment of power plants.

Field Installation and Commissioning Specifications

Standardized commissioning is the key to ensure the reliable operation of 64R protection. The recommended on-site commissioning sequence is universal and applicable to all voltage injection relays:

1. Review the technical documents and the excitation drawings.
2. Inspect the rotor field circuit and its earthing arrangement.
3. Verify wiring polarity at the coupling terminals.
4. Run the pre-energisation insulation test.
5. Set the relay parameters, injection mode and thresholds.
6. Verify the injection signal is present at the rotor terminals.
7. Simulate an earth fault with a decade resistor box.
8. Test the alarm output.
9. Test the trip output.
10. Final acceptance and commissioning sign-off.

Key commissioning points: Strictly verify the integrity of the injection loop, avoid wrong wiring leading to false alarms or missing detection; simulate multiple fault resistance values to calibrate threshold accuracy; confirm that communication and remote transmission functions are normal.

Common On-Site Faults and Troubleshooting

Three problems account for most site calls on a voltage injection rotor earth fault protection scheme. Each has a distinct signature and a different fix, so diagnose before you change a setting.

Changing a threshold to silence a false alarm is the most common mistake on site. It usually hides a real fault instead of fixing anything.

1. False earth fault alarm

Main causes: On-site electromagnetic interference, unstable wiring contact, abnormal coupling circuit, and parameter threshold setting unreasonably. Solutions: Optimize wiring shielding, check loop connectivity, recalibrate signal parameters, and adjust filtering coefficients.

Start with the injection loop, not the relay. A coupling lead run alongside the field cable picks up ripple and reads as a low resistance. Reroute it, then re-test before touching the threshold.

2. Failed to detect actual ground fault

Main causes: Blocked injection loop, incorrect threshold setting, mismatched excitation system, and damaged measuring components. Solutions: Inspect the full link of the detection loop, reset protection parameters, and verify system compatibility.

Check the coupling impedance first. If it is far larger than the fault resistance you are trying to see, the change in measured value never crosses the threshold, whatever you set it to.

3. Unstable insulation resistance data

Main causes: Excessive on-site interference, poor grounding, and unreasonable signal filtering. Solutions: Optimize system grounding and enhance signal filtering processing.

Wander that tracks load is a filter problem. Wander that tracks temperature is real. Log both together for a week before you decide which one you have.

Advantages and Limitations

The method has a clear edge over passive schemes and a clear ceiling. Both belong in the specification before you commit to voltage injection rotor earth fault protection on a given machine.

Read both lists against your own excitation. The limits are the ones that decide whether the scheme survives commissioning.

Core Advantages

These are the gains that show up on site, in the order engineers notice them:

• Realize 24-hour online continuous monitoring without shutting down the unit.
• Effectively capture early insulation degradation and single-point latent faults.
• Stable measurement, low false alarm rate, strong on-site adaptability.
• Support alarm and trip dual protection functions to avoid equipment damage.
• Easy to integrate with digital power plant systems, suitable for new construction and renovation projects.

Technical Limitations

And the limits that rarely appear in the datasheet:

• Need to match the generator excitation system, poor compatibility with individual special excitation modes.
• Installation and commissioning require standardized operation, irregular wiring will affect measurement accuracy.
• Long-term operation requires regular parameter calibration to ensure detection stability.

Engineering Application Case

The case below is a representative retrofit. The protection decisions are what matter here, not the site name.

It is included because the sequence of decisions transfers to most retrofit work, and because the failure mode it fixed is the common one.

Project Background

A 50MW hydroelectric generator in Southeast Asia has been in operation for 12 years. The original old analog rotor protection device has aging functions, no online monitoring capability, and can only rely on regular offline maintenance tests, with major operational safety hazards. The owner needs to upgrade to a digital 64R voltage injection protection scheme to realize real-time insulation monitoring.

Protection Requirements

Realize continuous online monitoring of rotor insulation, support single-point fault alarm and serious fault trip, compatible with the original excitation system, and dock with the existing power plant SCADA system.

Any retrofit inherits the existing excitation. Write the requirement against that excitation and against the SCADA point list. Writing it against a relay datasheet is how schemes end up incompatible on arrival.

Implementation Scheme

Adopt low-frequency AC voltage injection 64R relay, complete loop transformation and signal coupling, set reasonable alarm and trip thresholds, and configure remote communication functions.

Couplant at the field terminals, injection source in the relay cubicle, and a screened pair the whole way. Earth the screen at one end only. Earth it at both and you build a loop that picks up the field cable.

Operation Effect

After the transformation, the system operates stably, realizes real-time perception of rotor insulation status, successfully captures multiple times of slight insulation degradation, and reminds the maintenance team to handle it in advance. No rotor grounding fault escalation accident has occurred since the operation, effectively ensuring the safe and stable operation of the unit.

FAQ

These eight questions come up in almost every enquiry. Each answer is written to stand on its own.

If you are comparing methods rather than specifying one, start at question 6, then read the full comparison page linked above.

1. What is voltage injection rotor earth fault protection?

It is a 64R generator protection method that drives a controlled AC, low-frequency or DC test signal into the rotor field circuit and reads the return. From that return the relay derives rotor-to-ground resistance and alarms or trips when it falls below the set value.

2. How does a voltage injection rotor earth fault relay work?

It sources its own test signal, couples it onto the field winding, and measures the voltage and current that come back. From those two quantities it works out rotor-to-ground resistance and compares it with the alarm and trip thresholds. Because the signal comes from the relay, it reads at standstill as well as on load.

3. What is ANSI 64R protection?

ANSI 64R is the device number for rotor earth fault detection in ANSI/IEEE C37.2-2022. It applies to the field winding, not the stator. Several methods can deliver the function, including voltage injection and ping-pong switching, so the number tells you the job rather than the technique.

4. Why do synchronous generators need rotor earth fault protection?

A single rotor earth fault carries almost no current, so overcurrent, stator differential and stator earth fault functions never see it. The second fault is the one that destroys the machine. Continuous 64R monitoring catches the first fault while it is still only an alarm.

5. Can voltage injection scheme detect single-point rotor earth fault?

Yes, and that is the main reason to choose it over a passive method. The injected signal lets the relay resolve rotor-to-ground resistance across the whole range, so it flags a single-point fault and the slow insulation decay that leads to one.

6. What is the difference between voltage injection and Ping-Pong protection?

Ping-pong switches a resistor across the field circuit and reads the voltage swing, so it needs the excitation to supply something to measure. Injection supplies its own signal. The practical difference is that injection reads at standstill and at low field voltage, and ping-pong does not.

7. Can the protection operate during generator grid-connected operation?

Yes. The injection source sits inside the relay, so it is independent of the excitation output. The scheme reads at no load, at full load and with the machine stopped, and it does not disturb the excitation regulator. One caveat: the reading is only as good as the coupling, so verify the signal at the rotor terminals before you trust a standstill value.

8. What are the core parameters for 64R relay selection?

Six, in the order they cause trouble on site: excitation type and field voltage range, injection mode, the resistance range the relay can actually resolve, alarm and trip thresholds on separate contacts, the protocol your DCS expects, and the operating temperature range.

Conclusion

Voltage injection rotor earth fault protection is a mature, reliable and widely applicable 64R protection implementation scheme for synchronous generators. Different from traditional passive protection and offline detection, its active injection and continuous online monitoring capability make up for the blind spot of rotor latent fault detection, and can effectively prevent equipment damage caused by two-point rotor grounding.

The core value of the Voltage Injection Rotor Earth Fault Protection Relay scheme is insulation monitoring, early fault alarming and safe-operation protection. Proper relay selection, standard installation and rational parameter setting are critical to optimal protection performance. It is a cost-effective, high-reliability technical option for new power-plant projects and legacy-equipment retrofits.

Related Reading

Each of these covers a different part of the same decision: what the function does, which method delivers it, and how to specify it.

• 64R Protection Relay: Working Principle, Protection Functions and Applications
• Ping-Pong Rotor Earth Fault Protection: Working Principle and Applications
• Ping-Pong vs Voltage Injection Rotor Earth Fault Protection
• How to Choose a Rotor Earth Fault Relay for a Generator
• Generator Protection Relay for Hydro, Diesel and Industrial Generators
• Generator Rotor Earth Fault Protection Supply Case

Technical References and Data Sources

Every edition below was checked against the publisher catalogue. Three entries on the previous version of this page carried the wrong edition, and two could not be traced to any publisher at all.

Standard	Edition	What it fixes	Where it applies
ANSI/IEEE C37.2	2022	Device function numbers, including 64R for rotor earth fault	Function numbering on drawings and in specifications
IEEE C37.102	2023	Guide for AC generator protection, field ground detection included	Setting philosophy and the alarm versus trip split
IEEE C37.101	2006	Guide for generator ground protection	Earthing arrangement and sensitivity limits
IEEE 43	2013	Insulation resistance testing of rotating machinery	Acceptance and periodic insulation checks
IEC 60255-1	2022	General requirements for measuring relays and protection equipment	Relay ratings, construction and type tests
IEC 60034-1	2026 (Ed. 15.0)	Rotating electrical machines, rating and performance	Winding insulation classes and temperature limits
GB/T 14285	2023	Technical code for relaying protection and security automatic equipment	Configuration practice on China domestic projects

Three corrections worth flagging. IEEE C37.102 was cited here as 2018; the current guide is 2023. IEC 60034-1 was cited as 2017; that edition was replaced in 2022 and again in 2026. GB/T 14285 was cited as 2020, an edition that was never issued: the 2023 edition replaced the 2006 one and took effect on 1 March 2024. Two further entries, a plant excitation maintenance manual and a generic relay specification, had no publisher and have been removed.

Compiled by the Autony protection engineering team. Standard editions verified against the IEEE, IEC and national catalogues.
