Pump Protection Relay: Complete Selection Guide for Industrial Pump Motors

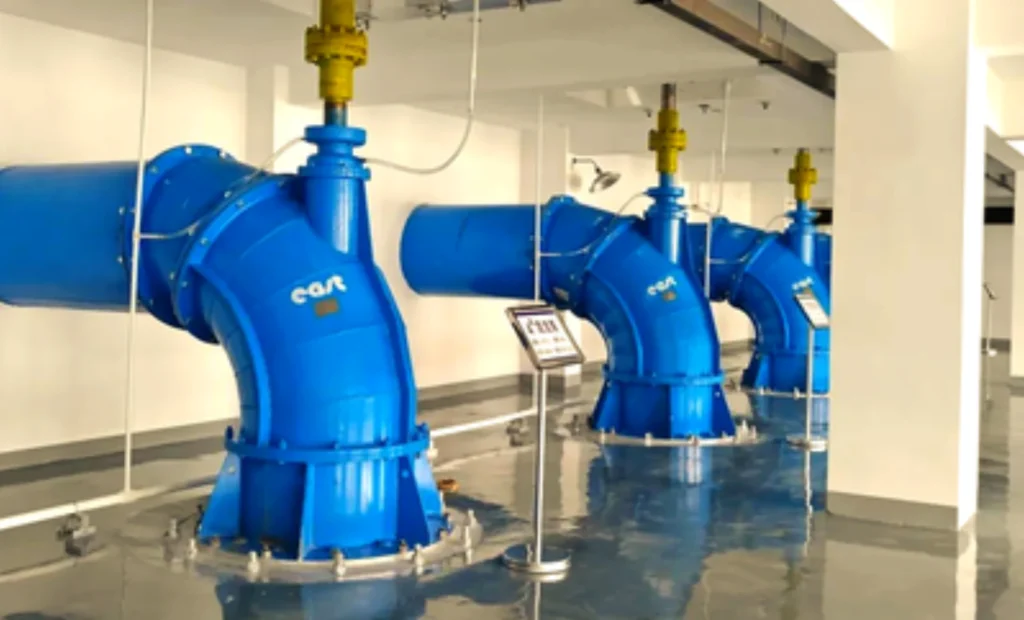

Pump protection relays are widely deployed in pump station automation projects. We have sorted out common problems encountered by overseas customers during project implementation and provided answers one by one.

What is a Pump Protection Relay?

A pump protection relay is a dedicated intelligent protection device designed exclusively for water pump units in pump stations, sewage plants, water supply and drainage automation systems.

Common Pump Problems and Protection Relay Solutions (Concise Version)

Dry Running (Most Common Fault)

• Causes: Low water level, empty tank, blocked suction pipe/strainer, or improper installation leading to no-load operation.
• Consequences: No cooling or lubrication → mechanical seal dry wear, bearing overheating, stator burnout, and in severe cases, pump body damage.
• Pump Protection Relay: Uses underload and power factor monitoring. When running dry, load and power factor drop sharply; the relay trips after a time delay to prevent nuisance tripping.

Overload

• Causes: Mechanical blockage (sediment, debris), worn bearings, excessive system pressure, or long-term over-frequency operation.
• Consequences: Prolonged winding overheating → insulation aging, eventually motor burnout.
• Pump Protection Relay: Employs thermal overload simulation, calculating real-time current heat accumulation. Trips when threshold is exceeded to prevent thermal damage.

Phase Loss (Three-Phase Motors)

• Causes: Blown fuse, loose wiring, poor grid contact, or supply-side phase failure.
• Consequences: Massive heat generation in a very short time, which can instantly burn out windings.
• Pump Protection Relay: Uses phase failure detection and negative-sequence current monitoring to identify and trip within milliseconds, avoiding instantaneous burnout.

Voltage Abnormalities

• Typical Issues: Undervoltage (peak load periods), overvoltage (grid surges), and three-phase voltage imbalance.
• Consequences: Reduced efficiency, increased losses, and long-term fatigue damage.
• Pump Protection Relay: Equipped with comprehensive voltage monitoring; trip thresholds and time delays are adjustable to stably handle fluctuations and prevent frequent tripping or hidden damage.

Jamming (Common in Sewage/Mining Pumps)

• Causes: Sediment buildup, fiber entanglement, solid particle blockage, or rust seizure after long-term shutdown.
• Consequences: Instantaneous overcurrent during startup or operation, leading to winding meltdown.
• Pump Protection Relay: Integrates locked rotor and stall protection, monitoring startup and running currents in real time. Once jamming is detected, it cuts power immediately to prevent overcurrent burnout.

Function of Pump Protection Relay

Overcurrent	reverse phase protection relay
Motor protection overload relay	balanced earth fault protection relay
phase loss protection relays	over and undervoltage protection relay
phase unbalance	Motor stall / locked rotor

In addition to the above common protections, it may also include motor no-load running protection, inverse-time overcurrent protection, differential protection relay 87m and so on.

Less common motor protection functions

High impedance differential protection for motor

Function Description

High-impedance motor differential protection serves as the primary protection against internal interphase short circuits and earth faults of motors. It is extensively applied to high-voltage, high-power motors, including those rated at 6kV, 10kV, 11kV and with a power of 2000kW or above.

Working Principle

This protection adopts the current differential principle. CTs are installed on both the motor supply side and neutral side, whose secondary circuits form a differential loop through a high-impedance relay.

Differential current protection relay remains inactive under normal operation or external faults due to balanced currents on both sides that create negligible unbalanced current, while internal motor faults will lead to current imbalance to generate differential current and trigger relay tripping.

Design Advantages

Featuring a high-resistance design (several thousand ohms), the relay limits coil current effectively during CT saturation and external fault conditions to prevent maloperation, while maintaining high sensitivity for internal fault tripping.

Differential Protection for Variable Frequency Starting Motor

Root Causes of Conventional Differential Protection Failure

Conventional differential protection malfunctions in VFD-driven motors due to two key issues:

1. Frequency mismatch: Motor terminal current frequency varies 0–50 Hz with VFD output, while the neutral side maintains 50 Hz power frequency. The Fourier algorithm causes severe measurement errors (over 25%) below 40 Hz.

2. CT saturation: VFD’s harmonic-containing non-sinusoidal output and low-frequency magnetic flux growth easily induce CT saturation, reducing protection precision.

Mainstream Technical Solutions

Solution	Core Principle	Key Features
Sampled-value differential protection	Abandons Fourier algorithm, directly compares current instantaneous samples; anti-interference to frequency and harmonics, suitable for 25–50 Hz operation.	Needs extra CTs at the VFD-motor side for differential loop matching; supports 10–100 Hz full-range frequency tracking.
Delayed activation / Adaptive instantaneous trip	Adjusts or disables differential protection by monitoring bypass switch status during VFD operation.	Delays protection activation to avoid switching inrush currents; realizes adaptive adjustment of trip settings during mode conversion.
Self-balancing differential protection motor	Realizes frequency-independent longitudinal differential protection based on magnetic balance theory.	Restricted in application due to difficult wiring and inadaptable settings for non-power-frequency conditions.

All types of Pump Protection Relays used in pump stations

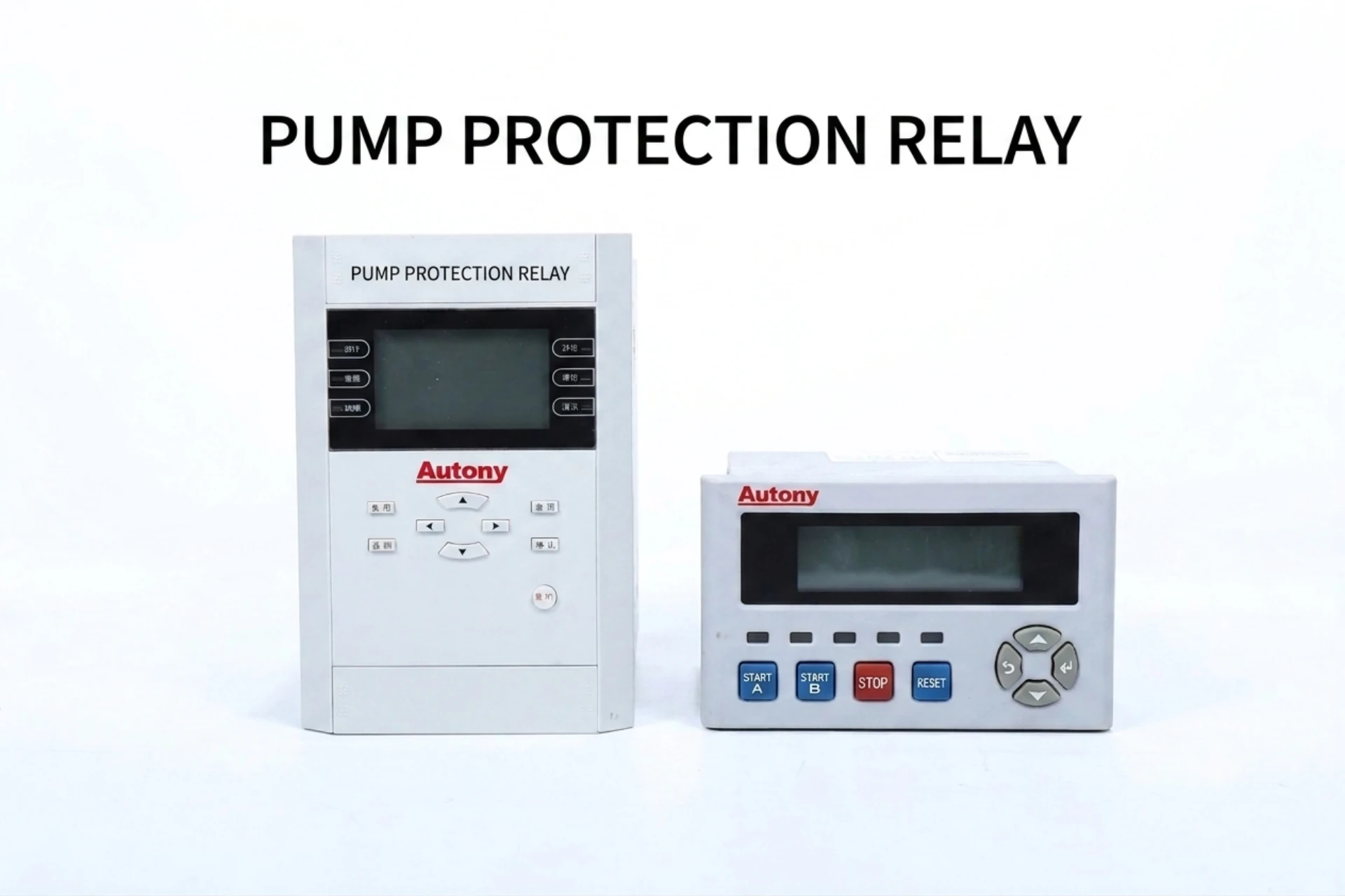

Single phase motor pump protection relay

Single-phase motor protection relays, integrating dry running protection relay and motor protection overload relay functions, are protective devices specially designed for pumps supplied with single-phase power.

Their functions are similar to those for three-phase systems, with core protection against dry running, overload, locked rotor, abnormal voltage and other faults.

3 phase motor protection relay

Three-phase motor protection relays are intelligent protective devices specially designed for three-phase AC motors. They monitor the operating status of motors and trip promptly upon electrical or mechanical faults to prevent motor damage.

Low-voltage motor relay protection

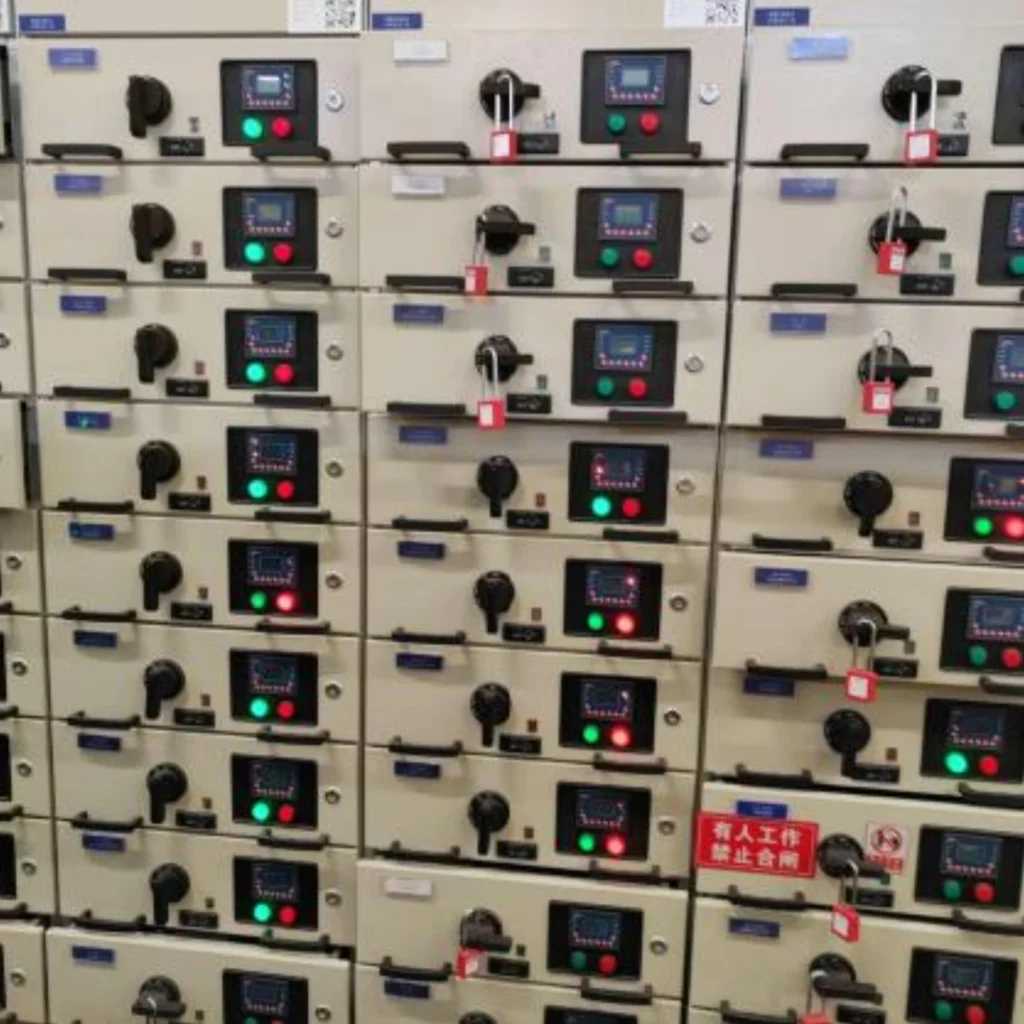

Low-voltage motor protection relays are widely applicable to systems with voltage levels of AC 380V/660V and below. They cover an extremely wide power range, and the core basis for model selection is the rated current of the motor. The product line fully covers conventional industrial motors from 5.5kW to 22kW, and can also be extended to high-power application scenarios up to 250kW or even 800kW.

Medium voltage motor differential protection

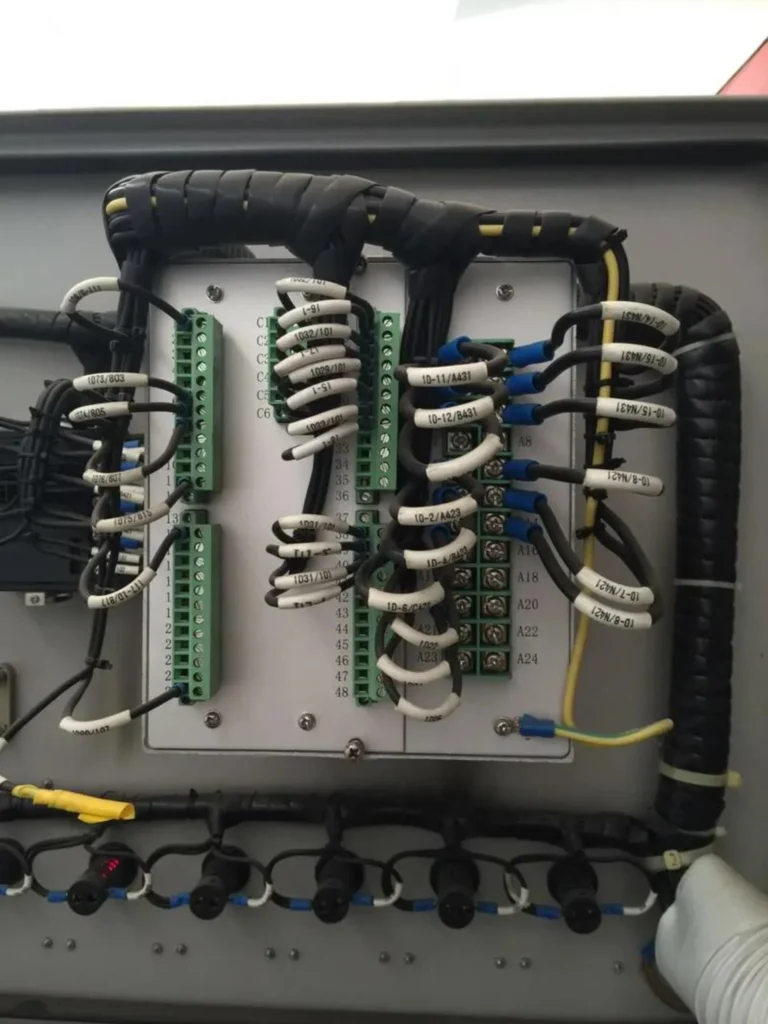

Medium-voltage motors (generally referring to motors with voltage ratings of 3kV, 6kV, 10kV and above) are high-value equipment and play a critical role in production processes, hence they require more comprehensive and sensitive protection than low-voltage motors.

Mounting Methods of Relay Protection for Pumping Stations

In terms of mounting methods, low-voltage motor protection devices prioritize flexibility and ease of installation, with two common configurations: DIN rail mounting and panel flush mounting, which can be directly fitted inside low-voltage switchgear cabinets.

By contrast, Medium-voltage motor protection units feature larger dimensions and sophisticated functions. They are generally either flush-mounted within high-voltage switchgear cabinets, or mounted on assembled panels to facilitate centralized management and standardized layout.

Coordination Between Pumping Station Relay Protection and PLC Control Panels

Signal Interaction

Digital Signals (DI/DO)

Status signals such as “protection operation”, “trip command” and “equipment fault” are directly wired to the I/O modules of the PLC via hard wiring.

Analog Signals (AI/AO)

Real-time operating data of the motor including three-phase current, voltage, power and frequency can be transmitted to the PLC through 4–20 mA analog output channels for PLC monitoring and logical judgment.

Data Communication

In practical engineering, communication management units are generally installed on the unit PLC control panels and serve as transfer hubs for on-site data.

Medium voltage protection relays are connected to the above-mentioned equipment via data communication cables.

After collecting and processing various scattered protection data, the communication management unit uniformly uploads all data to the upper computer in the central control room through the station control layer network, thereby constructing a complete data transmission channel from field equipment to the monitoring center to realize the automation of the pump station system.

FAQ

Q1: What is the most important protection function for a water pump?

Dry-run protection is often the most critical because it prevents severe damage when water supply is lost.

Q2: Can a pump multifunction protection relay replace a thermal overload relay?

Yes. Most modern pump protection relays include thermal overload protection plus many advanced functions.

Q3: How do I know if my pump needs underload protection?

If the pump can operate without water or experience loss of suction, underload protection is highly recommended.

Q4: Can one relay protect multiple pumps?

Generally, each motor should have its own dedicated protection relay for accurate monitoring and fault isolation.

Q5: What communication protocol should I choose?

Modbus RTU is the most common and economical choice, while IEC 61850 is preferred for utility and substation projects.

Q6: How often should relay settings be reviewed?

At least once per year or whenever the pump system is modified.

Q7:How does a motor protection thermistor relay work?

The thermistor relay connects PTC thermistors embedded inside motor windings. When the motor overheats, the resistance of thermistors rises sharply. The relay detects this resistance change and sends trip signals to cut off the motor power supply, preventing winding burnout caused by over-temperature.

Q7:How relay protect small motors?

Relays monitor current, temperature and other operating parameters of small motors. When overload, phase loss, overheating or short-circuit faults occur, the relay will output a trip signal to disconnect the motor power supply, avoiding winding damage.

Q8:How to test motor protection relay?

To conduct motor protection relay testing, technicians simulate a full range of fault scenarios such as overload, phase failure, current unbalance, short circuit and over-temperature. Corresponding analog and digital signals are injected to verify if the relay accurately outputs alarm and trip signals in accordance with its configuration settings.

Personal Experience Summary

1、The larger the unit capacity of a pumping station, the higher the technical requirements and cost of its relay protection system.

2、Relay protection devices used in key projects are subject to stricter specifications than those for ordinary projects. Random purchase of low-cost products will most likely fail to meet technical requirements.

3、For pumping station relay protection equipment, the price of low price motor protection relay (low-voltage relay protection devices) ranges from RMB 500 to 2,000, while high-voltage motor protection units cost anywhere between RMB 2,000 and tens of thousands of yuan.
