Diesel Generator Protection Relay for Standby and Industrial Generator Systems

Diesel Generator Protection Relay Solution

We provide numerical diesel generator protection relays designed for a wide range of applications, including emergency standby generators, industrial gensets, marine generators, and power plant installations. Our protection solutions are engineered to ensure reliable operation, prevent equipment damage, and minimize downtime across all voltage levels.

Voltage Level Coverage

Our diesel generator protection relays are available for the following voltage levels:

Voltage Level	Typical Applications
400V	Small diesel gensets, commercial backup systems, residential standby
6.6kV	Medium industrial generators, mining operations, oil & gas facilities
11kV	Utility-scale diesel plants, large industrial cogeneration
13.8kV	Heavy industrial power generation, large diesel power stations

Our Supply Capabilities

Capability	Description
Product Range	Numerical protection relays from basic overcurrent to comprehensive differential protection
Voltage Support	400V, 6.6kV, 11kV, 13.8kV and custom ratings
Communication	IEC 61850, Modbus, DNP3 for SCADA integration
Engineering Support	Protection scheme design, relay setting calculation, and commissioning assistance
Application Coverage	Emergency standby, industrial gensets, marine, and utility power plants

Why Choose Our Diesel Generator Protection Solution?

• Proven Reliability – Designed for harsh environments and continuous operation
• Flexible Configuration – Tailored to your specific generator size and application
• Fast Fault Clearing – High-speed fault detection and trip response
• SCADA Ready – Seamless integration with modern control systems
• Global Support – Technical assistance from selection through commissioning

Applications of Diesel Generator Protection Relay

Application	Protection Requirement	Key Protection Functions
Emergency Standby Generator	Overcurrent, reverse power, voltage, frequency protection	50/51, 32, 27/59, 81
Industrial Diesel Genset	Overcurrent, unbalance, thermal protection	50/51, 46, 49
Marine Generator	Reverse power, rotor earth fault, loss of excitation	32, 64R, 40
Parallel Operation Generator	Differential, reverse power, synchronism check	87G, 32, 25

Application Details

Emergency Standby Generator

Overview: Standby generators provide backup power during grid outages in commercial buildings, hospitals, data centers, and telecommunications facilities. They are typically low-voltage units (400V) that start automatically when the main supply fails.

Key Protection Focus:

• 50/51 Overcurrent – Protects against overloads and short circuits during emergency operation
• 32 Reverse Power – Prevents motoring when the grid returns and the generator fails to disconnect properly
• 27/59 Voltage Protection – Monitors undervoltage and overvoltage conditions to ensure stable power quality
• 81 Frequency Protection – Detects frequency deviations that could damage sensitive loads

Industrial Diesel Genset

Overview: Industrial gensets provide prime or backup power for manufacturing plants, mining operations, oil and gas facilities, and construction sites. These units operate in harsh conditions with frequent load variations.

Key Protection Focus:

• 50/51 Overcurrent – Primary protection for fault clearing and overload conditions
• 46 Negative Sequence Protection – Detects unbalanced loads caused by uneven phase currents, which can cause rotor overheating
• 49 Thermal Protection – Monitors winding and core temperatures to prevent insulation degradation and extend equipment life

Marine Generator

Overview: Marine generators supply power for shipboard systems, propulsion, and auxiliary equipment. They operate in challenging environments with high humidity, vibration, and saltwater exposure, requiring robust and reliable protection.

Key Protection Focus:

• 32 Reverse Power – Critical for marine applications to prevent motoring during engine failure, which can damage propulsion systems
• 64R Rotor Earth Fault – Monitors rotor insulation integrity, essential for reliable operation in marine environments
• 40 Loss of Excitation – Detects excitation failure that can cause voltage collapse and loss of critical shipboard systems

Parallel Operation Generator

Overview: In parallel operation, multiple diesel generators are synchronized to share loads, improving efficiency and reliability in large industrial facilities and power plants. Parallel operation requires precise protection to ensure stable load sharing and system security.

Key Protection Focus:

• 87G Generator Differential – Provides high-speed primary protection for stator winding faults; essential when multiple generators share a common bus
• 32 Reverse Power – Prevents a generator from motoring when it fails to share load properly; critical for maintaining stable parallel operation
• 25 Synchronism Check – Ensures voltage, frequency, and phase angle match before breaker closing, preventing mechanical stress and system disturbances during parallel connection

Protection Functions for Diesel Generators

Diesel generators require specific protection functions to address their unique operational characteristics, such as frequent start/stop cycles and reverse power sensitivity.

ANSI Code	Protection Function	Purpose for Diesel Generators
50/51	Overcurrent Protection	Fault backup and overload protection
87G	Generator Differential	Internal stator fault protection
32	Reverse Power	Prevents motoring when engine fails
40	Loss of Excitation	Excitation system failure detection
46	Negative Sequence	Unbalanced load protection
27/59	Voltage Protection	Over/under voltage protection
81	Frequency Protection	Over/under frequency protection
24	Overexcitation	V/Hz protection against core saturation

Why Diesel Generator Protection Relays Are Essential

Diesel generators are critical prime and standby power sources for industrial plants, construction sites, mining facilities, marine vessels, and off-grid microgrids.

However, unprotected generator units face severe electrical and mechanical failures that lead to costly downtime, equipment burnout, and grid safety hazards. A high-performance generator protection relay is the core device to guarantee safe, stable, and compliant operation of diesel generator sets.

Risks of Missing or Inadequate Generator Protection

Without standard relay protection, diesel generators are exposed to the following common failures:

• Stator winding burnout and short-circuit damage
• Diesel engine overload and overheating failure
• Reverse power motoring accidents
• Abnormal synchronization and grid connection faults
• Voltage and frequency disturbance to utility public grids

Real Engineering Case Study

A 2MW standby diesel generator at a commercial data center suffered permanent stator winding damage due to missing reverse power protection (ANSI 32).

The generator ran in motoring mode for 8 minutes after prime mover failure, resulting in a total repair cost of over $18,000. By comparison, standard multi-function Diesel Generator Protection Relays cost less than 5% of the maintenance expense.

Core Benefits of Modern Digital Generator Protection Relays

• Greatly improve generator operating reliability
• Minimize unplanned downtime and production loss
• Achieve fast and accurate fault isolation
• Support remote real-time monitoring, data logging and fault diagnosis
• Fully comply with international grid interconnection standards

What Is a Diesel Generator Protection Relay?

Basic Working Principle

A diesel generator protection relay is a numerical intelligent device that collects real-time electrical parameters from CT and PT signals. It continuously monitors voltage, current, frequency, active/reactive power, and insulation status.

Once abnormal operating conditions exceed the preset threshold, the relay will issue alarm or trip commands to disconnect the generator from the load or grid, avoiding secondary damage to engine and generator components.

Complete Protection System Architecture

A standard diesel generator protection system consists of the following core components:

• Generator Current Transformers (CTs)
• Generator Voltage Transformers (VTs / PTs)
• Numerical Generator Protection Relay
• Generator Main Circuit Breaker
• Engine Governor Control System
• Automatic Voltage Regulator (AVR)
• SCADA Remote Monitoring System

ANSI Standard Protection Logic

Global power industries adopt ANSI device number standards to define generator protection functions.

Each protection code corresponds to a specific fault condition, enabling unified engineering design, commissioning, and maintenance across EPC projects worldwide.

Main ANSI Protection Functions for Diesel Generators (Full Parameter Guide)

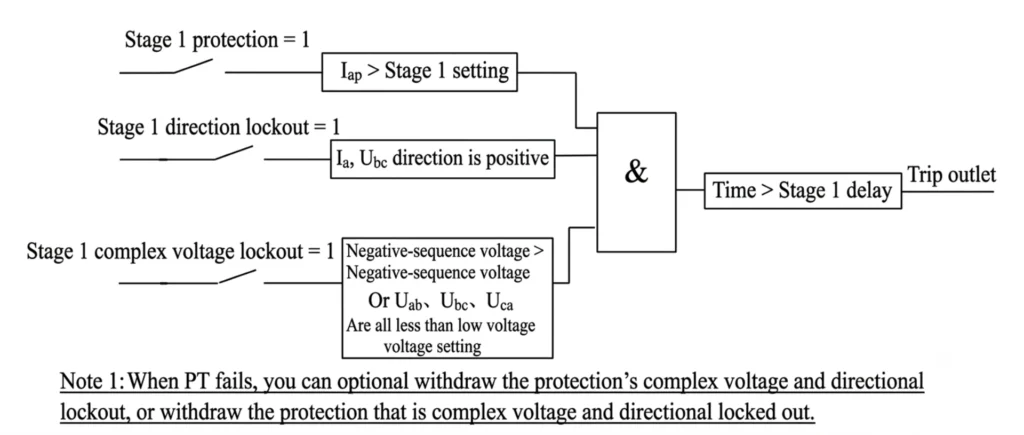

Overcurrent Protection (ANSI 50/51)

Function Purpose: Detect three-phase short-circuit faults and long-term thermal overload of stator windings, serving as primary and backup current protection.

Applicable Units: All LV (400V/690V) and MV (3.3kV/6.6kV/11kV) diesel generators

Working Stages:

• ANSI 50: Instantaneous overcurrent (fast trip for severe short faults)
• ANSI 51: Time-delay inverse overcurrent (backup overload protection)

Common Field Problem: Nuisance tripping during large motor starting due to high inrush current

Solution: Optimize time-current curve coordination and set reasonable delay time

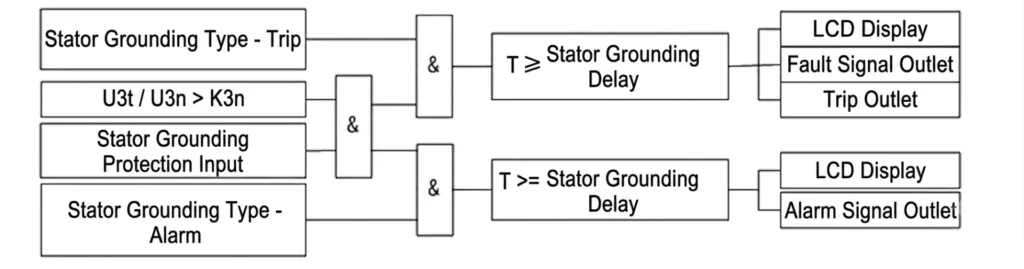

Earth Fault Protection

Function Purpose: Detect single-phase ground faults and stator insulation degradation

Main Detection Methods:

• Residual current zero-sequence detection
• Neutral point CT sampling method

Typical Issue: Intermittent earth fault alarms caused by loose wiring or unbalanced system leakage current

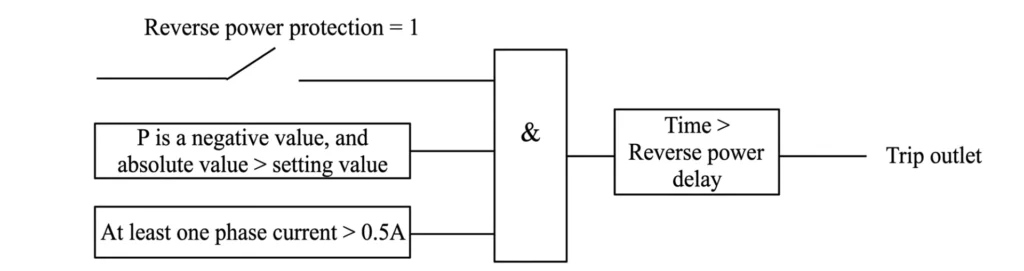

Reverse Power Protection (ANSI 32)

Function Purpose: Prevent generator motoring operation (the generator absorbs active power from the grid)

Core Protection Value: Protect diesel engine from over-speed damage and cylinder burnout after fuel failure or governor trip

Project Case: Fuel supply interruption leads to generator reverse power operation and engine reverse dragging

Industry Standard Setting Range: 2% – 10% of rated active power

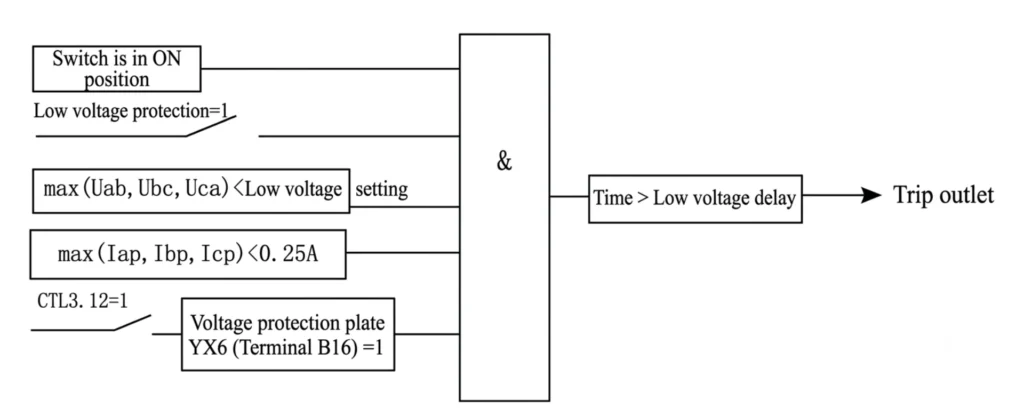

Under Voltage Protection (ANSI 27)

Protected Faults: AVR failure, system short circuit, grid voltage collapse, abnormal load fluctuation

Application: Avoid generator continuous operation under low voltage and over-current heating damage

Over Voltage Protection (ANSI 59)

Protected Faults: AVR malfunction, sudden full load rejection, grid voltage surge

Effect: Prevent stator insulation breakdown and electrical component aging

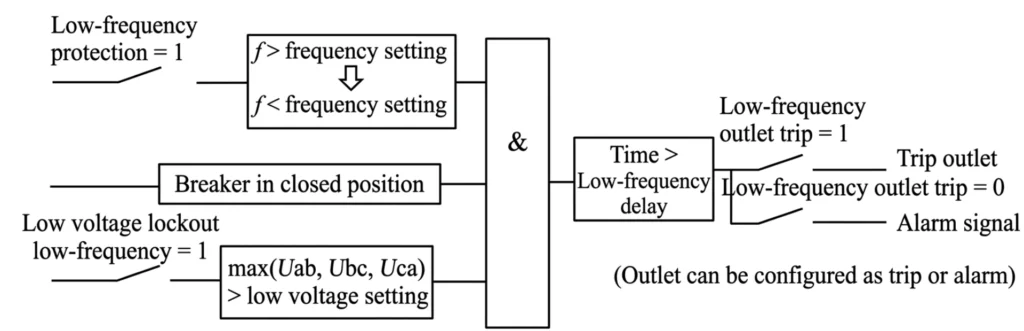

Under frequency relay for generator protection (ANSI 81U)

Causes: Governor failure, excessive load exceeding generator rated power, fuel insufficient supply

Function: Cooperate with automatic load shedding to stabilize microgrid frequency and avoid unit stall

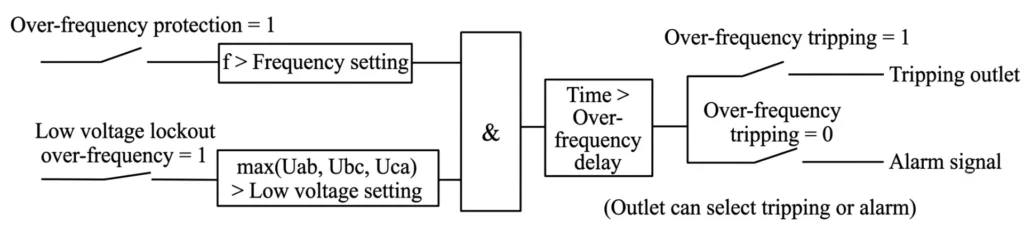

Over Frequency Protection (ANSI 81O)

Causes: Sudden load loss, governor hunting and instability, no-load overspeed

Protection Strategy: Multi-stage time-delay trip to avoid false action during transient grid fluctuation

Negative Sequence Protection (ANSI 46)

Core Value: Unbalanced three-phase loads produce negative sequence current, which causes severe rotor surface overheating and aging

Typical Application Scenarios: Industrial unbalanced loads, mining mobile generators, marine power units, single-phase heavy-load systems

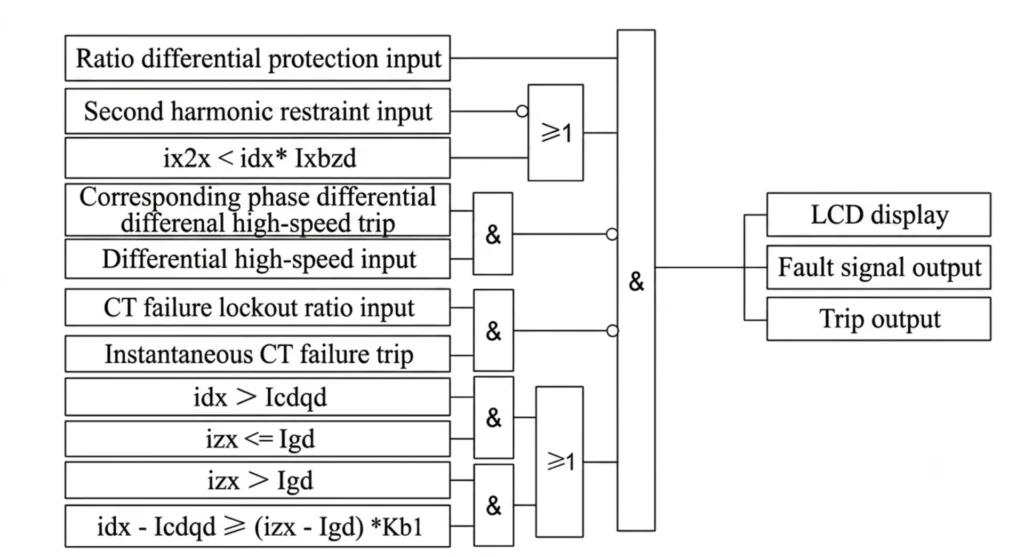

Differential Protection (ANSI 87G)

Function: High-sensitivity main protection for stator internal short-circuit faults

Mandatory Configuration Condition:

• Diesel generators above 1MW capacity
• All grid-connected generator units

Advantages: Fast fault clearing, high accuracy, no dead zone for internal faults

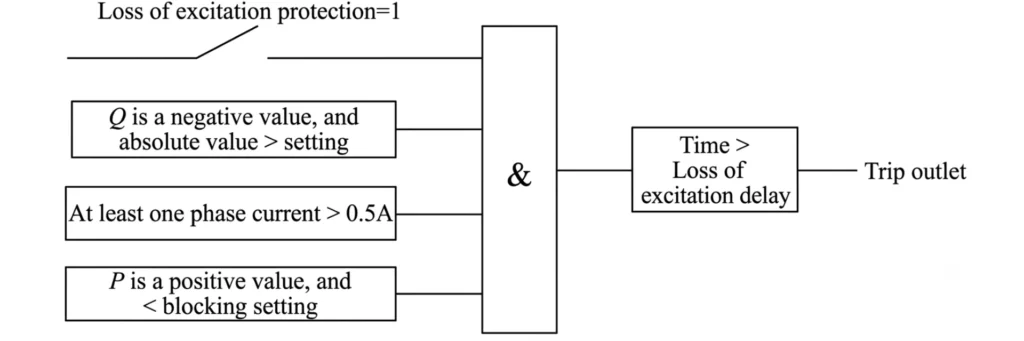

Loss of Excitation Protection (ANSI 40)

Applicable Units: Brushless synchronous diesel generators

Risks Without Protection: Rotor overheating, reactive power absorption, system voltage collapse, generator out-of-step

Overload Thermal Protection (ANSI 49)

Built-in thermal accumulation model to protect against long-term continuous overload and generator ventilation system failure, preventing insulation thermal aging.

Generator pole slipping protection relay (ANSI 78)

Required for: Large grid-connected diesel power plants and island microgrid systems

Function:Identify system power swing and generator out-of-step faults to prevent grid oscillation collapse with reliable generator out of step protection relays.

Matching Protection Functions by Generator Capacity (Standard Table)

Protection configurations vary according to different diesel generator power ratings. The table below lists industry-standard mandatory protection schemes for engineering project selection, specially designed for Diesel Generator Protection Relays.

Generator Size	Mandatory ANSI Protection Functions	Application Features
Small <500kW	50/51, 50N/51N, 27, 59, 81U/O, 32	Standby power, simple load, independent operation
Medium 500kW–5MW	All small functions + 46 (Negative Sequence), 49 (Thermal Overload), 40 (Loss of Excitation)	Industrial prime power, partial grid connection, unbalanced load
Large >5MW	All medium functions + 87G (Differential), 64G (Stator Earth Fault), 78 (Out-of-Step), Advanced Event Recording	Grid-connected power station, microgrid main unit, high reliability requirement

Diesel Generator Protection Relay Selection Guide

Proper relay selection directly determines power system safety and project compliance. Engineers and buyers must evaluate the following key criteria when specifying Diesel Generator Protection Relays.

Voltage Level

400V / 690V low-voltage generators; 3.3kV / 6.6kV / 11kV medium-voltage generators

Generator Operating Mode

• Standby power (emergency backup)
• Prime power (continuous main power)
• Grid-connected operation
• Island off-grid operation

Communication Protocol Requirements

Match SCADA and remote monitoring system:

• Modbus RTU (basic local monitoring)
• Modbus TCP (Ethernet network monitoring)
• IEC 61850 (substation intelligent standard)

Diesel Generator Protection Relays: Practical Protection Setting Calculation & Standard Values

Mastering generator protection philosophy and relay settings calculations is critical for stable unit operation. Accurate parameter calibration for Diesel Generator Protection Relays prevents reverse power, overload and earth faults, avoiding costly generator damage caused by improper protection logic.

Overcurrent Setting Calculation (1500kVA Generator Example)

Step 1: Confirm CT ratio — Select CT ratio according to generator rated stator current

Step 2: Pickup current setting — Avoid motor starting inrush current, reserve 1.2~1.5 times safety margin

Step 3: Time coordination — Match upstream and downstream protection delay to prevent cascade tripping

Standard Frequency Protection Settings

• Underfrequency (81U): 47.5Hz ~ 49Hz (adjustable stage delay)
• Overfrequency (81O): 51Hz ~ 52.5Hz (fast trip for severe over-speed)

Reverse Power Standard Setting

Industry unified practice: 2%–5% Pn for large grid-connected units; 5%–10% Pn for small standby diesel units

Common Protection Faults, Causes and Professional Solutions

Fault Phenomenon	Root Causes	Solutions
Trip during motor starting	High starting inrush current triggers overcurrent protection	Adjust inverse time curve, increase short-time delay, set inrush restraint
False earth fault alarms	CT polarity error, wrong wiring, system grounding resistance abnormality	Recheck secondary wiring, calibrate CT/PT polarity, test grounding system
Unexpected reverse power action	Fuel system fluctuation, governor instability, grid reverse surge	Optimize governor PID parameters, increase reverse power delay, adjust threshold
Frequent under-frequency tripping	Overloaded operation, fuel supply insufficient, governor aging	Reduce invalid load, maintain fuel system, recalibrate governor speed loop

Relay Testing & Commissioning Standards for Diesel Generator Protection Relays

FAT (Factory Acceptance Test)

Complete factory functional verification, logic simulation, and communication testing before delivery.

SAT (Site Acceptance Test)

On-site items: CT/PT polarity verification, trip circuit inspection, secondary injection test, interlock logic check.

Recommended Test Tools

• Secondary Injection Test Set
• Universal Relay Test Kit
• Power Quality Analyzer

Industry Compliance Standards

All diesel generator protection systems must comply with international authoritative standards:

• IEEE C37 Series (Relay Protection Standard)
• IEC 60255 (Measuring Relays and Protection Equipment)
• IEC 60034 (Rotating Electrical Machines)
• IEEE 1547 (Grid Interconnection Standard)
• NFPA 110 (Emergency and Standby Power Systems)

Standard compliance ensures project acceptance, grid connection approval, and long-term safe operation.

How to Choose a Qualified Relay Manufacturer

Core Evaluation Indicators for Buyers

• Complete ANSI protection function coverage
• Professional global technical support
• Complete engineering documents and setting manuals
• On-site commissioning guidance capability
• Overseas EPC project experience
• Global spare parts supply system

Chinese vs European Protection Relays

Chinese brand relays provide full functions, stable performance, lower cost, shorter delivery time, and flexible customized technical support, which is the most cost-effective solution for global EPC, generator integrators and overseas power projects.

FAQ – Frequently Asked Engineering Questions

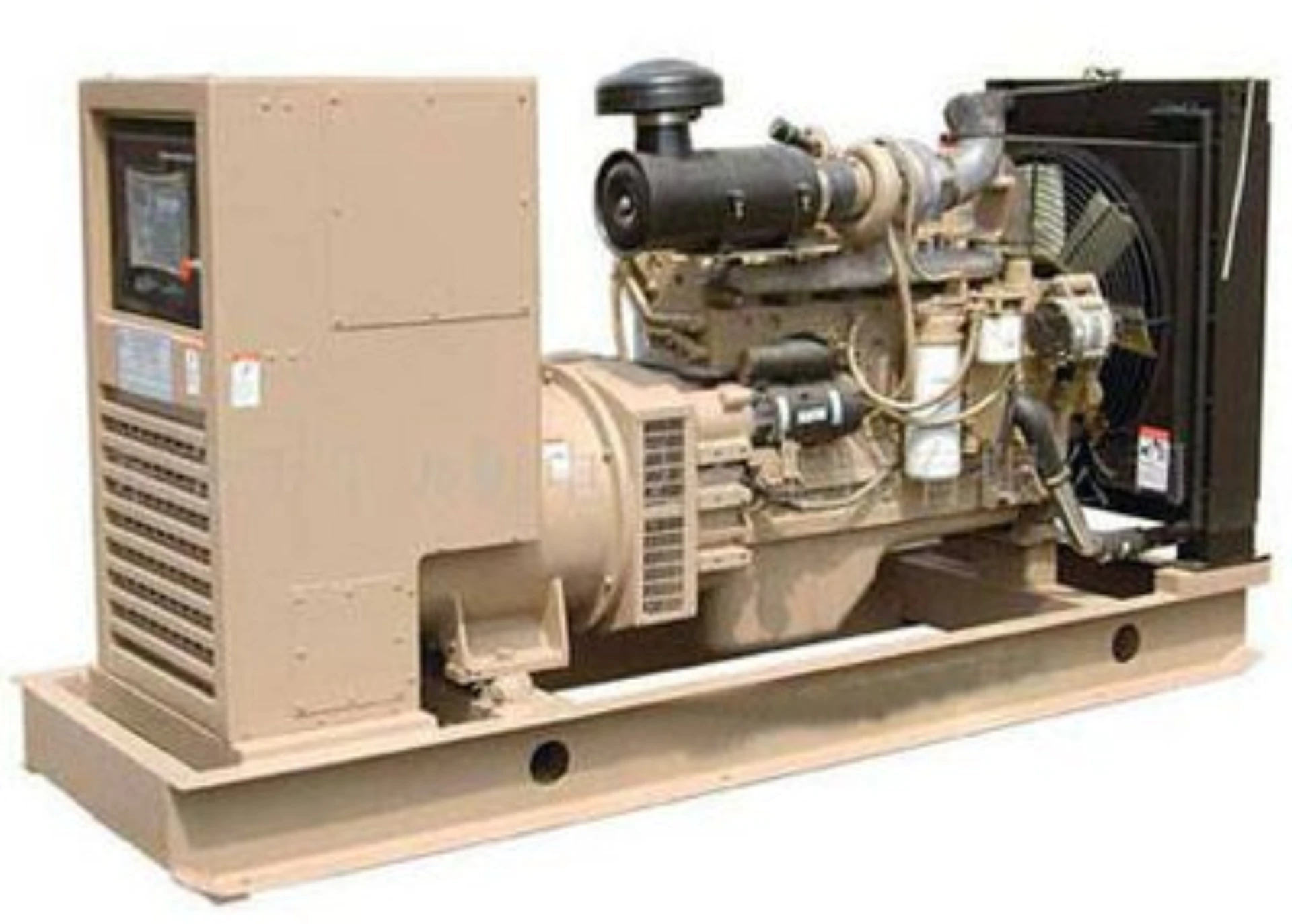

Q1: What protections does a 1MW diesel generator need?

A: 50/51 overcurrent, 50N/51N earth fault, 27/59 voltage protection, 81U/O frequency protection, 32 reverse power, and optional 46 negative sequence protection.

Q2: Is differential protection necessary for diesel generators?

A: Differential protection (87G) is mandatory for generators above 1MW and all grid-connected units; small standby generators can omit it according to project budget.

Q3: What is the standard reverse power setting?

A: 2%–10% of rated active power, adjusted according to unit size and operating mode.

Q4: How often should protection relays be tested?

A: Annual routine calibration; full secondary injection test after generator overhaul or grid reconstruction.

Q5: Which protocol is best for SCADA?

A: Modbus TCP for general projects; IEC 61850 for intelligent substation and high-end grid projects.

Conclusion

Diesel generator protection relays are the final safety barrier for power generation equipment. Correct relay selection, accurate parameter setting, standardized commissioning and regular maintenance can effectively extend generator service life, reduce failure rates, and ensure compliant and stable operation of standby and prime power systems.

Relay configuration must match generator capacity, voltage level, and grid-connected/island operating conditions. Reasonable fault solution experience can help engineers avoid common nuisance tripping and protection failure risks in actual projects.

Free Engineering Support & Custom Solution

If you need professional Diesel Generator Protection Relays selection, setting calculation, and protection scheme design, please provide your generator parameters:

• Generator rated capacity
• Voltage level
• CT/PT ratio
• Operating mode (standby / prime / grid-connected / island)

Our professional power engineering team will provide a full set of protection scheme + standard relay setting values for your project.
