Hydropower Relay Protection & Automation Solutions

Hydropower relay protection is the set of ANSI-numbered functions that clear faults on the generator, the step-up transformer and the outgoing feeder before a fault turns into a mechanical repair. Hydro units carry a longer list than thermal machines, because they also have to survive load rejection, overspeed and motoring.

A feeder relay in a hydro station looks like a feeder relay anywhere else. What changes is the company it keeps: the turbine governor, the excitation system and the unit LCU all act on the same machine, and a trip that ignores them turns a small fault into a long outage.

Hydropower Relay Protection at a Glance

• 87G: internal stator faults, and the only element that sees a turn-to-turn fault before it becomes an earth fault.
• 87T: step-up transformer internal faults, with inrush blocking so energising the transformer does not trip the unit.
• 40: loss of excitation, when the field collapses and the machine starts absorbing reactive power instead of supplying it.
• 32: reverse power, when the turbine stops driving and the generator motors on the grid.
• 46: negative sequence, which limits rotor heating when the load is unbalanced.
• 49 and 51V: stator overload and voltage-restrained overcurrent, both set against the generator capability curve.
• 64G and 64R: stator earth fault and rotor earth fault, the two insulation functions most often left out of an enquiry.
• 81 and 24: frequency, and volts per hertz, which decide whether the unit rides through islanding and over-excitation.

Function numbers follow ANSI/IEEE C37.2-2022. Relay performance and testing fall under IEC 60255-1:2022, and generator protection practice is set out in IEEE C37.102-2023. Station communication runs on IEC 61850-8-1 or IEC 60870-5-104, whichever the SCADA master already speaks.

Below, the protection is broken down by the equipment it guards, then the control layer that runs the unit, then what to send a supplier when you are pricing a retrofit.

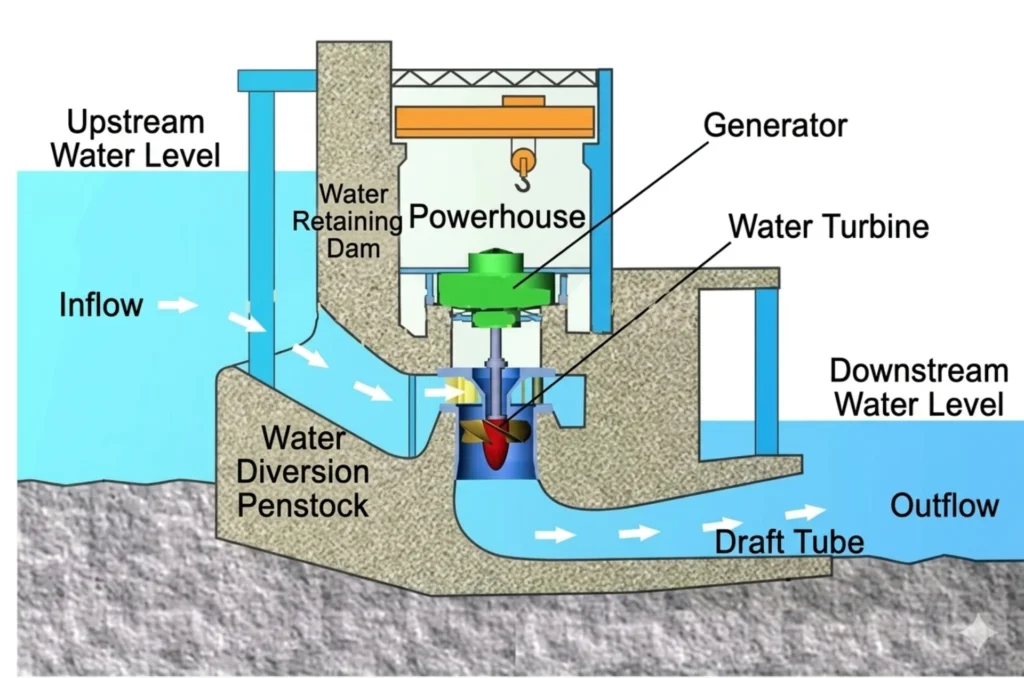

What is hydropower

A hydropower station converts water energy into electrical energy by using dams and water flow.

Most stations fall into three types: run-of-river, storage behind a dam, and pumped storage. The single line diagram is similar in all three. The settings are not: a run-of-river unit sits near continuous load, a peaking unit starts and stops several times a day, and a pumped-storage set runs in both directions and motors while it pumps.

Same diagram. Different duty.

What the Protection and Automation System Has to Do

The answer lies in a well-designed protection and automation system.

Modern hydropower plants require:

• Advanced relay protection devices
• Reliable PLC control panels
• Integrated SCADA monitoring systems
• Real-time communication networks
• Intelligent fault diagnosis capabilities

This article explains how to select the right hydropower relay protection and automation equipment for hydropower plants and addresses the most common concerns raised by international EPC contractors, utilities, consultants, and plant operators.

Why Hydropower Relay Protection Sits on the Critical Path

Hydropower stations contain expensive and mission-critical equipment such as:

• Generators
• Step-up transformers
• Auxiliary transformers
• Circuit breakers
• Busbars
• Transmission feeders
• Excitation systems
• Turbine control systems

Any electrical fault can result in:

• Generator damage
• Transformer failures
• Extended outages
• Production losses
• Safety risks

Hydropower relay protection systems continuously monitor electrical parameters and isolate faults before severe damage occurs.

Without proper protection, a minor fault can quickly escalate into a major plant shutdown.

Common Protection Challenges Faced by Overseas Hydropower Projects

Many international customers encounter the following problems:

Challenge 1: Which Hydropower Relay Protection Functions You Need

Questions often include:

• Which protection functions are required?
• Should numerical relays or conventional relays be used?
• How many protection layers are needed?

Challenge 2: Integration of Multiple Vendors

Many projects combine equipment from different manufacturers:

• Generators from Europe
• Switchgear from China
• PLC systems from Siemens
• SCADA software from third parties

Making four vendors talk to each other is where the schedule goes.

Challenge 3: Harsh Environmental Conditions

Hydropower plants are frequently located in:

• High-humidity environments
• Mountainous regions
• Tropical climates
• Remote locations

Protection equipment must operate reliably under these conditions.

Challenge 4: Lack of Remote Monitoring

Many older plants still depend on local operators.

Modern facilities require:

• Remote diagnostics
• Remote control
• Predictive maintenance
• Real-time fault analysis

Relay Protection Devices for Hydropower Plants

Hydropower relay protection is bought as four groups: generator, step-up transformer, outgoing feeder and busbar. Each group needs its own CT and VT inputs, and the four are rarely in one enclosure.

Four groups, four sets of CTs.

Generator Protection Relays

Generator protection is the most important protection function in a hydropower station.

Typical functions include:

ANSI Code	Protection Device	Function Description
87G	Differential Protection	Protects against internal stator winding faults
50/51	Overcurrent Protection	Detects excessive current conditions
64G	Earth Fault Protection	Detects insulation failures and grounding faults
59	Overvoltage Protection	Protects generators from excessive voltage
27	Undervoltage Protection	Protects equipment during abnormal operating conditions
81	Frequency Protection	Protects against frequency deviations caused by grid disturbances
32	Reverse Power Protection	Prevents generator motoring conditions
40	Loss of Excitation Protection	Detects field collapse and the reactive power reversal that follows it
46	Negative Sequence Protection	Limits rotor heating under unbalanced load
64R	Rotor Earth Fault Protection	Catches a first earth fault on the field winding before a second one shorts the rotor
24	Volts per Hertz Protection	Limits core over-fluxing during over-excitation and run-up

Transformer Protection Relays

Hydropower transformers require:

ANSI Code	Protection Device
87T	Differential protection
64REF	Restricted earth fault protection
50/51	Overcurrent protection
49	Thermal overload protection
63	Buchholz relay protection

These functions prevent catastrophic transformer failures and reduce maintenance costs.

Feeder Protection Relays

Outgoing transmission lines require:

• Overcurrent protection
• Earth Fault relay protection
• Directional protection relay
• Distance protection relay 21

Proper feeder protection improves system stability and fault isolation.

Busbar Protection Systems

Busbars represent critical connection points within the power station.

Busbar protection systems provide:

• Fast fault detection
• Selective tripping
• Enhanced personnel safety

Modern numerical busbar protection can isolate faults within milliseconds.

How to Select the Right Protection Relay

A hydropower protection relay is specified on the machine, not off the catalogue. The generator capability curve, the CT and VT inventory already in the plant, and the excitation ceiling decide which elements you actually need and which you are paying for twice.

Start from the capability curve, not the datasheet.

When selecting protection relays, consider the following factors:

Plant Capacity

Protection requirements differ between:

• Small hydro plants (<10 MW)
• Medium hydro plants (10–100 MW)
• Large utility-scale stations (>100 MW)

Communication Protocols

Modern relays should support:

• IEC 61850
• Modbus RTU
• Modbus TCP/IP
• IEC 60870-5-103
• DNP3

Communication compatibility reduces integration costs.

Expandability

Future expansion should be considered from the beginning.

Choose relays with:

• Modular I/O
• Firmware upgrade capability
• Additional communication ports

Reliability and Certification

Customers should verify:

• IEC standards compliance
• EMC performance
• Environmental testing certifications
• Utility project references

Hydropower PLC Industrial Control Systems

What Is a PLC Control Panel?

An electrical PLC control panel is the operational brain of the hydropower automation system: it holds the interlocks that decide when a unit may start, run and stop.

It reads the field signals, runs the sequence logic and drives the outputs for the governor, the excitation system and the inlet valve. The protection relays trip on their own; the PLC never decides a trip.

Main Components of PLC Control Systems and Control Panel

PLC CPU

Processes control logic and automation commands.

Digital Input Modules

Receive signals from:

• Limit switches
• Breakers
• Protection relays
• Alarm contacts

Digital Output Modules

Control:

• Circuit breakers
• Motor starters
• Solenoid valves

Analog Input Modules

Collect data from:

• Temperature sensors
• Pressure transmitters
• Flow meters
• Water level sensors

Communication Modules

Provide connectivity through:

• Ethernet
• Fiber optic networks
• IEC 61850
• Modbus TCP

HMI Touch Screen

Allows local operation and status monitoring.

Power Supply System

Provides reliable power to all automation equipment.

What Do PLC Controls Handle?

PLC systems typically control:

Category	Control Item	Core Function Description
Turbine Control	Turbine Governor Systems	1. Speed regulation. 2. Load control. 3. Water flow management.
Auxiliary System Automation	Auxiliary Equipment	Full automation of: 1. Cooling systems. 2. Lubrication systems. 3. Drainage pumps. 4. Ventilation systems.
Unit Sequence Control	Generator Start/Stop Sequences	Execute automatic startup and shutdown procedures to reduce operator workload
Operation Monitoring	Alarm and Event Recording	Automatically log all important operational events for subsequent fault analysis and operation review

PLC Control Unit Panel List (Examples)

No.	Equipment Name	Model & Specification	Unit	Quantity
–	Unit LCU Cabinet	VIP-9000JZP	Set	4
1	Multi-function Digital Display Meter	VIP-E24/C900DL AC400V 5A with RS485 Communication	Set	1
2	Digital Voltmeter	VIP-F/C900DL AC0-400V with RS485 Communication	Set	1
3	Digital Frequency Meter	VIP-V/C900DL AC0-400V with RS485 Communication	Set	1
4	DC Ammeter	VIP-I/C900DL Input DC0-75mV with RS485 Communication	Set	1
5	Communication Management Unit	VIP-961A (8 Serial Ports, 4 Ethernet Ports)	Set	1
6	Microcomputer Automatic Synchronizing Device	DZZB-502	Set	1
7	Synchronism Check Relay	DT-1/200 Front Panel Wiring	Set	1
8	Manual Synchronism Meter	MZ10	Piece	1
9	Intermediate Relay with Base	MY2N-GS DC24V	Set	48
10	Changeover Switch	LW12-16/5858.3	Piece	1
11	Changeover Switch	LW12-16/4.1366.4	Piece	1
12	Bi-color Indicator Light (Red/Green)	AD56-22SS/RG23	Piece	1
13	Push Button Switch	LAY50-22DS-20/K	Piece	1
14	Push Button Switch	LAY50-22D-40Z/R with Protective Cover	Piece	1
15	Flashing Buzzer (Yellow)	AD56-22SM/Y23 DC24V	Piece	1
16	Rotary Switch	LAY50-22DX-20CXS/K	Piece	3
17	Rotary Switch	LAY50-22DX-20CXS/Kffu	Piece	2
18	Push Button Switch	LAY50-22DX-22/W23	Piece	1
19	Isolation Transformer	BK70VA, 220V/220V	Piece	1
20	PS24V Power Supply	NDR-240-24V AC/DC 10A	Piece	2
21	PLC Processor Module ST60	6ES7 288-1ST60-0AA1	Set	1
22	DI/DO Expansion Module	6ES7 288-2DT32-0AA1	Piece	6
23	155 Interface Module	6ES7 155-6AA01-0BN0	Piece	1
24	16DI Module	6ES7131-6BH01-0BA0	Piece	4
25	Analog Input Module 8AI 4~20mA	6ES7 134-6GF00-0AA1	Piece	4
26	Active Base Module	6ES7 193-6BP00-0DA0	Piece	2
27	Standard Base Module	6ES7 193-6BP00-0BA0	Piece	6
28	Touch Screen with Software Programming	TPC1570Gn, 15.6″	Piece	1
29	Ethernet Switch	IES215 Unmanaged 5 Electrical Ports	Set	1
30	Power Socket	AC30-10530 10A/250V 5-Hole	Piece	1
31	Power Surge Protector	KDM/MD220-20	Piece	1
32	Miniature Circuit Breaker (MCB)	HG45Z-63 2P C3	Piece	10
33	Miniature Circuit Breaker (MCB)	HG45-63 2P C3	Piece	3
34	Miniature Circuit Breaker (MCB)	HG45-63 3P C1	Piece	2
35	Cabinet Interior Lighting	AC220V	Set	1
36	Control Cabinet and Accessories	2260800600mm	Set	1

For small hydropower stations, low cost PLC controllers are recommended. They have relatively low technical requirements and limited budgets, so entry-level models such as basic Siemens PLCs are more than sufficient for on-site operation.

Complete Production Process of Hydropower PLC Control Cabinet

1. Equipment Model Selection

According to project parameters, I/O point requirements, on-site operating conditions and types of PLC controls, PLC modules, electrical components, cabinet wires and other auxiliary materials are selected in compliance with hydropower industry standards to ensure equipment compatibility, anti-interference performance and operational stability.

2. Scheme Design

The PLC control panel design follows hydropower control and interlock protection requirements to finalize cabinet layout, circuits and strong/weak current isolation. It is equipped with dustproof, moistureproof and anti-interference measures, with optimized control logic, alarm and data transmission.

3. Drawing Design

Accurate electrical schematic diagrams, layout drawings, terminal diagrams and PLC control wiring diagrams with complete parameter and point marking are compiled and verified, providing official technical guidelines for production, commissioning and subsequent operation and maintenance.

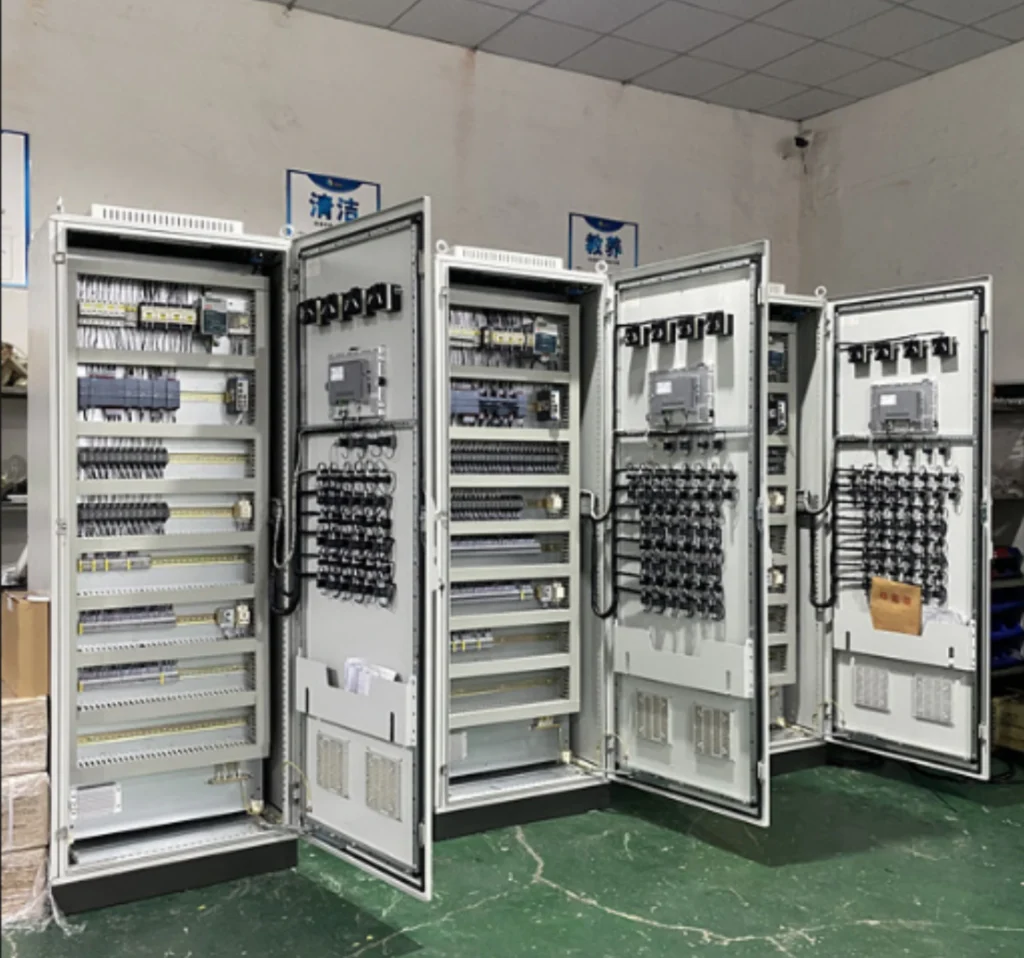

4. Cabinet Panel Assembly

Cabinet processing, component installation and wiring are carried out strictly in accordance with finalized drawings. Strong and weak current circuits are separated completely with standardized wiring and clear marking to avoid connection errors and ensure qualified assembly quality.

5. Complete Machine Testing

A full set of factory tests including insulation test, power-on test, function debugging, communication test and fault simulation are conducted to verify the control and protection performance. All defects are rectified and retested to ensure zero hidden quality risks.

6. Packaging and Delivery

Complete technical documents are sorted out. The equipment is cleaned and protected with waterproof and shockproof packaging. After information verification, products are delivered to ensure intact arrival at the project site.

Where the Unit LCU Meets the Protection

Hydro LCU protection is not a separate relay. The unit LCU cabinet carries the start and stop sequence, the annunciation and the interfaces to the governor, the excitation system and the inlet valve. The trip decision stays in the protection relay, on its own CT and VT inputs and its own DC supply.

A hydropower relay protection panel and the unit LCU often sit in the same lineup and are frequently bought on the same order. They are still two different documents: the relay schedule comes from the machine data and the short-circuit study, the LCU specification comes from the operating sequence the owner wants.

Three interfaces are worth writing down before either cabinet goes into production:

• Trip outputs: the relay drives the breaker coil directly. A trip routed through the PLC adds a scan time nobody has budgeted for.
• Interlocks: the LCU blocks a start while a protection alarm is standing. It does not clear the alarm.
• Signals upward: the relay sends events and disturbance records on IEC 61850 or IEC 60870-5-104, the LCU sends plant status, and both land in the same historian.

The relay trips. The LCU sequences.

Get the interface list wrong and the commissioning team finds it on site.

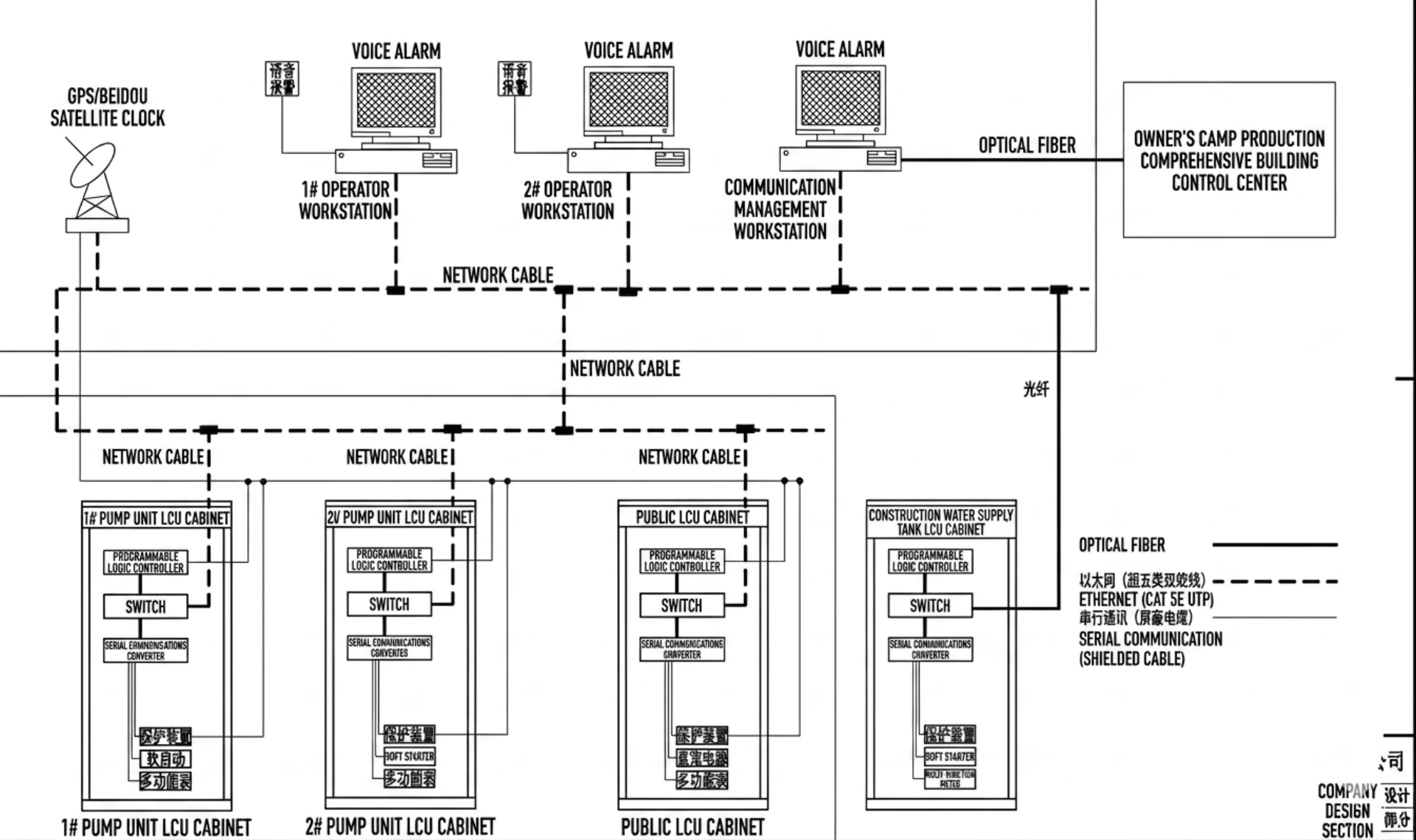

SCADA Systems for Hydropower Plants

Why SCADA Is Essential

SCADA (Supervisory Control and Data Acquisition) provides centralized monitoring and control.

Operators can access plant information in real time from a control room or remote location.

Core SCADA Functions

Real-Time Monitoring

Monitor:

• Voltage
• Current
• Power output
• Water levels
• Equipment status

Remote Control

Operators can:

• Open and close breakers
• Start generators
• Stop equipment
• Modify operating parameters

Alarm Management

SCADA systems instantly notify operators of abnormal conditions.

Historical Data Storage

Data trends help identify equipment degradation before failures occur.

Report Generation

Automatic reports support:

• Regulatory compliance
• Operational analysis
• Maintenance planning

Key Requirements for Modern Hydropower SCADA Systems

International customers increasingly request:

Cybersecurity Features

Protection against:

• Unauthorized access
• Malware attacks
• Network intrusions

Redundant Architecture

Ensures operation during:

• Server failures
• Communication failures
• Power interruptions

Multi-Station Management

Utilities often monitor multiple hydropower plants from one control center.

Mobile Access

Remote access via:

• Smartphones
• Tablets
• Web browsers

Integrated Protection and Automation Solutions

Hydropower automation solutions bundle the protection panels, the unit LCU, the station SCADA and the communication gateways under one set of drawings and one factory acceptance test. On a retrofit that matters more than the hardware: the interface between the new relays and the existing governor is where schedules slip.

Instead of purchasing individual components from multiple suppliers, many hydropower developers prefer integrated solutions.

Benefits include:

• Faster project implementation
• Reduced engineering costs
• Simplified commissioning
• Easier maintenance
• Single-source technical support

A complete solution typically includes:

• Generator protection panels
• Transformer protection panels
• Feeder protection panels
• PLC control cabinets
• SCADA software
• Communication gateways
• Engineering services
• FAT and SAT support

Case Study: Hydropower Plant Modernization Project

A hydropower station required upgrading its aging protection and automation infrastructure.

Challenges included:

• Frequent relay malfunctions
• Lack of remote monitoring
• Limited spare parts availability

The solution included:

• Numerical relay protection systems
• PLC-based automation panels
• Integrated SCADA platform
• IEC 61850 communication network

Results:

• Improved system reliability
• Faster fault diagnosis
• Reduced maintenance costs
• Enhanced operational efficiency

Frequently Asked Questions (FAQ)

What protection relays are required for a hydropower generator?

Typical functions include differential protection, overcurrent protection, earth fault protection, frequency protection and reverse power protection. On a hydro unit add 40 for loss of excitation, 46 for negative sequence and 64R for rotor earth fault. Which of them are mandatory depends on the machine rating: below roughly 10 MW most owners accept a reduced set, above it the utility usually specifies the full list.

Can PLC systems communicate with protection relays?

Yes. Modern PLCs speak IEC 61850, Modbus TCP and IEC 60870-5-104, so relay events, measurements and disturbance records reach the SCADA and the HMI without a protocol converter in between.

Is SCADA necessary for small hydropower plants?

Yes, but the scope should match the plant. A small run-of-river station needs alarm annunciation, a trend log and remote visibility of the unit status, not a redundant server pair. The cost that matters is the communication gateway and the engineering time, and both scale with the number of devices rather than with the rating of the plant.

What is a programmable logic controller (PLC)?

It is an industrial computer built for control duty: it reads input signals, runs a control program in a fixed scan cycle and drives outputs. In a hydropower station it runs the unit start and stop sequence, the auxiliary systems and the interlocks, and it reports plant status upward to SCADA.

How does a PLC controller work?

A PLC operates in a cyclic scanning mode, mainly including three stages: input sampling, program execution and output refresh. It collects field signal status, runs control logic and drives on-site actuators continuously to realize automatic control. Scan times on hydro unit sequences run in tens of milliseconds, fast enough for interlocks and far too slow for tripping.

Can existing hydropower stations be upgraded without major shutdowns?

In most cases, modernization can be implemented in phases to minimize operational interruptions. The usual order is one unit at a time: new protection panel and LCU first, then the communication gateway, then the SCADA master, with the old panel left live until the new one has passed its site acceptance tests.

How long does a complete hydropower protection and automation project take?

Depending on project size, engineering, manufacturing, testing and commissioning typically require several months. A single-unit retrofit on standard panels runs about four to six months from order to site acceptance. A multi-unit station with a new SCADA master and a new communication network takes longer, and most of that time goes into data collection, not manufacturing.

Does the unit LCU replace the protection relay?

No. The LCU runs the sequence and the interlocks; the protection relay decides the trip. They share the same cabinet lineup and often the same order, but the relay keeps its own CT and VT inputs, its own DC supply and its own trip outputs to the breaker coil. Putting the trip through the PLC adds a scan time that no protection study accounts for.

Conclusion

Reliable relay protection and automation systems are the foundation of modern hydropower plant operation. Properly selected protection relays, PLC control panels, and SCADA systems improve safety, reduce downtime, and maximize energy production.

For EPC contractors, utilities and plant owners, the saving is in the interfaces: one supplier for the protection panels, the LCU and the SCADA means one set of drawings and one factory acceptance test to argue over.

New station or retrofit, the order of work is the same: fix the single line, fix the CT and VT inventory, then choose the relays. Send the machine data, the CT ratios and the SCADA protocol, and the engineering team comes back with a relay schedule, a setting sheet and an I/O list you can price against.

Related Reading

• Generator protection relay: the ANSI function list for the machine itself, element by element.
• Hydropower plant upgrade solution, Vietnam: a retrofit carried out unit by unit without a station shutdown.
• ATN-400 SCADA system: the station-level layer above the unit LCU.
• PLC control panel for hydropower and pumping stations: the controlgear side of the same scope.
• Generator and transformer protection cabinets: panel-level scope when the two are bought together.
• Low-voltage generator protection relay: for small units where a full ANSI list is not justified.
• Excitation panel: the other cabinet the protection has to agree with.
• Generator protection relay panel, ANSI 11: a packaged panel for single-unit stations.
• Step-up transformer protection: 87T setting notes for the station transformer.
• Pump station automation and PLC control relays: the same LCU pattern on the pumping side.

Technical References

These are the documents hydropower relay protection panels are checked against on overseas projects.

Check the edition on the datasheet.

Source	What it covers	Type	Edition
IEC 60255-1	General requirements for measuring relays and protection equipment	IEC standard	2022
IEC 60255-187-1	Functional requirements for differential protection, the 87G and 87T elements	IEC standard	2021
ANSI/IEEE C37.2	Device numbers used throughout this page	IEEE standard	2022
IEEE C37.102	Guide for AC generator protection	IEEE guide	2023
IEC 61869-2	Current transformers: accuracy classes for protection duty	IEC standard	2012
IEC 61850-8-1	Station communication: mapping to MMS and GOOSE	IEC standard	2011+AMD1:2020
IEC 60870-5-104	Telecontrol over TCP/IP for the SCADA link	IEC standard	2006+AMD1:2016
IEC 61131-3	PLC programming languages used in the unit LCU	IEC standard	2025
IEC 61439-2	Controlgear assemblies: temperature rise, short-circuit withstand and clearances	IEC standard	2020
IEC 60529	IP degrees of protection for cabinets in wet plant areas	IEC standard	1989+AMD1:1999+AMD2:2013

Older references. Datasheets and enquiry packages still in circulation cite IEC 60255-1:2009 and IEEE C37.102-2006. Both have been superseded, and a compliance statement against either one is worth querying before it goes into a contract.
