Modbus, IEC 101/103/104 and IEC 61850: Substation Protocols Compared
What are the main substation communication protocols?

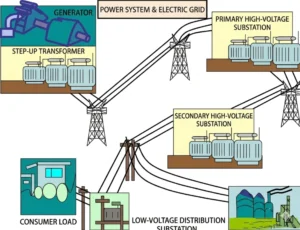

Substation communication protocols split into three families, and the choice follows the job. Modbus moves simple telemetry between a relay and a meter; IEC 60870-5-101, 103 and 104 carry telecontrol and protection event data over serial or TCP/IP; IEC 61850 models the whole bay and carries protection traffic over Ethernet. Most substations run two of the three. The families are not interchangeable: a protocol that carries a meter reading without trouble can still be wrong for a trip command, because latency and failure mode differ. All three come from IEC TC 57, with telecontrol in the IEC 60870-5 series and IEC 61850 a separate series with its own data model and conformance testing under IEC 61850-10. Modbus is not an IEC standard at all, which is why two devices can agree on the wire and still disagree on what a register means. Setting review and quotation within 12 hours, MOQ 1, 7-15 working days.
Substation communication protocols split into three families, and the choice follows the job: Modbus moves simple telemetry between a relay and a meter, IEC 60870-5-101, 103 and 104 carry telecontrol and protection event data over serial or TCP/IP, and IEC 61850 models the whole bay and carries protection traffic over Ethernet. Most substations run two of the three.
Substation Communication Protocols at a Glance
- Modbus: master-slave polling over RS-485 or TCP, one register map per device, no object model.
- IEC 60870-5-101: serial telecontrol, the default RTU-to-control-centre link on legacy networks.
- IEC 60870-5-102: transmission of integrated energy totals, built for metering data rather than protection.
- IEC 60870-5-103: serial interface to protection equipment, for event records, disturbance files and settings.
- IEC 60870-5-104: the same telecontrol service wrapped in TCP/IP, for networked SCADA.
- IEC 61850: object models, MMS for client-server, GOOSE for peer-to-peer tripping, SV for sampled values.
- CAN bus: a short-distance field bus inside one cubicle, not a station-level protocol.
- Selection by voltage: 10 kV panels usually stay on Modbus, 35 kV to 110 kV bays move to IEC 103 or IEC 104, 220 kV and above to IEC 61850.
Three families, four jobs.
The families are not interchangeable. A protocol that carries a meter reading without trouble can still be wrong for a trip command, because the latency and the failure mode are different.
All three families come from IEC TC 57. The telecontrol side sits in the IEC 60870-5 series; IEC 61850 is a separate series with its own data model, and its own conformance testing in IEC 61850-10. Modbus is not an IEC standard at all, which is why two Modbus devices can agree on the wire and still disagree about what a register means.
The sections below go protocol by protocol, then compare them job by job, then map them onto voltage class and switchgear.

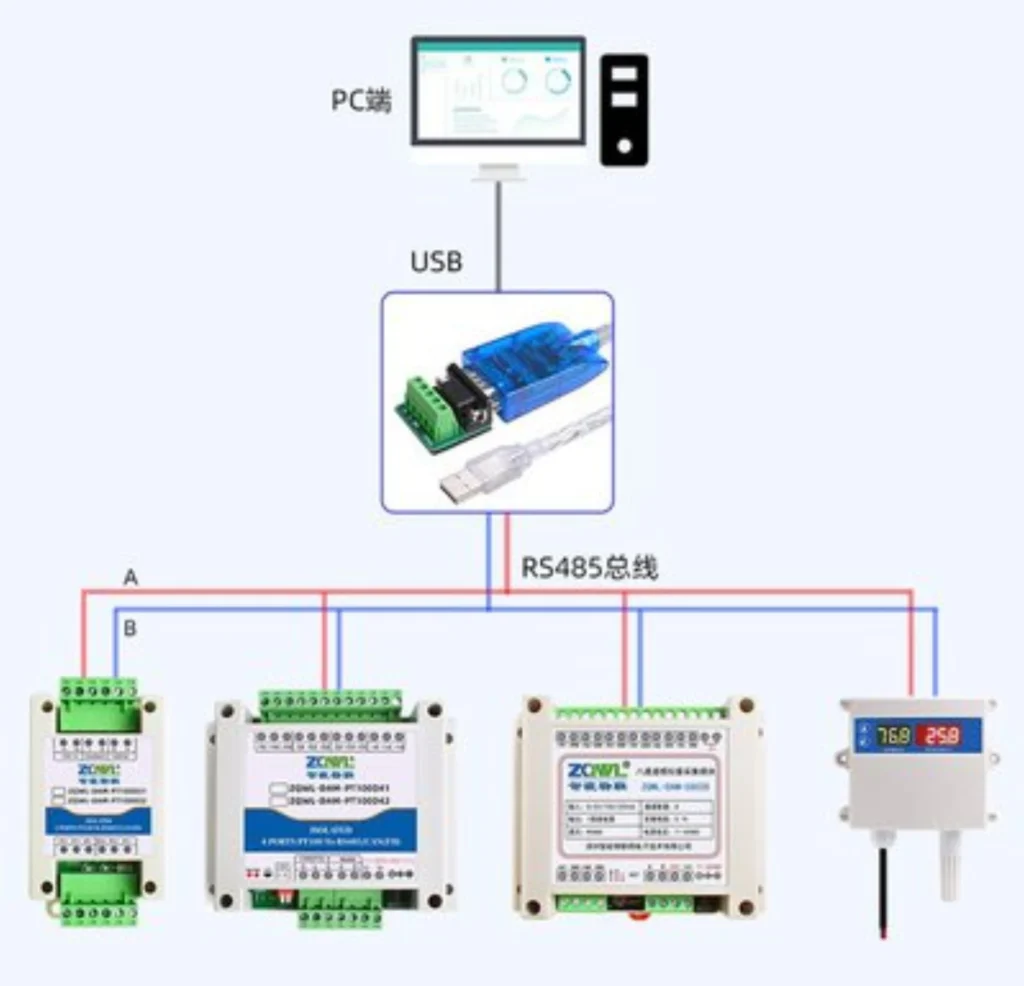

What Is Modbus Communication?
MODBUS is a serial communication protocol widely used in industrial automation, power systems, building control, and other fields.
In simple terms, it defines a set of rules that allow one master device (such as a computer, PLC, or SCADA system) to read or control data from multiple slave devices (such as protection relays, power meters, smart meters,switchgear operation display device,variable frequency drives, and sensors) over the same communication line.
Selecting a relay for a live project?
Send the system voltage, CT ratio and tripping scheme. Our engineers confirm the model and reply within 12 hours.

Modbus is available in two mainstream variants: Modbus RTU and Modbus TCP, which differ in transmission medium, communication structure and applicable scenarios.
Modbus function codes
Note: Some manufacturers customize Modbus function codes for their proprietary equipment, leading to inconsistent protocol definitions across different brands.
| Function Code | Function Name | Application Description |
|---|---|---|
| 01 | Read Coils | Read digital output status |
| 02 | Read Discrete Inputs | Read field digital input signals |
| 03 | Read Holding Registers | Fetch protection setting values and analog parameters, widely used for relay protection devices |
| 04 | Read Input Registers | Obtain real-time sampled data like voltage and current |
| 05 | Write Single Coil | Single-point remote switching control |
| 06 | Write Single Register | Download single device parameter |
| 15 | Write Multiple Coils | Batch remote digital output control |
| 16 | Write Multiple Registers | Batch modification of equipment setting values |
What Is Modbus RTU?
Modbus RTU is a binary-coded serial communication protocol commonly operating over RS485 bus. Adopting master-slave architecture and CRC checksum, it delivers compact and high-efficiency data transmission, ranking among the most widely used communication solutions for field industrial devices.
What Is Modbus TCP?
Modbus TCP is an Ethernet-based version of the Modbus protocol that uses TCP/IP for high-speed communication between industrial devices over standard network infrastructure.
Modbus Rtu vs Tcp
| Comparison Item | Modbus RTU | Modbus TCP |
|---|---|---|
| Transmission Medium | RS485 shielded twisted pair | Ethernet cable |
| Underlying Protocol | Serial port physical layer | TCP/IP Ethernet protocol |
| Message Format | Native binary coding | Modbus messages encapsulated into TCP packets |
| Network Topology | Bus-type, master-slave structure | Star Ethernet topology |
| Communication Speed | Max 115200 bps baud rate | 100Mbps/1Gbps high-speed Ethernet |
| Transmission Distance | Long distance up to kilometers | Max 100m per cable, extendable via switches |
| Typical Application | Field relay protection & onsite instruments | Central substation networking & remote monitoring |
Can vs Modbus
| Comparison Item | CAN Bus | Modbus(RTU/TCP) |
|---|---|---|
| Underlying Standard | ISO 11898 | Modbus RTU(RS485)/Modbus TCP(Ethernet) |
| Physical Interface | CAN_H/CAN_L twisted pair | RS485 or RJ45 Ethernet |
| Network Mode | Multi-master architecture | Modbus RTU: Master-slave; Modbus TCP: Client-server |
| Error Handling | Built-in hardware error detection & retransmission | Depend on upper-layer program CRC check |
| Transmission Speed | Up to 1Mbps(short distance) | RTU: Max 115200bps; TCP: 100Mbps |
| Core Application | Automotive, new energy, industrial servo | Power relay protection, PLC, substation automation |

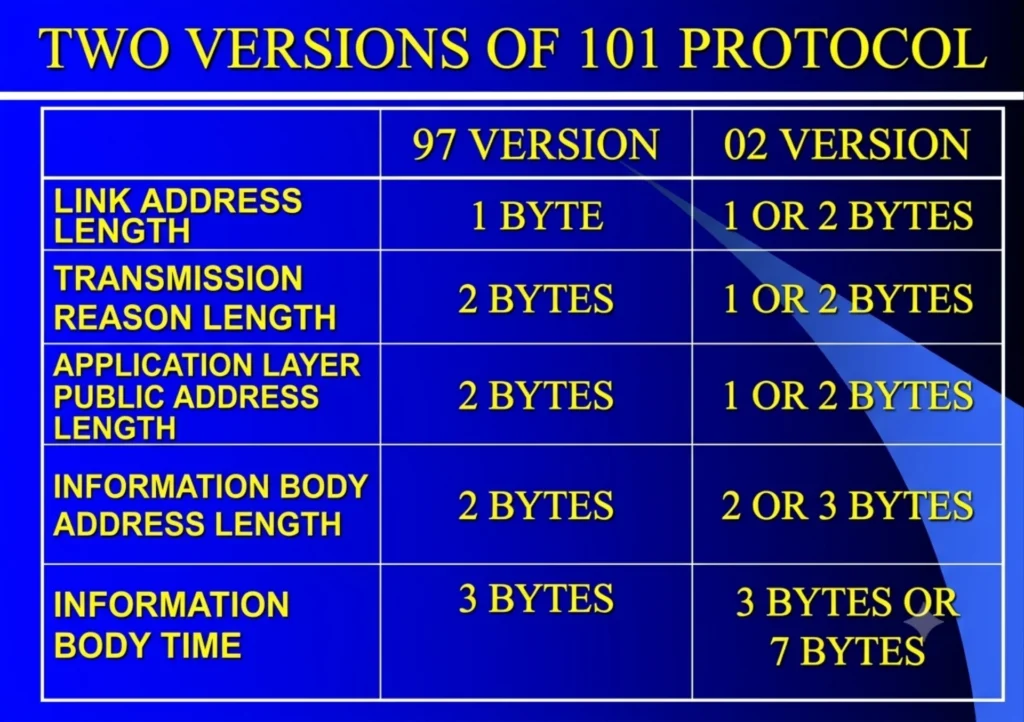

IEC 60870-5-101 (IEC 101 Protocol)

Where IEC 101 Came From
Full name: IEC 60870-5-101, released in the 1990s. It is the fundamental serial telecontrol protocol of the IEC 60870-5 family.
What IEC 101 Is For
Designed for low-speed serial links including RS-232/RS485 and power line carrier, it adopts master-slave polling communication mechanism.
Where IEC 101 Is Used
It realizes data communication between master stations (dispatching & monitoring center) and RTUs installed in substations, distribution stations and power plants.
It transmits four types of remote control data: remote measurement, remote signal, remote control and remote regulation, supporting conventional power SCADA systems.
Applicable scenarios: point-to-point and point-to-multipoint medium/low-speed, medium-short distance power automation communication.
IEC 60870-5-102 (IEC 102 Protocol)
Where IEC 102 Came From
Full name: IEC 60870-5-102, a dedicated protocol specified for electrical energy data transmission.
What IEC 102 Is For
Developed based on the IEC 60870-5-101 framework, it focuses on reliable transmission of integrated total values and electric energy metering data.
Where IEC 102 Is Used
Used for data communication between master stations, electricity meters and energy acquisition terminals.
Transmission content: forward/reverse active/reactive energy, maximum demand and time-of-use metering data.
IEC 102 Application Scenarios
Specialized communication for power system electricity billing, line loss calculation and energy management.
IEC 60870-5-103 (IEC 103 Protocol)
Where IEC 103 Came From
Full designation: IEC 60870-5-103, a dedicated communication protocol for relay protection equipment.
What IEC 103 Is For
Extended from the IEC 60870-5-101 specification, it defines proprietary data models for protection events, fault oscillography, protection setting values and related information.
Where IEC 103 Is Used
Facilitates communication between dispatch/supervision master stations and substation relay protection devices as well as fault recorders.
Transmitted data: protection operation events, fault reports, equipment status, setting value read/write data and oscillographic recording data.
IEC 103 Application Scenarios
Widely deployed in relay protection information substations and fault information management systems to enable rapid fault location and troubleshooting in power grids.
Main Disadvantages
Diversified requirements of protection functions: protection principles, operating logics, alarm classifications and setting structures vary greatly among protection devices from different manufacturers. The standard IEC 103 specification cannot cover all manufacturer-specific proprietary functions.

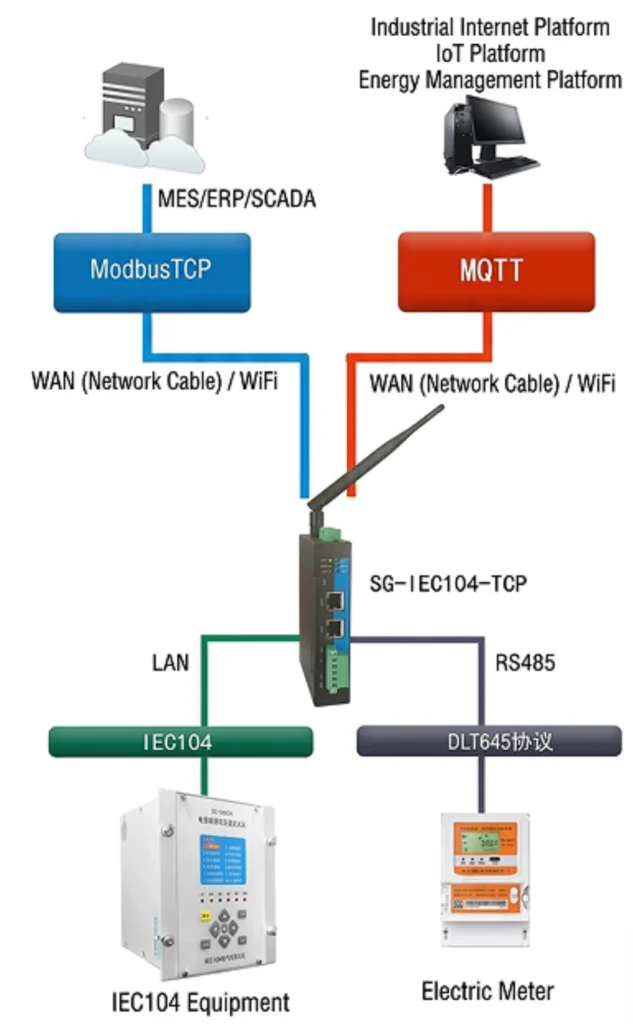

IEC 60870-5-104 (IEC 104 Protocol)

Where IEC 104 Came From
Full designation: IEC 60870-5-104, released around 2000. It is the TCP/IP network-based version of IEC 60870-5-101.
What IEC 104 Is For
Running over TCP/IP with default port 2404, it follows the client-server architecture and enables multi-node high-speed network communication.
Where IEC 104 Is Used
It handles Ethernet data exchange between dispatching master stations, substation automation systems (SAS) and power plant monitoring systems.
It transmits the same four-remote data as IEC 101, featuring larger bandwidth, superior real-time performance and excellent expandability.
IEC 104 Application Scenarios
It serves as the mainstream communication protocol for smart grids, digital substations and wide-area power monitoring networks.

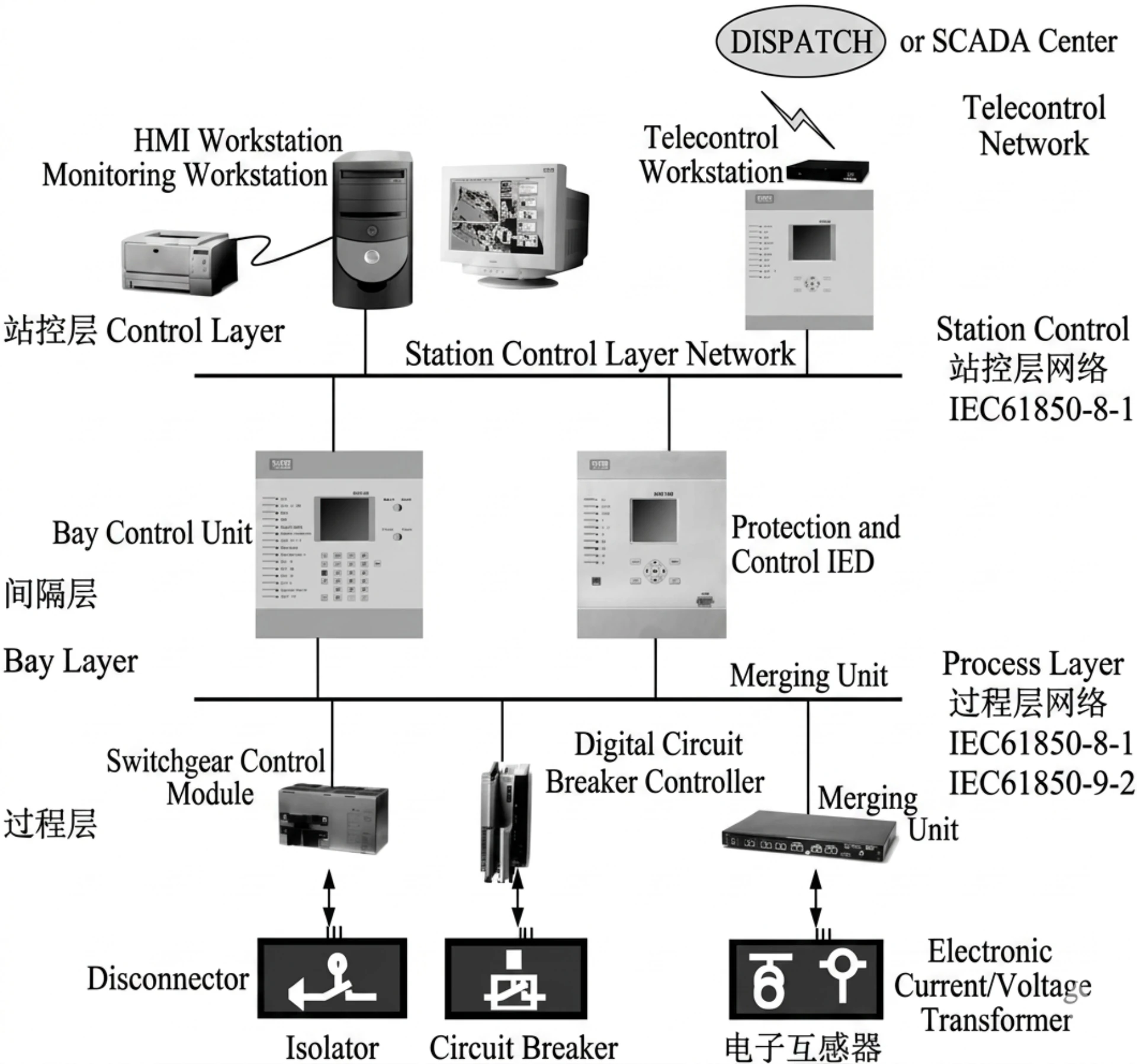

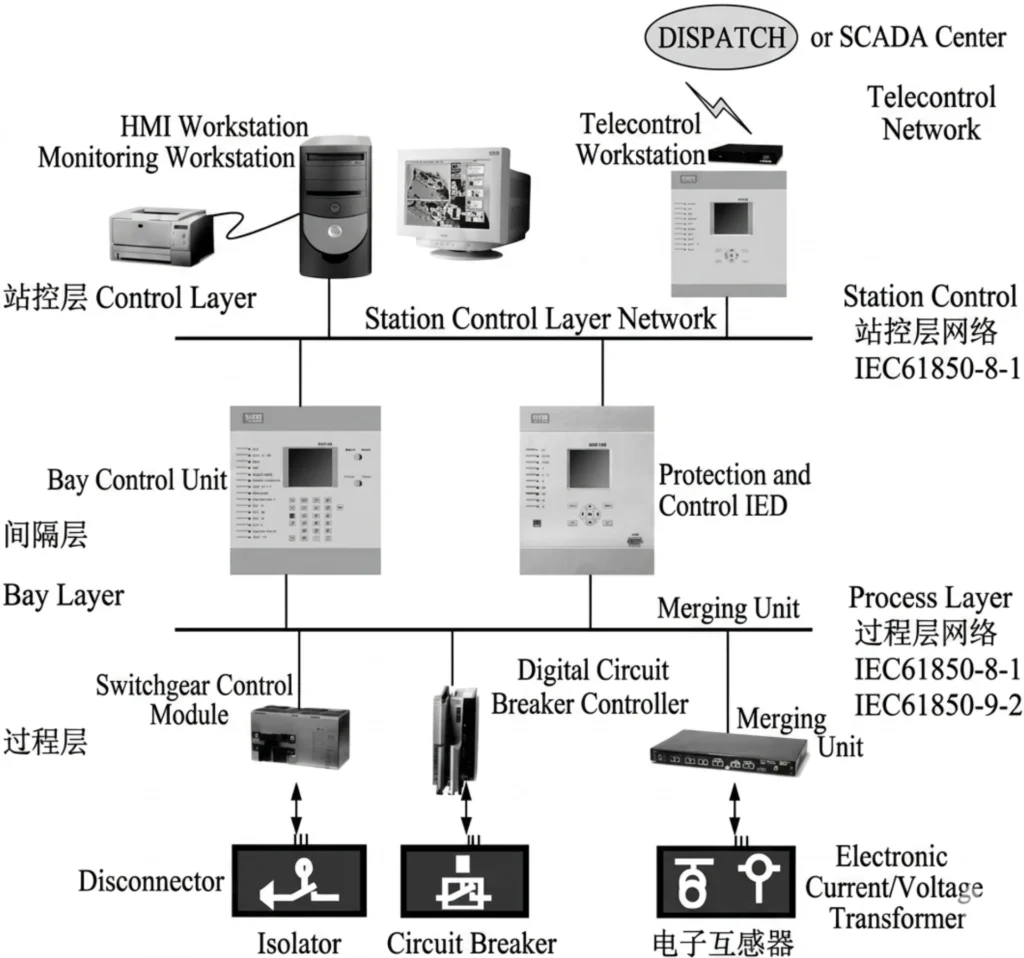

IEC 61850

Where IEC 61850 Came From
Full name: IEC 61850, formally released in 2004 by IEC TC57, succeeding traditional IEC 60870-5-103 serial protocol and UCA2.0 standard, the core international specification for digital substation communication.
What IEC 61850 Is For
Built entirely on Ethernet architecture with object-oriented unified data modeling; defines three core communication services: MMS, GOOSE and SV, adopts publisher-subscriber & client-server hybrid mode, solves multi-vendor IED interoperability which serial protocols cannot realize.
- MMS: TCP/IP client-server for non-real-time configuration & SCADA data
- GOOSE: Layer 2 multicast, ≤4ms latency for protection interlock & trip signal
- SV: Layer 2 sampled value transmission for synchronized CT/VT digitized data Equipped with XML-based SCL configuration language (ICD/CID/SCD files) for standardized project debugging.
Where IEC 61850 Is Used
Realizes full digital communication among dispatching master station, substation automation system (SAS), intelligent electronic devices(IED), merging units and smart primary equipment.
Covers full data transmission including four remote signals, protection trip commands and synchronized analog sampling data, cancels massive traditional hard wiring inside substations.
IEC 61850 Application Scenarios
Mandatory mainstream protocol for digital & intelligent substations, widely deployed in smart grid, new energy power station, distributed energy storage and industrial high-voltage power monitoring system.
Substation Communication Protocols: Job by Job
Four jobs cover most of what a substation has to move. Pick the protocol per job, not per project, because no single family covers all four.
| Job | Modbus RTU / TCP | IEC 101/103/104 | IEC 61850 |
|---|---|---|---|
| Meter and status telemetry | Default choice; the register map is the whole contract | 101 and 104 carry it up to the control centre | MMS reports, self-describing |
| Event and disturbance retrieval | Slow, and the register layout is vendor-specific | 103 is specified for protection event records | Full model, files over MMS |
| Interlocking and trip transfer | Not suitable; polling has no bounded worst case | Not suitable; no peer-to-peer service | GOOSE, peer-to-peer multicast |
| Sampled values from merging units | Not supported | Not supported | SV over the process bus |
Latency is the deciding row.
Reading the table: Modbus substation communication handles the first row well and nothing above it. IEC 101/103/104 covers the first two, which is why it still dominates retrofit work. Only IEC 61850 covers all four, which is why it gets specified on new 220 kV bays and is rarely retrofitted onto 10 kV panels.
Polling has no worst case. GOOSE does.
Protocol Selection for Relay Protection Devices
Main Protocols & Applications
- IEC 61850 Fit ≥110kV intelligent substations, renewable booster stations & high-end overseas projects; Ethernet/fiber with MMS/GOOSE/SV, cross-brand compatible.
- IEC 60870-5-103 For 35kV~110kV traditional substations & retrofit; RS485/Ethernet, fast spontaneous alarm upload for protection.
- Modbus RTU/TCP 10kV distribution, Southeast Asia & Africa projects; low cost, wide PLC compatibility, polling-only data fetch.
- IEC 60870-5-104 Exclusive for substation remote data upload to dispatch center via TCP.
- DNP3 Export to North America, Middle East, Australia; replace 103/104 for bay & remote communication.
Selection Tip: DNP3 for America/Middle East, Modbus for SEA/Africa, IEC61850/103 for China-standard projects.
Selection by Voltage Grade
| Voltage | Preferred | Alternative |
|---|---|---|
| ≥220kV | IEC 61850 | IEC 104 |
| 35~110kV | IEC 103 | Modbus TCP |
| 10kV | Modbus | IEC 103 (high-end) |
Switchgear Matching
- HV switchgear: IEC103 / IEC61850 for relay & display unit
- LV panel meters: unified Modbus RTU/TCP
Conclusion
Substation communication protocols are chosen per job, not per budget. Modbus moves telemetry, IEC 101/103/104 moves telecontrol and protection event data, and IEC 61850 carries the bay and process bus including tripping. Start from what has to cross the wire in under a second, then work downwards.
Where two families meet, run both. A Modbus meter front end feeding an IEC 104 RTU is a normal design, not a compromise.
Match the protocol to the job first. The voltage class only confirms it.
FAQ
1. What is IEC 61850?
IEC 61850 is an international standard for substation automation and digital substation communication. It defines how protection, control, measurement, and monitoring devices communicate in modern smart substations.
2. What is IEC 61850 communication protocol?
IEC 61850 is a vendor-neutral, Ethernet-based communication protocol for power substations. It uses standard data models, services, and messaging (MMS, GOOSE, SV) to enable interoperability between devices from different manufacturers.
3. How does IEC 61850 work?
IEC 61850 describes every device as a set of logical nodes, then maps those nodes onto real services: MMS for client-server reporting, GOOSE for fast peer-to-peer messages, and sampled values for current and voltage from merging units.
- Uses standard object models (logical nodes, data objects)
- Runs over Ethernet (no traditional RS-485/serial)
- Divides substation into three levels: station, bay, process
- Uses real-time messages for protection and control
- Supports device interoperability across vendors
4. What is IEC 61850 GOOSE messaging?
GOOSE (Generic Object-Oriented Substation Event) is a fast, real-time message used for:
- Tripping commands
- Interlocking
- Protection signals
- Fast event transfer, multicast and low latency, which is what makes it usable for tripping.
5. How to implement IEC 61850?
Typical steps:
- Design substation architecture (station / bay / process level)
- Use Ethernet network (redundant recommended)
- Configure IEDs with standard logical nodes
- Set up MMS for SCADA, GOOSE for protection, SV for sampling
- Test interoperability and real-time performance
- Deploy cybersecurity and redundancy
Technical References
Every entry below is an IEC publication with a checkable edition. Substation communication protocols change edition quietly, and the edition on the test report is the one an acceptance team asks for.
| Source | What it covers | Type | Edition |
|---|---|---|---|
| IEC 60870-5-101 | Telecontrol over serial links; the RTU-to-control-centre protocol | International Standard | 2003+AMD1:2015 |
| IEC 60870-5-102 | Transmission of integrated totals, for energy metering data | International Standard | 1996 |
| IEC 60870-5-103 | Serial interface to protection equipment for event and disturbance data | International Standard | 1997 |
| IEC 60870-5-104 | Telecontrol over TCP/IP, the networked form of 101 | International Standard | 2006+AMD1:2016 |
| IEC 61850-8-1 | Mapping to MMS and ISO/IEC 8802-3 for station and bay level communication | International Standard | 2011+AMD1:2020 |
| IEC 61850-10 | Conformance testing, including GOOSE performance measurement | International Standard | 2012+AMD1:2025 |
Editions drift. Numbers do not.
Older specifications still in circulation cite IEC 60870-5-101:1995 and IEC 61850-8-1:2004. Both have been superseded; a device built to the newer edition is not automatically interoperable with one built to the older one.
