IEC 61850 Transformer Protection Relay

As a supplement to transformer main and backup protection, the digital main transformer integrated monitoring and control device realizes remote measuring, remote signaling, remote control and remote regulation. It is generally panel-mounted with transformer differential relay protection and other transformer protection relays.

Communication Mode:Optional: RS-485, CAN bus, IEC 61850 , IEC 60870-5-103

Download datasheet (PDF)

Send your requirements, we will quote for you within 12 hours​
MOQ: 1 setLead time: 7-15 working daysPayment: T/T, L/C, Western Union, PayPalWarranty: 12 monthsTrade terms: EXW, FOB, CIF, DDUCertification: CEDifferent rating, protocol or mounting: send the specification and we confirm before you order.

Description

The IEC 61850 transformer protection relay is a numerical protection device designed for transformer protection and digital substation applications. It combines transformer differential, overcurrent, earth fault and voltage protection with IEC 61850 communication, supporting GOOSE, MMS and integration with substation automation and SCADA systems.

Key Features

  • IEC 61850 communication
  • GOOSE peer-to-peer messaging
  • MMS communication
  • Transformer differential protection
  • Overcurrent and earth fault protection
  • Fault recording and SOE
  • Ethernet communication
  • SCADA integration
  • Flexible protection settings

What Is an IEC 61850 Transformer Protection Relay?

An IEC 61850 transformer protection relay is a numerical transformer protection device that exchanges protection, measurement, status and control information over the IEC 61850 station bus instead of relying only on hard-wired contacts. The difference is practical rather than cosmetic: GOOSE messages replace copper between the relay and the breaker failure or interlocking logic, sampled values can replace copper from merging units, and the relay appears in the station configuration as a standardised object rather than a block of terminals. Units in this range cover differential, overcurrent, earth fault and voltage elements for two-winding and three-winding transformers, with the communication stack integrated rather than added by a gateway. Typical duty is a digital substation or a retrofit where the existing hard-wired scheme has run out of spare cores. Each relay is delivered with an SCL description for the system integrator, and the point-to-point test plan is documented before handover. Configuration review and quotation within 12 hours, MOQ 1, 7-15 working days.

IEC 61850 Functions

FunctionApplication
MMSSCADA monitoring and data exchange
GOOSEHigh-speed interlocking and trip signals
EthernetSubstation communication network
SOEEvent recording
Fault RecordsPost-fault analysis
Remote SettingProtection management

EC 61850 GOOSE for Transformer Protection

IEC 61850 GOOSE enables fast peer-to-peer communication between protection relays, bay controllers and other intelligent electronic devices without relying on conventional hardwired signal connections for every interlocking or trip signal.

Conventional SubstationIEC 61850 Digital Substation
Hardwired signalsGOOSE messages
More copper wiringEthernet network
Point-to-point connectionsPeer-to-peer communication
Difficult expansionEasier system expansion
More wiring maintenanceCentralized network management

IEC 61850 Transformer Relay for SCADA Integration

The relay can exchange transformer protection and measurement data with the substation automation system through IEC 61850 communication. Depending on the project configuration, monitoring data can include phase current, voltage, active power, reactive power, protection status, alarms, SOE and fault records.IEC 61850 Transformer Relay for SCADA Integration

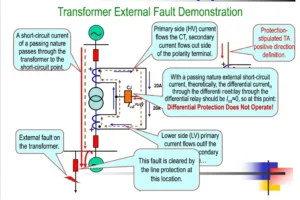

Transformer Protection Functions

ANSIFunction
87T87T relay
50/51Overcurrent Protection
50N/51NEarth Fault Protection
46Negative Sequence Protection
49Thermal Overload Protection
27Undervoltage Protection
59Overvoltage Protection
24Overexcitation Protection

IEC 61850 Transformer Relay vs Conventional Protection Relay

ItemConventional RelayIEC 61850 Relay
CommunicationSerial / hardwiredEthernet
InterlockingHardwiredGOOSE
SCADAConventional protocolsIEC 61850 MMS
Signal wiringMore wiringReduced wiring
Data sharingLimitedNetwork-based
Digital substationLimitedDesigned for digital substations
EngineeringMore point-to-point wiringIEC 61850 system engineering

Outline and Installation Dimensions

Autony AS-series digital protection relay front panel, 150 by 121 mm, LCD display and control keys AST-441H relay rear terminal arrangement Line distance protection relay enclosure Panel cut-out dimension drawing for the 441H series relay

Power Transformer Protection Devices Setting List

No.Display NameRangeStepRemarks
1Tap Setting
1.1Automatic Tap Regulation1/01: Enable, 0: Disable
1.2Manual Tap Regulation1/01: Enable, 0: Disable
1.3Remote Tap Regulation1/01: Enable, 0: Disable
1.4Tap Position Display via YX1-71/01: Show tap position, 0: Common remote signal input
1.5Tap Transceiver Connection1/01: BCD code display, 0: 7-gear corresponding display
1.6Maximum Tap Position1-321
1.7Boost Delay0-120.00s0.01s
1.8Buck Delay0-120.00s0.01s
1.9Boost Setting Value50-120.00V0.01V
1.10Buck Setting Value50-120.00V0.01V
2Measurement Setting
2.1380V Measurement1/01: On, 0: Off
2.21A Corresponding Current1/01: On, 0: Off
2.3Non-electrical Quantity1/01: With non-electrical quantity, 0: Without non-electrical quantity

Applications

  • Digital Substations – Fully digitalized substations with process bus and station bus communication.

  • Power Transformer Protection – Primary protection for all types of power transformers.

  • Industrial Substations – Reliable protection for manufacturing, mining, oil & gas facilities.

  • Renewable Energy Substations – Solar and wind farm collection substations.

  • Solar Power Plants – Protection for main step-up transformers in PV plants.

  • Wind Power Plants – Protection for collector and main transformers in wind farms.

  • Grid Modernization Projects – Upgrading aging grid infrastructure with smart protection.

  • Substation Retrofit Projects – Replacing obsolete relays with modern numerical protection.

Key Focus Area:

  • IEC 61850 Retrofit – Upgrading conventional substations to IEC 61850‑compliant digital substations. This is a long‑tail niche with fragmented but steady global demand. It requires deep technical expertise in both legacy systems and IEC 61850 standards, making it less competitive than mass‑market products. By focusing on retrofit projects, we can build a strong reputation through successful case studies and gradually capture this sustainable, high‑value market segment.

Why Choose This IEC 61850 Transformer Protection Relay?

IEC 61850 Digital Communication

Designed for integration into IEC 61850-based substation networks.

Integrated Transformer Protection

Supports differential, overcurrent, earth fault and other transformer protection functions.

Reduced Wiring

GOOSE-based communication can reduce conventional hardwired interlocking and signaling.

SCADA Integration

Supports real-time monitoring and event data exchange.

Fault Recording

Provides event and fault information for troubleshooting and post-fault analysis.

Project Support

Technical support is available for relay selection, configuration, communication mapping and project documentation.

FAQ

1. What is an IEC 61850 transformer protection relay?

A numerical protection relay that complies with the IEC 61850 communication standard, enabling interoperability and digital communication between substation IEDs.

2. What transformer protection functions does the relay support?

It typically supports differential protection, overcurrent protection, earth fault protection, overload protection, temperature monitoring, Buchholz relay, and more – depending on the specific model.

3. Does the relay support IEC 61850 GOOSE?

Yes. It supports GOOSE (Generic Object Oriented Substation Event) for fast trip and status signal exchange between IEDs without traditional hardwiring.

4. Can an IEC 61850 transformer relay connect to SCADA?

Yes. It connects to SCADA via the MMS protocol for uploading measurements and status data, and for receiving remote control commands.

5. What is the difference between IEC 61850 and conventional transformer protection relays?

Conventional relays rely on hardwired connections for signal transmission, while IEC 61850 relays use digital communication (GOOSE/MMS), reducing cabling, simplifying design, improving reliability, and enabling device interoperability.

6. Is this relay suitable for digital substations?

Absolutely. IEC 61850 compliance is a core requirement for digital substations, allowing seamless integration with other intelligent electronic devices (IEDs).

7. Does the relay support MMS communication?

Yes. MMS (Manufacturing Message Specification) is used for supervisory data exchange between the relay and SCADA or HMI systems.

8. Can the relay exchange trip and interlocking signals through GOOSE?

Yes. GOOSE allows the relay to directly exchange trip, block, interlock, and other binary signals with other IEDs, replacing conventional hardwiring with fast and reliable digital communication.

9. How do I place an order?

Send your specification through the contact form, by email to sale@relayprotect.com or on WhatsApp. We check the rating, the protocol and the wiring against your application, confirm the model, and return a quotation. No account or registration is needed.

10. What is the minimum order quantity?

The minimum order quantity is one unit. A single unit can be ordered for evaluation or for a pilot installation, and project quantities are quoted separately.

11. What is the lead time?

Standard models ship in 7 to 15 working days after the order is confirmed and payment is received. Custom ratings, protocols or mounting arrangements are confirmed in writing before the order is placed, so the delivery date is known in advance.

12. Which payment methods and trade terms do you accept?

Payment by T/T, L/C, Western Union or PayPal. Trade terms are EXW, FOB, CIF and DDU. Every relay carries a 12-month warranty.


Need pricing, a datasheet or a wiring drawing?

Tell us your application – rated voltage, CT/VT ratios and the protection functions you need – and we will send a quotation with the matching model. Free technical guidance, parameter setting and commissioning support included.
