Capacitor Bank Unbalance Protection: Working Principle, Schemes and Relay Settings

Capacitor bank unbalance protection is the ANSI 46, 47 or 64N function defined by ANSI/IEEE C37.2 and applied under IEEE C37.99-2012: it detects a failed capacitor element or a blown fuse by measuring the negative-sequence current or the neutral displacement voltage that the lost capacitance produces, then signals or trips before the healthy sections overvoltage.

Capacitor Bank Unbalance Protection at a Glance

• ANSI function numbers: 46 (negative-sequence unbalance current), 47 (phase voltage balance) and 64N (neutral displacement overvoltage).
• Fault it catches: one failed capacitor element or unit, an internal or external blown fuse, and an element short circuit inside the can.
• Sensing input: residual neutral current from CTs, or neutral displacement voltage from the VT/PT secondary.
• Detection limit: loss of a single element in a multi-element unit, far below what the ANSI 50/51 overcurrent element can see.
• Alarm stage: unbalance near 60% to 70% of the trip value, inspection window for O&M crews, no breaker trip.
• Trip stage: unbalance past the residual-capacitor overvoltage limit, breaker opens the whole bank.
• Time delay: a fixed 0.5 s to 1.0 s so the element rides through inrush and switching transients.
• Standards: IEEE C37.99-2012, IEEE 18-2002, IEC 60871-1 and the IEC 60255 relay series.

ANSI 50 and ANSI 51 will not see a single lost element. Removing one element from a series section shifts the voltage distribution, so the healthy sections of the same string run overvoltage while the bank reactive output moves by well under one percent. That redistribution is the fault the unbalance element is there for, and it is why capacitor bank protection specifies a dedicated unbalance function on every shunt bank feeder.

Function numbers and limits come from published standards. IEEE C37.99-2012, the IEEE Guide for the Protection of Shunt Capacitor Banks, sets the scheme and the continuous voltage limit; IEEE 18-2002 covers capacitor duty and withstand; ANSI/IEEE C37.2-2008 assigns the function numbers; IEC 60871-1 governs shunt capacitors for a.c. power systems; and the IEC 60255 series defines the measuring relays that implement them.

This article then walks the detection principle, the four common schemes, the ANSI 46 current path against the ANSI 47 or 64N voltage path, the setting rules for pickup, alarm, trip and time delay, what happens after the relay operates, and how to specify the relay.

What Is Capacitor Bank Unbalance Protection?

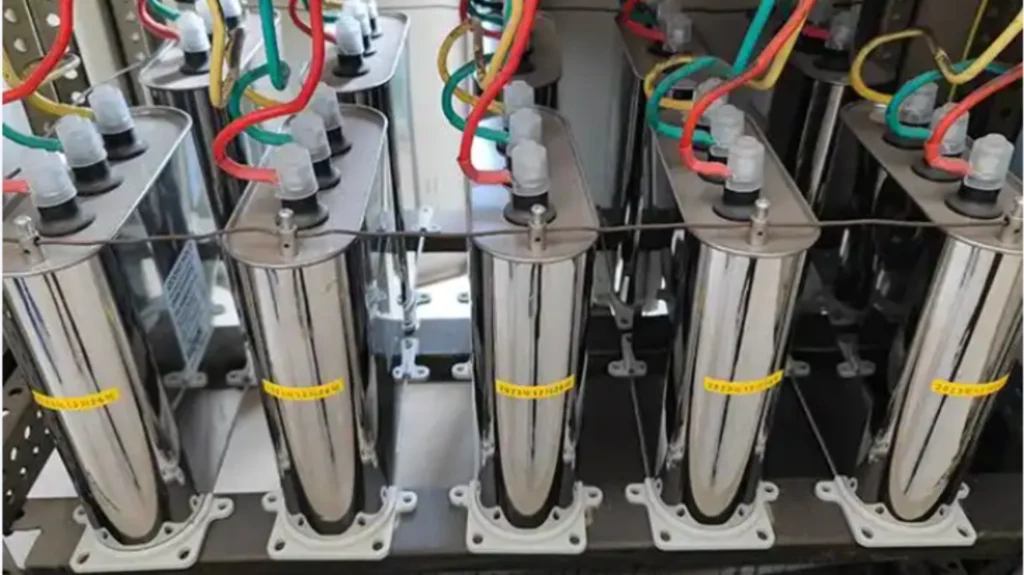

Normal Capacitor Bank Condition

A healthy capacitor bank operates in a fully balanced three-phase state, as IEC 60871-1 requires of a new bank at commissioning. All three phases feature consistent capacitance, equal operating current and phase voltage, zero neutral displacement voltage, and negligible neutral current. Under rated operating conditions, each capacitor unit bears uniform voltage stress, ensuring stable reactive power output and long-term safe operation.

What Happens When a Capacitor Unit Fails?

Capacitor bank unbalance originates from local capacitance deviation, and it is exactly the condition the ANSI 46, ANSI 47 and ANSI 64N functions were written for. Once individual capacitor elements or units fail or their fuses blow, the total capacitance of the corresponding phase drops, breaking the three-phase balance. This asymmetry generates unbalanced current and neutral offset voltage, which is captured and calculated by protection relays to trigger alarm or trip actions.

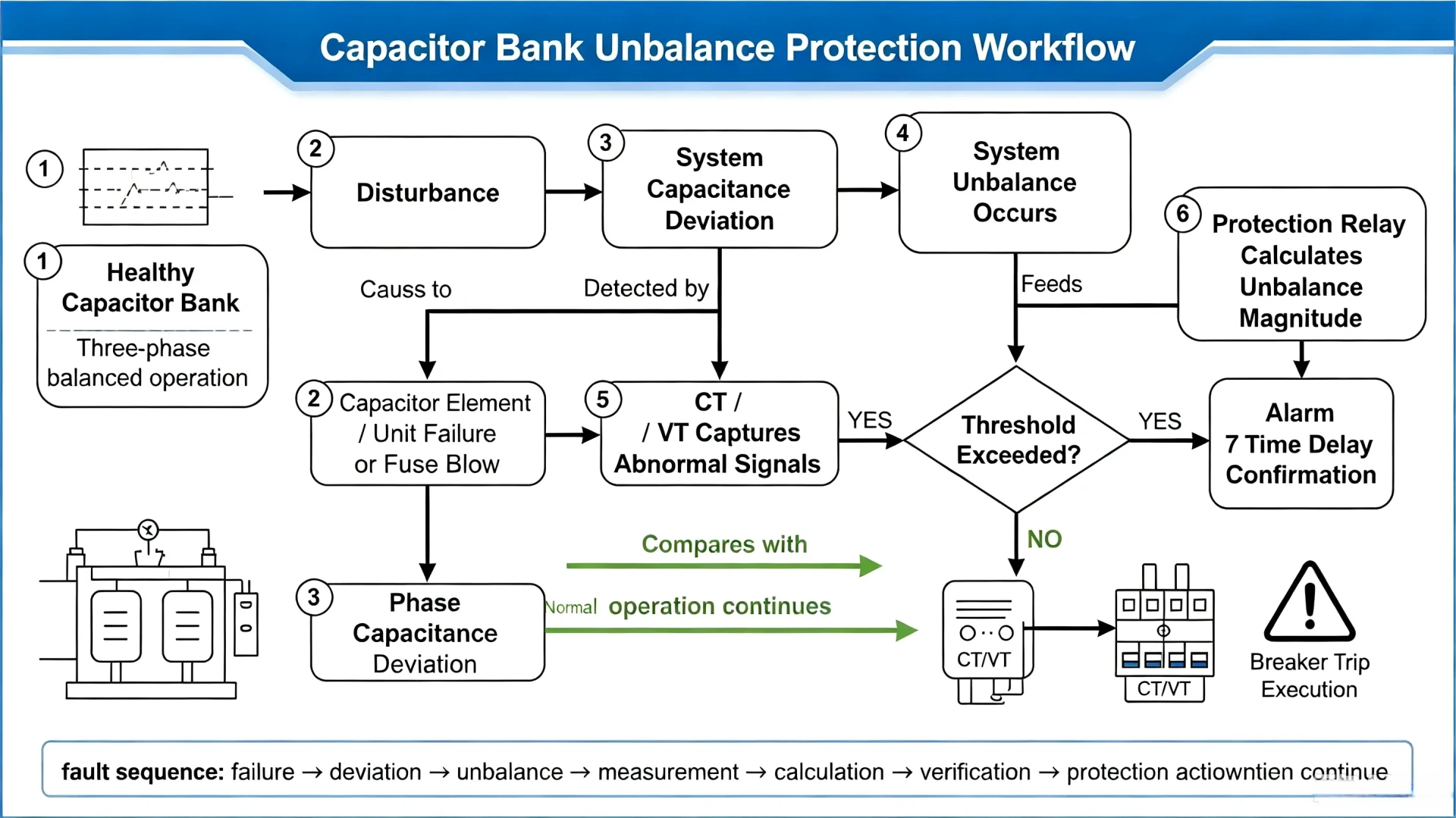

The complete fault evolution workflow is as follows:

Healthy capacitor bank → Three-phase balanced operation → Capacitor element/unit failure or fuse blow → Phase capacitance deviation → System unbalance occurs → CT/VT captures abnormal signals → Protection relay calculates unbalance magnitude → Threshold exceeded → Time delay confirmation → Alarm or breaker trip execution

A key professional distinction in power system operation is separating inherent natural unbalance and fault-related unbalance. Misjudgment of the two causes false protection actions or missed faults, which is the core basis for relay setting compensation.

Fault-Related Unbalance (Abnormal)

• Failed Capacitor Elements: Internal breakdown or aging of individual capacitor elements causes partial capacitance loss, forming subtle unbalance that is difficult for conventional overcurrent protection to detect.
• Failed Capacitor Units: Complete short-circuit or open-circuit failure of single capacitor units leads to obvious three-phase capacitance deviation, the main cause of severe unbalance faults.
• Blown Capacitor Fuses: Fuses blow to isolate faulty units during minor faults, resulting in phase capacitance reduction and unbalanced operating parameters.
• System Voltage Unbalance: Grid-side three-phase voltage asymmetry caused by load imbalance or line faults induces passive unbalance in capacitor banks.

How Does Capacitor Bank Unbalance Protection Work?

Unbalance protection relies on high-precision sensor sampling and relay algorithm calculation, the way an ANSI 46 or ANSI 47 element is evaluated inside a numeric relay. It captures tiny current and voltage deviations caused by capacitance changes, filters normal system fluctuations through fixed time delays, and accurately identifies genuine capacitor faults. The complete technical workflow is standardized as follows:

Capacitor Bank Operation → Unbalance deviation occurs after unit/element failure → CT/VT real-time signal acquisition → Protection relay unbalance algorithm calculation → Compare with preset pickup threshold → Confirm duration exceeds time delay threshold → Output alarm or trip command → Circuit breaker action → Fault isolation

Current-Based Unbalance Detection

This method uses current transformers (CTs) to collect neutral current or differential current between parallel branches, and it is the current form of the ANSI 46 function. When phase capacitance is inconsistent, three-phase operating current deviates, generating residual unbalance current. The relay calculates the unbalance degree via current deviation and triggers protection actions. It features high sensitivity and is suitable for double-star and multi-branch capacitor bank configurations.

Voltage-Based Unbalance Detection

This method uses voltage transformers (VTs/PTs) to monitor neutral displacement voltage or zero-sequence voltage, and it is the voltage form of ANSI 47 and ANSI 64N. Fault-induced capacitance deviation causes neutral point potential offset, producing unbalanced voltage signals. It applies to star-connected capacitor banks, especially ungrounded star configurations with obvious neutral voltage offset characteristics.

Unbalance Signal Processing

The relay filters transient interference signals such as switching inrush current and lightning impulse through digital filtering algorithms. It eliminates natural unbalance deviation via built-in compensation functions and only retains fault-effective unbalance signals for accurate calculation, effectively avoiding false protection operation.

Alarm and Trip Logic

Adopts two-stage protection logic: the ANSI 46 element signals first and minor unbalance that does not cause overvoltage damage triggers an alarm to remind O&M personnel of inspection; severe unbalance that may lead to cascading capacitor overvoltage failure triggers a trip command to isolate the faulty bank and protect remaining healthy units.

Common Capacitor Bank Unbalance Protection Schemes

Capacitor bank unbalance schemes follow the bank wiring, and no single scheme covers every layout. The scheme selection strictly depends on the capacitor bank’s wiring configuration, voltage level, and series-parallel design. The following table summarizes mainstream industry protection schemes with standardized application scenarios:

Protection Scheme	Detection Principle	Typical Application Scenario
Neutral Voltage Unbalance	Monitors neutral point displacement voltage caused by three-phase capacitance asymmetry	Ungrounded/grounded star-connected capacitor banks, widely used in medium and high-voltage substation capacitor banks
Neutral Current Unbalance	Detects residual neutral current generated by phase current deviation	Single-star multi-branch capacitor banks, simple wiring and low transformation cost
Double-Star Unbalance	Calculates differential current between two neutral points of double-star branches	Large-capacity high-voltage capacitor banks with double-star configuration, high detection accuracy
H-Bridge Unbalance	Monitors current deviation of each bridge arm in H-bridge segmented configuration	Segmented H-bridge capacitor banks for filter and reactive power compensation integrated systems

Current-Based vs Voltage-Based Unbalance Protection

Current-based and voltage-based protection are the two mainstream unbalance detection technologies in the power industry, mapped to ANSI 46 and to ANSI 47 or ANSI 64N respectively. Their applicable scenarios and technical characteristics differ significantly, providing a direct basis for engineering scheme selection:

Influencing Factor	Current-Based Protection	Voltage-Based Protection
Measured Quantity	Unbalance residual current / branch differential current	Neutral displacement voltage / zero-sequence voltage
Matching Sensor	Current Transformer (CT)	Voltage Transformer (VT/PT)
Core Application Condition	Suitable for multi-branch, double-star bank configurations	Suitable for star-connected banks with obvious neutral offset characteristics
Key Technical Consideration	CT wiring accuracy, consistent transformation ratio, avoid sampling deviation	VT installation position, broken delta wiring correctness
Detection Sensitivity	High, suitable for tiny capacitance deviation detection	Medium, stable for severe fault detection

Learn more about capacitor differential voltage protection relays, the ANSI 87V function used for 87V capacitor unbalance protection on star-point circuits.

How to Set Capacitor Bank Unbalance Protection? (Engineering Standard)

Capacitor unbalance relay settings are project specific, and no universal pickup value applies to all capacitor banks. All protection settings must be customized based on actual project parameters to avoid false operation or refusal to operate. Core influencing factors include capacitor bank rated capacity, wiring configuration, series/parallel unit quantity, CT/VT transformation ratio, natural unbalance value, and manufacturer design parameters.

Unbalance Pickup Setting

The pickup threshold of the ANSI 46 or ANSI 47 element is set based on the maximum allowable unbalance of the capacitor bank. It must exceed the inherent natural unbalance of the bank and be lower than the unbalance value that causes residual capacitor overvoltage (110% rated voltage, per IEEE standard). For most engineering scenarios, the pickup value is calibrated according to the unbalance degree caused by the failure of 1–2 single capacitor units.

Alarm Setting

Set a low threshold for early warning. When the unbalance degree reaches 60%–70% of the trip threshold, the relay triggers a persistent alarm to notify O&M teams to arrange offline inspection and replacement of faulty units during low-load periods, eliminating hidden faults in advance.

Trip Setting

The trip threshold is the safety bottom line for capacitor bank operation. It is strictly set based on the critical value where residual capacitors will suffer overvoltage damage. Once the unbalance degree exceeds the limit, the relay immediately outputs a trip command to isolate the faulty bank and prevent cascading equipment damage.

Time Delay Setting

A fixed time delay (0.5s–1.0s) on the ANSI 46 and ANSI 47 outputs is mandatory to avoid transient interference. It filters abnormal signals such as switching inrush current, short-term grid voltage fluctuation, and lightning impulse, ensuring protection action only for persistent genuine faults.

CT/PT Ratio Matching

The relay’s sampling ratio must strictly match on-site CT/VT parameters. Mismatched transformation ratios will lead to unbalance calculation deviation, resulting in inaccurate threshold judgment and protection malfunction.

Natural Unbalance Compensation

Before formal commissioning, test and record the inherent natural unbalance value of the capacitor bank in healthy operation, and input it into the relay for zero-point compensation. This eliminates static deviation and improves the accuracy of fault unbalance identification.

What Happens After Unbalance Protection Operates?

Alarm Stage

When minor unbalance occurs without overvoltage risk, the relay only sends an audio-visual alarm and remote signal without tripping. The capacitor bank continues operating normally, reserving an inspection window for O&M personnel.

Trip Stage

When severe unbalance exceeds the safety threshold, the relay commands the circuit breaker to trip, cutting off the capacitor bank from the grid instantly. This prevents overvoltage burnout of remaining capacitor units and avoids expanded power system faults.

Inspection and Fault Identification

After tripping, isolate the equipment and check for blown fuses, damaged capacitor units, and loose wiring. Locate faulty units by comparing three-phase capacitance and unbalance data recorded by the relay.

Reset and Return to Service

Replace faulty components, test three-phase balance again, confirm unbalance data returns to the normal range, reset the relay protection signal, and restore the capacitor bank to grid operation.

Capacitor Bank Unbalance Protection Relay

A professional dedicated capacitor bank protection relay integrates the ANSI 46, ANSI 47 and ANSI 64N unbalance functions together with ANSI 50/51 overcurrent, earth fault, over/undervoltage and fault recording functions. It supports multiple unbalance protection schemes, adapts to star, double-star, and H-bridge capacitor bank configurations, and provides accurate algorithm calculation and flexible parameter setting functions.

ASC-441H Capacitor Bank Protection Relay is a specialized device for shunt capacitor bank protection. It complies with IEEE C37.99 protection standards and the IEC 60255 relay series, supports current/voltage dual unbalance detection, built-in natural unbalance automatic compensation, adaptive threshold calculation, and two-stage alarm/trip logic. It is widely used in substation reactive power compensation systems of EPC projects, realizing full-cycle safe protection of capacitor banks.

Capacitor bank protection relay

Capacitor Bank Unbalance Protection FAQ

1. What causes capacitor bank unbalance?

It is divided into natural unbalance (manufacturing tolerance, wiring deviation, non-fault stable state) and fault unbalance (capacitor element/unit failure, blown fuses, grid voltage unbalance). Only fault unbalance requires protection intervention.

2. What is the purpose of capacitor bank unbalance protection?

It detects tiny capacitance asymmetry faults that cannot be identified by overcurrent protection, avoids overvoltage damage of residual capacitors, prevents equipment burnout and power grid faults, and ensures the safe and stable operation of reactive power compensation systems.

3. How is capacitor bank unbalance detected?

It is realized through CT sampling unbalance current (ANSI 46) or VT sampling neutral displacement voltage (ANSI 47 / ANSI 64N). The relay calculates the real-time unbalance degree via professional algorithms and judges whether to trigger alarm or trip actions combined with threshold and time delay settings.

4. What is the difference between capacitor unbalance protection and overcurrent protection?

Overcurrent protection only detects short-circuit and overload faults with large current changes. Unbalance protection targets tiny capacitance deviation faults with no obvious current surge, which is the dedicated and core protection for capacitor bank early faults.

5. How is capacitor bank unbalance protection set?

Settings are customized based on project parameters: confirm natural unbalance compensation value first, set alarm/trip thresholds according to capacitor overvoltage limit, match CT/VT transformation ratio, and configure 0.5s–1.0s anti-interference time delay. No universal fixed value is applicable to all projects.

Conclusion

Capacitor bank unbalance protection is the one element that sees a single failed capacitor unit. ANSI 50 and ANSI 51 handle short circuit on the feeder, ANSI 59 and ANSI 27 watch the bank voltage, and only the ANSI 46, ANSI 47 or ANSI 64N unbalance path reports the lost capacitance and the overvoltage it puts on the sections still in service.

Set the pickup above the natural unbalance recorded at commissioning, set the alarm between 60% and 70% of the trip value, keep the 0.5 s to 1.0 s delay, and match the CT and VT ratios exactly. Do that and a blown fuse becomes a scheduled replacement instead of a burned-out bank on the next switching operation.
