Locked Rotor Protection Relay: ANSI 48/51LR Setting and Application

Table of Contents

What is a locked rotor protection relay?

A locked rotor protection relay is the device that trips a motor when a start never completes. ANSI 48 watches the start as a sequence, ANSI 51LR adds a locked-rotor overcurrent stage and the ANSI 49 thermal model carries the heat the winding picked up before the trip. A motor circuit breaker cannot do this job: it reads current magnitude alone, so a locked-rotor draw of six to eight times rated current looks like a heavy but harmless starting inrush. The relay separates the two with time – a normal start is short, a stuck rotor is not – and trips before sustained 6-8 times full-load current wrecks the winding in seconds. Three numbers settle the setting: starting current, locked-rotor current and safe stall time, all read from the same motor datasheet. Function numbers come from ANSI/IEEE C37.2-2022, thermal limits from IEEE C37.96-2012 and the inverse-time shape of 51LR from IEC 60255-151:2009. Setting review and quotation within 12 hours, MOQ 1, 7-15 working days.

A locked rotor protection relay is the device that trips a motor when a start never completes. ANSI 48 watches the start as a sequence. ANSI 51LR adds a locked rotor overcurrent stage on top of that, and the ANSI 49 model carries the heat the winding picked up before the trip.

At a glance, on one motor feeder:

  • ANSI 48 trips on sequence, not on current: the start did not finish inside the delay.
  • ANSI 51LR is the inverse time locked rotor overcurrent element, armed only during the start.
  • ANSI 49 is the thermal model that carries the heat from this start and the ones before it.
  • Pickup sits at 5 to 7 times rated current, taken from the load type rather than a default.
  • The delay stays below the motor safe stall time, with about 20 percent margin.
  • CT ratio is set before the pickup, because a wrong ratio moves that pickup by the same factor.
  • The trip output reaches the breaker trip coil while the thermal model keeps counting down.
  • Function numbers follow ANSI/IEEE C37.2-2022; the thermal limits follow IEEE C37.96-2012.

A motor circuit breaker cannot do this job. It reads current magnitude and nothing else. A locked rotor draw of 6 to 8 times rated current then looks like a heavy but harmless startup inrush. The relay separates the two with time. A normal start is short. A stuck rotor is not.

The function numbers come from the ANSI/IEEE C37.2-2022 device list. The thermal limits behind the delay are the ones IEEE C37.96-2012 sets for AC motor protection. The inverse time shape that 51LR runs on is covered by IEC 60255-151:2009.

The wider function list that sits beside these elements is in the motor protection functions on 6 kV and 10 kV feeders. The inverse time side of the same problem is worked through on the numerical overcurrent protection relay.

What is Locked Rotor Protection for motor?

Definition of Locked Rotor Protection

Locked rotor protection is a core motor protection function that identifies a zero-speed rotor condition when a motor receives a starting command. When the rotor fails to rotate, the motor draws sustained 6–8 times full-load rated current, generating extreme internal heat in windings within seconds.

Unlike general overcurrent protection, ANSI 48 locked rotor protection targets startup-stage stall faults exclusively. It distinguishes normal short-duration starting inrush current from harmful sustained locked rotor current, avoiding nuisance tripping while cutting off power before permanent motor damage occurs.

Selecting a relay for a live project?

Send the system voltage, CT ratio and tripping scheme. Our engineers confirm the model and reply within 12 hours.

View relay modelsRequest a quote

Many industry practitioners confuse locked rotor protection with stall protection. The key difference lies in the fault occurrence stage, detection logic, and applicable scenarios, which we elaborate on in a dedicated comparison section below.

What Causes a Locked Rotor?

Locked rotor faults occur exclusively during motor startup, triggered by mechanical blockage or load abnormality. The most common field causes include:

  • Mechanical jam: Misaligned couplings, broken transmission parts, or stuck mechanical components
  • Bearing failure: Seized bearings due to insufficient lubrication, wear, or overheating
  • Process blockage: Clogged pump impellers, blocked crusher cavities, or jammed conveyor belts
  • Overloaded startup: Forced startup with excessive pre-loaded mechanical torque
  • Foreign object intrusion: Debris entering motor internal gaps or equipment working chambers
  • Motor startup failure: Stator winding phase loss, voltage imbalance, or incorrect wiring leading to startup stall

Locked Rotor Protection ansi code

Two ANSI standard codes are commonly adopted for motor locked rotor protection: ANSI 48 and ANSI 51LR. Plenty of electrical engineers tend to confuse these two codes. Although both can be used to catch a stuck rotor, they operate on different principles, which is why the table below separates them.

ItemANSI 48ANSI 51LR
NameLocked Rotor / Incomplete SequenceLocked Rotor Overcurrent
Chinese NameLocked Rotor Protection / Failed Start ProtectionLocked Rotor Overcurrent Protection
Detection MethodStartup duration, rotating speed and full startup process monitoringCurrent measurement
Judgment CriterionWhether the motor completes startup within the specified timeWhether the current exceeds the set value for a continuous period
Typical ApplicationMotor startup failureLocked rotor during normal operation
Corresponding IEC StandardFailed Start ProtectionLocked Rotor Overcurrent Protection

Why Is Locked Rotor Protection Important?

The device that has to do all this is a locked rotor protection relay. Three numbers decide whether it works: the starting current, the locked rotor current and the safe stall time. All three come from the same motor datasheet, so on most feeders the whole setting exercise is one datasheet read followed by two arithmetic steps.

A locked rotor fault is a high-risk, fast-deteriorating failure. Without effective protection for this condition, sustained overcurrent will cause irreversible damage within 2 to 10 seconds, depending on motor size and thermal withstand capability.

The direct consequences of missing or misconfigured ANSI 48 protection include:

  • Rapid winding overheating and insulation breakdown
  • Permanent winding burnout and motor scrapping
  • Frequent unplanned production downtime
  • Secondary equipment damage linked to the motor system
  • Electrical short circuits and potential fire hazards

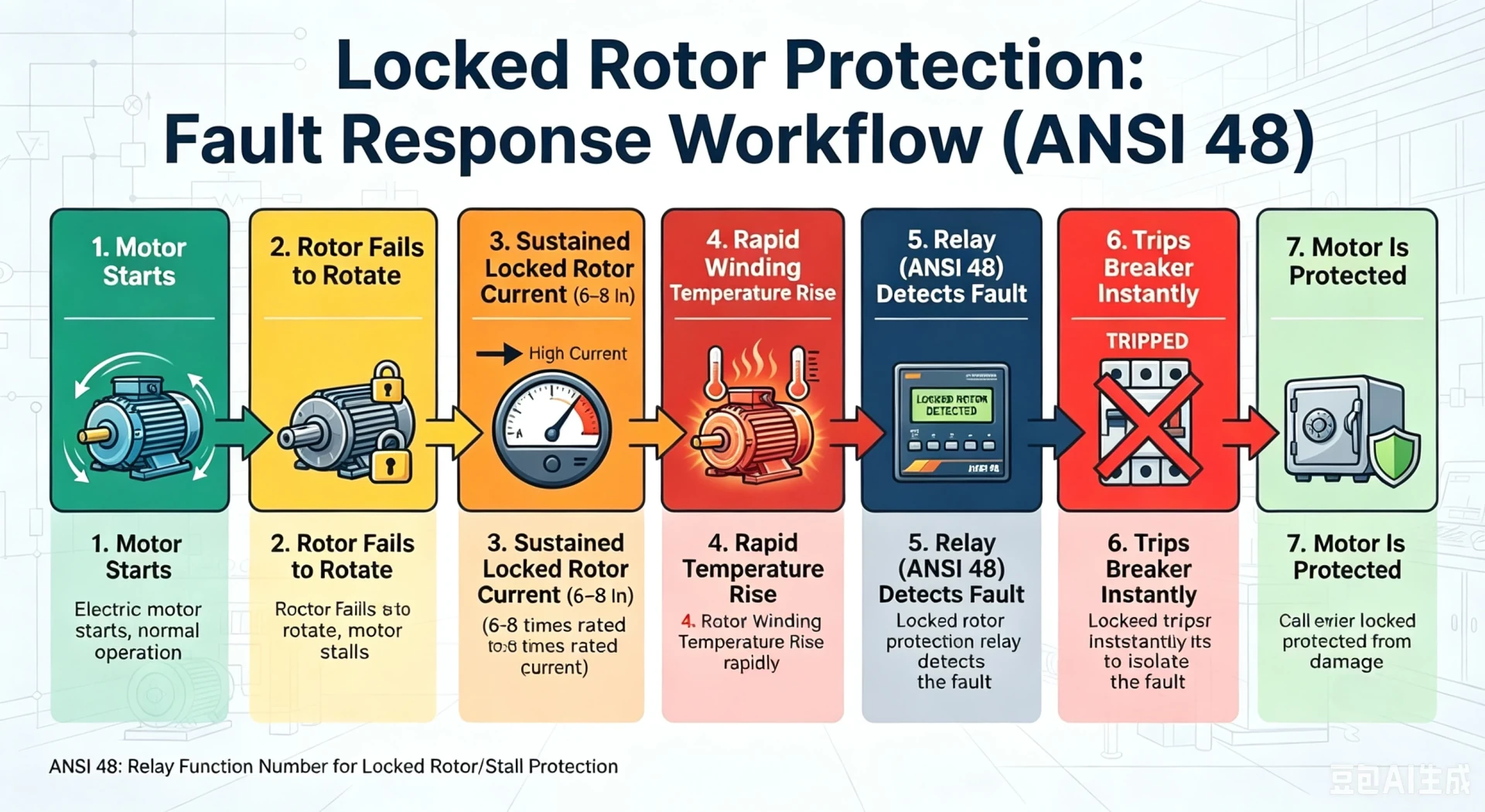

The standard fault response workflow of locked rotor protection is as follows:

Locked rotor protection relay on an industrial motor feeder (illustrative)

The chain has five links and no shortcut. The motor starts, the rotor fails to turn, current sits at 6 to 8 times rated, the winding heats, and only then does the relay open the breaker. Heat is the reason for the delay, not a side effect of it.

How Does Locked Rotor Protection Work?

Motor locked rotor protection relay operates based on two core detection logics: overcurrent magnitude judgment and time-delay discrimination. It accurately filters normal motor starting inrush and captures true locked rotor faults.

Current Detection Logic

The relay collects real-time three-phase motor current via matched Current Transformers (CTs). Normal motor starting inrush current reaches 6–8 times rated current but lasts only 0.5–3 seconds for most standard loads. A locked rotor fault maintains this high current continuously without speed rise.

The protection system identifies fault characteristics by monitoring sustained overcurrent, rather than instantaneous peak current, to avoid misoperation on normal startup inrush.

Time Delay Logic

Time delay is the key to reliable locked rotor protection. Every motor has a safe startup time to overcome load inertia. Immediate tripping on high starting current will cause severe nuisance tripping.

Modern motor protection relays adopt two mainstream delay modes:

  • Fixed definite time delay: Suitable for constant-load equipment (pumps, fans) with stable startup time
  • Thermal model adaptive delay: Calculates real-time motor heat accumulation based on I²t curves, applicable for variable-inertia loads (crushers, conveyors)

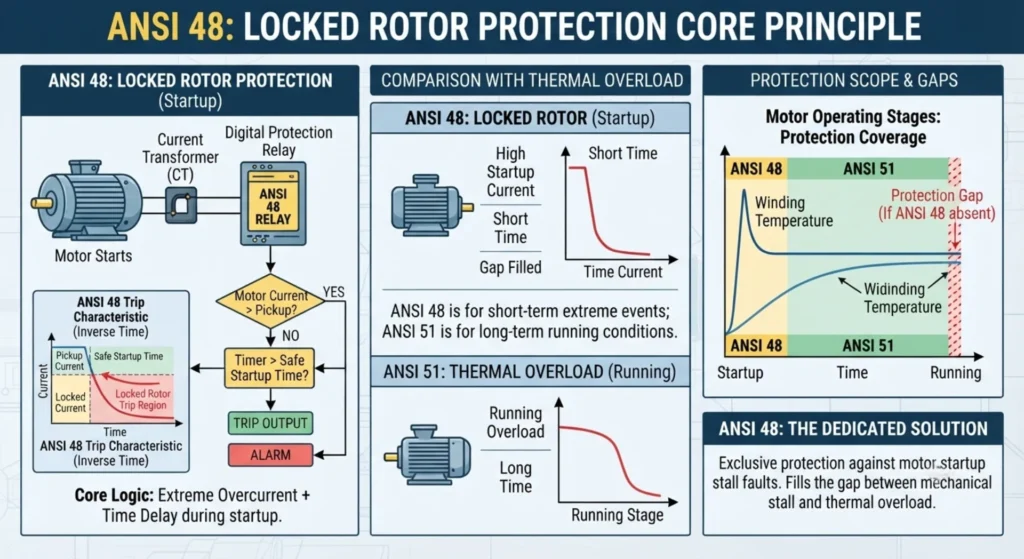

Core Principle: How the Two Detection Stages Combine

Locked rotor protection core principle on a motor feeder (illustrative)

ANSI 48 is the industry-standard functional code for locked rotor protection, exclusively used for motor startup stall fault protection. Its core logic is simple and precise: if motor current exceeds the preset pickup value and lasts longer than the safe startup time, the relay triggers a trip or alarm.

Unlike ANSI 51 thermal overload protection (for running-stage overheating), ANSI 48 focuses on short-term extreme overcurrent during startup, filling the protection gap for motor startup faults.

Setting ANSI 48 and 51LR on One Feeder

Two numbers decide whether the scheme works: the pickup and the delay. Both come from the motor rather than from the relay, and both are checked on the panel before the feeder is handed over.

Locked Rotor Current Pickup Setting

The standard pickup current range is 5–7 × motor rated current (In), adjusted according to load types to match actual startup characteristics:

  • Pumps & Fans: 5.0–5.5 In (low inertia, short startup time)
  • Compressors: 5.5–6.0 In (medium load torque)
  • Conveyors: 6.0–6.5 In (high starting inertia)
  • Crushers & Heavy-duty equipment: 6.5–7.0 In (maximum startup resistance)

The pickup value must be higher than the motor’s normal maximum starting current to avoid nuisance tripping and lower than the minimum locked rotor current to ensure fault capture.

Locked Rotor Time Delay Setting

The time delay is determined by the motor’s safe stall withstand time, which is subject to motor manufacturer datasheets and field test data. General industry guidelines:

  • Small low-voltage motors (<50kW): 2–3 seconds
  • Medium-voltage motors (50–200kW): 3–5 seconds
  • High-inertia load motors (crushers, large fans): 5–8 seconds

Key Note: Never set the delay longer than the motor’s thermal withstand time, otherwise winding burnout will occur before protection action.

Typical Locked Rotor Protection Setting Calculation Example

Motor Parameters: 400V, 160kW, Rated Current (In) = 290A, DOL starting, crusher load (high inertia)

Step 1: Current Pickup Calculation Apply the heavy-load setting standard: 6.5 × In, so the pickup current is 6.5 × 290 A = 1885 A. Pickup and delay are worked in the same pass, which is the practice used in the motor protection relay setting calculation guide.

Step 2: Time Delay Setting Motor datasheet safe stall time = 6s Actual setting reserved margin = 5.5s

Final ANSI 48 Logic: Trip immediately when current ≥1885A and duration ≥5.5s; send pre-alarm at 80% threshold for early warning.

Locked Rotor Protection vs Stall Protection

These two protections are frequently confused in industrial debugging. The following table clarifies their core differences for accurate configuration:

Comparison ItemLocked Rotor Protection (ANSI 48)Stall Protection (ANSI 51/Thermal)
Detection StageMotor startup stage onlyMotor running stage only
Rotor SpeedZero speed (completely stuck)Ultra-low speed (partial stall)
Current Level6–8 × rated current (extreme high)1.2–3 × rated current (moderate high)
ANSI Standard Code4851 / 49 (thermal overload)
Typical Fault CauseStartup blockage, mechanical jammingRunning overload, sudden load jamming
Protection PurposePrevent instantaneous startup burnoutPrevent long-term overheating damage

How to Test Locked Rotor Protection?

A locked rotor protection relay is normally proved with secondary injection before the motor is ever energised. Hold 90 percent of the calculated pickup for longer than the element delay and it must not operate; raise the current through pickup and the element should operate inside its own tolerance. The three tests below are the ones that end up on the commissioning sheet.

Regular testing ensures ANSI 48 protection works reliably under actual fault conditions. Three standard test methods are widely adopted in factory FAT and on-site commissioning:

Secondary Injection Test (Laboratory & Routine Test)

This is the most common and safe test method for relay calibration. Use a professional relay test set to inject simulated locked rotor overcurrent into the relay:

  • Inject preset pickup current (e.g., 1885A equivalent secondary current)
  • Maintain current longer than setting delay
  • Verify relay alarm, trip output, and fault record

Applicable for factory testing, periodic maintenance, and parameter verification.

Primary Injection Test (On-Site Commissioning)

Inject high current directly into the primary motor circuit to simulate real locked rotor faults. This test checks CTs, wiring, and the protection loop end to end.

Safety Note: Must be performed by certified electrical engineers with power cut-off and safety isolation measures.

Functional Simulation Test

Simulate motor startup stall signals via relay built-in functions to verify threshold judgment, timing accuracy, and trip logic. No high current required, suitable for quick on-site functional verification.

Common Locked Rotor Protection Problems and Solutions

1. ANSI 48 trips frequently during normal motor startup

Causes: Current pickup value set too low; time delay shorter than actual startup time; high-inertia load with long acceleration time

Solutions: Increase pickup current appropriately; extend delay time according to actual startup duration; enable thermal model adaptive delay for inertia loads

2. Relay fails to trip on actual locked rotor fault

Causes: Incorrect CT ratio parameter; mismatched current setting; faulty CT wiring or signal loss

Solutions: Calibrate CT ratio and secondary circuit; recheck and reset ANSI 48 parameters; inspect wiring and eliminate signal faults

3. Long-term nuisance tripping in stable operation

Causes: Slight voltage fluctuation leads to minor current surge; aging motor with unstable startup current

Solutions: Optimize threshold margin; enable current fluctuation filtering function; match protection parameters with motor aging characteristics

Industrial Applications of Locked Rotor Protection

Whichever of these services the motor feeds, the locked rotor protection relay on the feeder is bounded by one comparison: the ANSI 48 delay has to sit below the safe stall time of the machine with the least margin. A single comparison like that is what makes the setting defensible when somebody asks to see the calculation.

Medium and high-power industrial motors always get ANSI 48 locked rotor protection. The industries that ask for it run continuously:

  • Energy & Power: Power plants, oil & gas facilities, petrochemical plants
  • Heavy Industry: Mining, cement plants, steel mills, crushing systems
  • Public Utilities: Water treatment plants, HVAC systems, pump stations
  • Logistics & Manufacturing: Conveyor systems, compressor units, industrial fan equipment

These are the loads where a start can take tens of seconds and where a restart is expensive, which is exactly the situation ANSI 48 was drawn for. Where several motors of the same family share a spare, the delay values are best taken from the slowest machine so that the setting is wrong for none of them.

How to Choose a Qualified Locked Rotor Protection Relay

Safe Stall Time: Where the 48/51LR Numbers Come From

The number that decides both the ANSI 48 delay and the 51LR curve is the safe stall time of the motor. The manufacturer derives it from the winding insulation class and from the short-time thermal withstand of the stator, and it is quoted in seconds for a given locked rotor current. It is not a value you measure on the panel: it comes from the datasheet or from a thermal withstand test. Where that number is missing, the honest position is that the motor has not been given one, and the setting has to come from a test or from a conservative allowance in the scheme.

Two practical rules follow from it. The ANSI 48 delay has to be shorter than the safe stall time. By the time the delay has run, the winding is already heating, so the margin is mandatory rather than optional. Twenty percent is a common allowance. And if the same motor has already attempted a start, the 49 thermal memory is loaded, which moves the effective thermal limit closer to the pickup. On a second attempt the operator is starting against a winding that is already warm, which is why the 48 delay should be moved towards the safe stall time rather than kept generous.

ANSI 48/51LR locked rotor logic on a motor feeder is a pair, not an either/or. Element 48 watches the start as a sequence, 51LR watches the current once that sequence has run long, and both are bounded by the same safe stall time. The pickup and the delay have to be verified together at commissioning. A secondary injection test at the calculated pickup, held longer than the delay, proves it. The number in the study and the number in the relay then have to be the same number.

One point worth repeating on a quotation: the motor protection relay functions package on a feeder rarely stops at these two elements. The element list that has to sit beside them is set out there, and the way the whole set is chosen for one motor is walked through in the motor protection relay setting calculation guide. On a supply quotation the locked rotor protection relay is listed as part of the feeder package, and the element list has to be agreed before the setting work starts.

For EPC projects and plant renovation, a reliable relay must integrate accurate ANSI 48 logic, multi-functional protection and industrial stability. The core selection criteria are as follows: the differential and earth fault elements on a large motor come from the ASD-441H motor protection relay, and the element list is compared across frames in the functions table.

Complete Protection Function Portfolio

Qualified motor relays must match the full motor protection requirement, not only a single ANSI 48 element:

Stable Communication & System Compatibility

Suitable for industrial SCADA and DCS system integration:

  • Standard protocols: Modbus RTU, Modbus TCP, IEC 61850
  • Real-time fault data upload and remote monitoring

Industrial-Grade Reliability

  • Full EMC electromagnetic compatibility, anti-interference for harsh industrial sites
  • Wide working temperature range (-20℃ ~ +70℃)
  • IEC, CE certified, factory-tested quality
  • Complete event recording and fault waveform capture

Low Maintenance Cost

  • Intuitive LCD local display
  • One-click parameter backup and restoration
  • Real-time self-diagnosis of hardware and wiring faults
  • Remote configuration and debugging support

Why Choose Our Motor Protection Relay Solutions

As a professional industrial motor protection relay manufacturer with over 10 years of overseas project experience, our solutions fully comply with IEC and ANSI industry standards, serving global EPC contractors, power engineering companies, and end-user plants.

Full-Coverage Product Portfolio

We provide tailored units for every scenario here: low-voltage, medium-voltage and multifunction motor protection devices, covering 0.4 kV to 35 kV motor systems to meet different project specifications.

Professional Technical Support

Our overseas technical team provides one-stop engineering services: protection parameter calculation and setting, system protection coordination optimization, wiring guidance, and on-site commissioning support. We solve on-site tripping, setting mismatch, and compatibility problems for clients in real time.

Strict Quality Assurance

All relays pass 100% factory functional testing, EMC anti-interference testing, and FAT factory acceptance testing. Complete official technical documents, test reports, and certification files are provided to support project bidding and acceptance.

Flexible Delivery & Global Service

We support fast batch delivery, OEM/ODM customized services, and long-term after-sales technical support. Our products have been widely applied in mining, chemical, water treatment, and power projects across Southeast Asia, Africa, the Middle East, and Europe, with stable field operation feedback.

Conclusion

The locked rotor protection relay on a motor feeder is two elements bound by one number. ANSI 48 runs the start as a sequence, ANSI 51LR measures the current once that sequence has run long, and the ANSI 49 model still counts the heat afterwards. The number is the motor safe stall time from the datasheet. Set the pickup, the delay and the 49 model into agreement at commissioning and the scheme holds through repeat starts. Miss one of the three and the same fault trips on one motor and not on the next.

Three places to read next follow: the motor protection relay functions that sit beside this element, the motor protection relay setting calculation method used for the pickup, and the ASD-441H motor protection relay specified on feeders that also need 87M and 51N.

Frequently Asked Questions

1. What is ANSI 48 protection?

A locked rotor protection relay carries that number. ANSI 48 is the part that watches the start as a sequence, not as a current level.

ANSI 48 is the industry code for zero-speed stall faults at start. It cuts the motor off before sustained overcurrent burns the winding.

2. What are the main causes of a locked rotor fault?

Locked rotor faults are mainly caused by mechanical jamming, bearing seizure, load blockage, foreign object intrusion, and failed motor startup, all leading to zero rotor speed and sustained high current.

3. How do you set locked rotor protection parameters?

Set current pickup at 5–7 times rated current based on load type; set time delay according to motor safe stall withstand time (2–8s). Avoid values exceeding the motor’s thermal tolerance range.

4. What is locked rotor current?

Locked rotor current refers to the sustained overcurrent generated when the motor rotor is stuck, typically 6–8 times the motor full-load rated current, which causes rapid winding heat accumulation.

5. What is the difference between locked rotor and stall protection?

Locked rotor protection (ANSI 48) acts on zero-speed startup faults; stall protection (ANSI 49/51) acts on low-speed overload faults during motor running. Their current thresholds and application stages are completely different.

6. How long should locked rotor protection delay be?

Small low-voltage motors sit at 2 to 3 seconds. Medium-voltage machines run at 3 to 5 seconds. High-inertia loads such as crushers and large fans take 5 to 8 seconds. The stall time setting itself has to come from the motor datasheet, and the relay delay must stay below it with a margin.

7. Can VFD-driven motors use locked rotor protection?

Yes. VFD motors still face startup stall risks. Professional relays support adaptive ANSI 48 setting for VFD output characteristics to achieve accurate protection.

8. How to test ANSI 48 protection?

On a locked rotor protection relay the same three tests run against ANSI 48. Hold the pickup below the setting for longer than the delay and it must not operate. Raise the current through pickup and it must operate inside tolerance.

Main test methods include secondary injection calibration (routine test), primary injection test (on-site commissioning), and functional simulation test to verify trip threshold, timing, and fault response.

9. Which industries require locked rotor protection?

All industries with continuous-operation industrial motors, including mining, petrochemical, water treatment, power plants, cement, steel, and HVAC systems.

10. How to choose a qualified ANSI 48 motor protection relay?

Focus on standard ANSI 48 logic accuracy, complete supporting protection functions, industrial anti-interference capability, standard communication protocols, and professional after-sales commissioning support.

11. What does locked rotor protection do on a compressor motor?

It is a dedicated motor protective function. When the compressor motor is energized yet the rotor fails to rotate due to jamming, this protection will quickly cut off power supply to avoid winding burnout caused by excessive locked-rotor current.

12. What does locked rotor protection do on a fan?

When the fan rotor locks up, the input current surges sharply. Continuous high current will overheat windings, damage insulation and burn out the entire fan motor. This protection safeguards the fan motor and extends its service life.

13. How is ANSI 51LR different from ANSI 48 on site?

51LR is the ANSI device number for a locked rotor overcurrent element. It uses an inverse time characteristic, so it trips sooner the longer the current stays above pickup, and it is normally set to sit inside the safe stall time. ANSI 48 does not care how big the current is, only that the start has not finished in time.

Field record

Locked rotor matters where the driven load has high inertia and a long start: cement mills in Bolivia, Ghana and Myanmar, mine and mill drives at Oyu Tolgoi in Mongolia and the copper-cobalt mine in DR Congo, and steel plant drives in Vietnam and Tanzania. The setting is taken from the motor thermal limit curve, not from a default multiple of full load current. All of these are listed in the project record.

Technical References

SourceWhat it coversTypeEdition
IEEE C37.96-2012Guide for AC motor protection: the thermal limits and stall handling that bound the ANSI 48 delayIEEE Standard2012
ANSI/IEEE C37.2-2022Device function numbers used throughout this article: 48 and 51LR, together with 49, 51 and 46IEEE Standard2022
IEC 60255-151:2009Overcurrent relays, including the inverse time characteristics that 51LR uses during a startIEC Standard2009
IEC 60255-1:2022Generic requirements and testing for measuring and protection relaysIEC Standard2022
IEC 61869-2:2012Current transformers for protective relaying, which set the accuracy of the current seen during a startIEC Standard2012

Questions on the settings in this guide go to the engineering team, normally answered the same working day.

About Author
Leon Zhang
Hello, I'm Leon Zhang. I have 15 years of experience in the power relay protection industry with extensive pre-sales and after-sales project experience. Our company specializes in various complete sets of relay protection and automation equipment. I can assist customers in solving all practical on-site project challenges and provide optimal integrated solutions.
Tell Us Your Requirement
Send an Inquiry

High Quality

Stable performance, reliable design, ensuring safe operation for power system protection and grid stability.

Fast Delivery

Timely delivery to support your urgent orders and project schedules efficiently and professionally at any time.

Best Warranty

Professional Warranty: Reliable after-sales support for stable relay protection and long-term customer satisfaction.
