Circuit Protection Relay: Definition and Where ANSI 50 Fits

Table of Contents

What is a short circuit protection relay?

A short circuit protection relay detects excessive fault current produced by a short circuit and commands a circuit breaker to clear the fault. It carries ANSI device function 50, instantaneous overcurrent, and normally works alongside 51 time overcurrent, 50N/51N earth fault and 87 differential on transformers, motors and distribution feeders. Specify it against IEEE C37.2-2022 device numbers, IEC 60255-151 for overcurrent and earth-fault requirements, and IEC 61869-2 for instrument transformers. A 10 kV/0.4 kV substation typically sees prospective fault currents of 12 kA to 40 kA on the high-voltage side, so the instantaneous element must pick up above transformer inrush and drop below the minimum three-phase fault at the far end of the feeder. The relay cannot measure ultra-high primary current directly; it relies on CT input, internal judgment and a hard-wired trip command back to the breaker. Station integration follows IEC 61850. Setting review and quotation within 12 hours, MOQ 1, 7-15 working days.

Circuit Protection Relay: Definition and Where ANSI 50 Fits

Short circuit protection relay is a protection device that detects excessive fault current produced by a short circuit and commands a circuit breaker to clear the fault. It carries ANSI device function 50 (instantaneous overcurrent) and normally works alongside 51 (time overcurrent), 50N/51N (earth fault) and 87 (differential) on transformers, motors and distribution feeders.

Specify it against IEEE C37.2-2022 device numbers, IEC 60255-151 (overcurrent and earth-fault protection requirements) and IEC 61869-2 (instrument transformers). A 10 kV/0.4 kV substation typically sees prospective fault currents of 12 kA to 40 kA on the high-voltage side, so the instantaneous element has to pick up above the inrush of the transformer it feeds and drop below the minimum three-phase fault current at the far end of the feeder.

At a Glance: What to Check Before Specifying One

  • ANSI 50 is instantaneous, ANSI 51 is time-delayed, and 50N/51N cover earth fault.
  • Pickup sits above maximum load current and inrush, but below the minimum fault current at the end of the protected circuit.
  • Check the standard set: IEEE C37.2-2022, IEC 60255-151 and IEC 61869-2.
  • Confirm the CT ratio and accuracy class, for example a 200/5 ratio at 10P20 burden.
  • Keep 0.3 s to 0.5 s grading between the stages of a cascade.
  • Cover transformer, motor, generator and feeder duty, which is the range short circuit protection for transformer and motor has to address.
  • Provide at least one normally-open trip contact plus an alarm, with breaker failure (ANSI 94) support.
  • Re-test by secondary injection and review event records every 1 to 5 years. A relay circuit that is re-tested on schedule keeps its pickup and timing figures where the single-line diagram says they belong.

What Is a Short Circuit Relay?

Definition and Trip Logic

A short circuit protection relay (protective relay) is an intelligent electrical protection device built to detect excessive fault currents triggered by short-circuit failures and trigger circuit breaker tripping actions automatically. Widely deployed across core power scenarios, it is a standard configuration for:

  • Urban and industrial substations
  • Factory industrial power supply systems
  • Solar, wind and other renewable energy power plants
  • Long-distance power transmission and regional distribution networks

Selecting a relay for a live project?

Send the system voltage, CT ratio and tripping scheme. Our engineers confirm the model and reply within 12 hours.

View relay modelsRequest a quote

Different types of short-circuit and abnormal current risks correspond to standardized protection functions with unified ANSI industry codes, covering all mainstream fault scenarios:

1. Overcurrent Protection Relay (ANSI 50/51)

Applicable objects: Power feeders, industrial motors, distribution and main power transformers

Core function: Judges when loop current exceeds the preset threshold value, and sends a trip signal to breakers after a set delay to avoid equipment damage caused by long-term overcurrent.

2. Instantaneous Overcurrent Protection (ANSI 50)

Core features: Ultra-fast action speed without intentional time delay

Application scenarios: Severe metallic short-circuit faults on busbars, outgoing feeders and transformer primary sides, which need immediate power cutoff to avoid equipment breakdown.

3. Time Overcurrent Protection (ANSI 51)

Core features: The relay’s tripping action time changes inversely with fault current; larger fault current leads to shorter delay time.

Core value: Realizes selective protection coordination between upper-level and lower-level protection devices, ensuring only the nearest faulty branch trips while the rest of the grid remains powered.

4. Earth Fault Protection (ANSI 50N/51N)

Target faults: Phase-to-ground short circuits, cable insulation aging and breakdown, poor equipment earthing faults. It captures residual grounding current to locate hidden insulation faults that regular overcurrent protection may miss.

How Does a Short Circuit Relay Work?

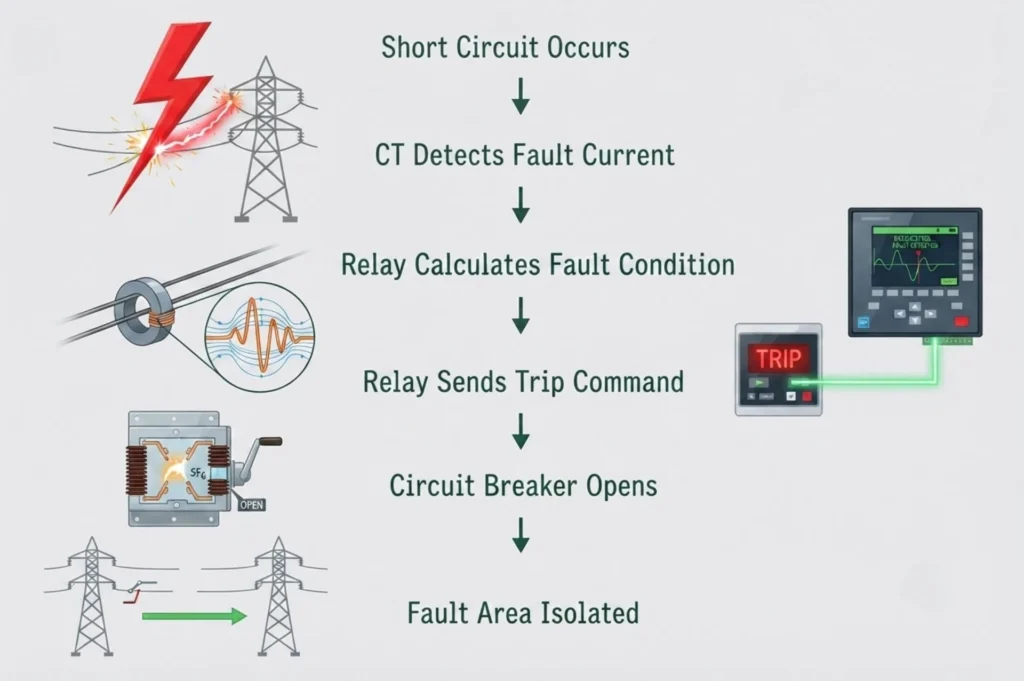

The short circuit protection relay cannot directly measure ultra-high primary current on high-voltage power lines. Instead, it relies on a complete signal collection, analysis and execution workflow to finish fault judgment and isolation. The relay circuit is that loop: CT input, internal judgment, and a hard-wired trip command back to the breaker.

1. Fault Current Measurement

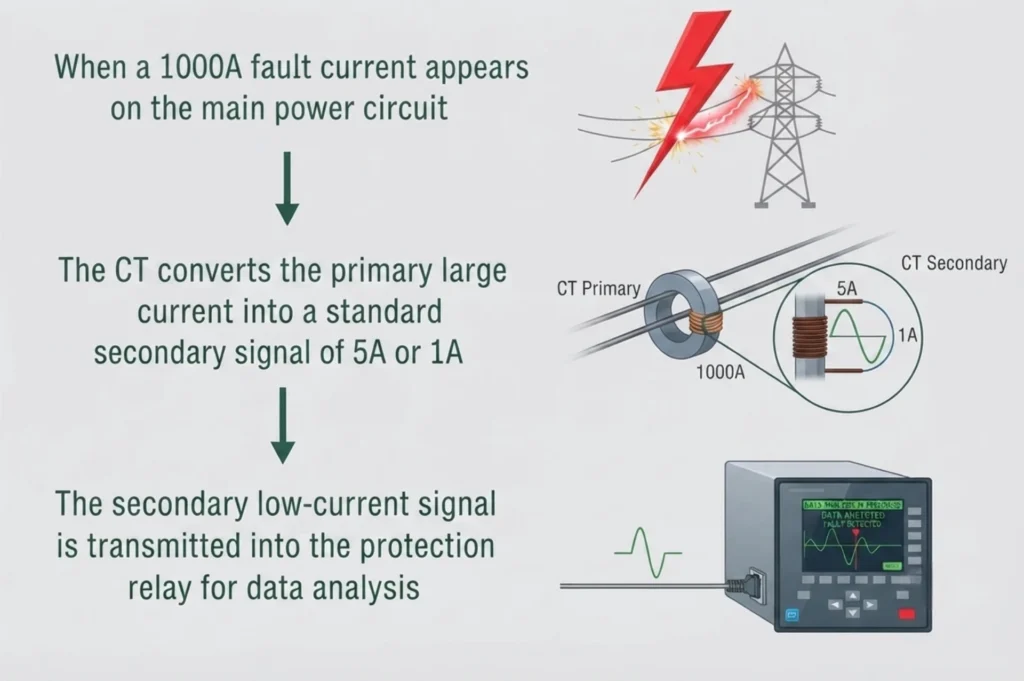

Current transformers (CT) are installed on primary power circuits to step down large system current into low-amplitude secondary signals that the relay can safely process.

Take a typical case:

Numerical protection relay mounted in a medium-voltage switchgear panel (illustrative)

2. Signal Processing and Fault Judgment

Modern numerical protection relays no longer rely on simple electromagnetic induction. They calculate several electrical dimensions together to eliminate misjudgment:

  • Real-time current magnitude
  • Loop voltage level
  • Fault direction to distinguish forward and reverse faults
  • Phase angle between voltage and current
  • Lasting duration of abnormal current

The relay compares all measured parameters with pre-configured fixed values including pickup current threshold, tripping time delay and protection characteristic curves. Once the measured data exceeds the allowable range, the relay confirms a valid fault.

3. Trip Command Output

After confirming a short-circuit fault, the relay outputs a hard-wired trip signal directly to the circuit breaker’s tripping coil. The full protection action sequence is fixed and standardized: A correctly built relay circuit keeps this sequence under one second on an instantaneous element.

So the breaker opens, and the fault clears.

Trip coil and breaker auxiliary circuit of a protection relay (illustrative)

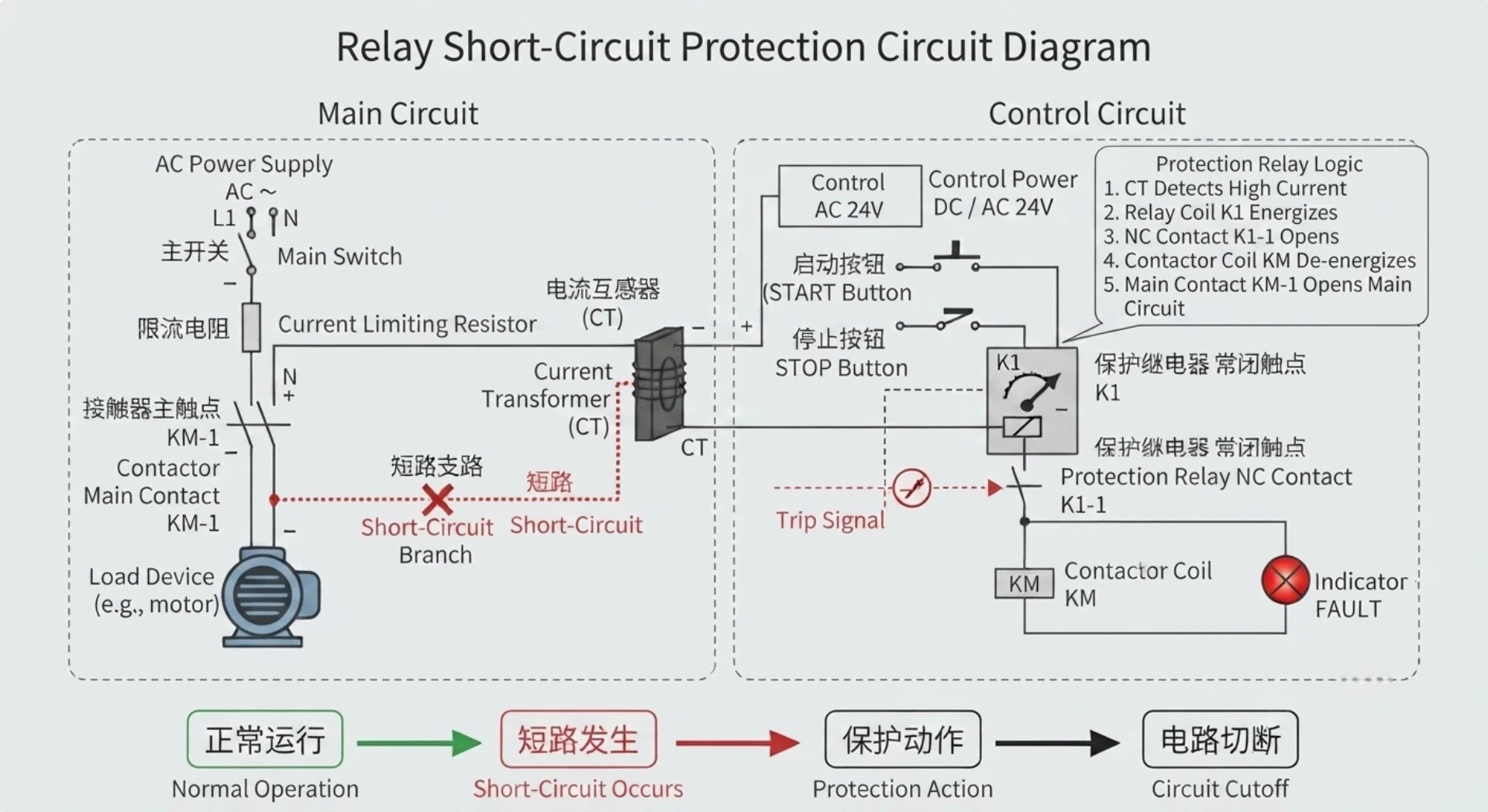

Short Circuit Protection using relay circuit diagram

Short-circuit current path in a relay protection circuit diagram (illustrative)

What Happens If a Relay Is Shorted?

If the protection relay itself suffers an internal short circuit or hardware failure, it will lose its protection capability and even interfere with the stable operation of the whole power system, bringing four major hidden dangers:

1. False Tripping

Internal circuit short-circuit or component damage may make the relay send a false trip signal when no actual short-circuit fault exists. The direct consequences include unnecessary regional power outages, forced production line shutdown and decreased reliability of the power supply. For example, a faulty feeder protection relay may cut off normal power supply randomly without any equipment abnormality.

2. Failure to Protect Equipment

In the event of a real short circuit, a broken relay cannot output a trip instruction, so the dangerous fault current keeps circulating in the loop. This will burn transformer windings, cause cables to overheat and catch fire, and eventually lead to permanent scrapping of switchgear and core power equipment.

3. Permanent Relay Internal Damage

A short-circuit fault inside the relay often causes irreversible damage: burnt internal contact points, breakdown of circuit board electronic components, PCB board burnout and complete loss of communication connection with the background monitoring system.

4. Disordered Protection Coordination

Power grid protection relies on graded coordination between multiple relays. A faulty relay will break the selective protection logic, affect the backup protection linkage, and weaken the stability of the power grid against faults.

What Are the Symptoms of a Bad Relay?

Field maintenance staff can quickly judge relay failure through these obvious abnormal manifestations:

1. Unexpected Circuit Breaker Trips

Typical symptoms: The circuit breaker trips repeatedly and the system cuts power with no visible short circuit or overload fault.

Root causes: Incorrect parameter setting inside the relay, damaged output contact terminals or mainboard internal malfunction.

2. No Tripping Response During Actual Faults

Warning signs: Routine protection function test fails; power equipment heats up abnormally while the fault current is still connected to the circuit. This is the most dangerous fault mode of a protection relay.

3. On-device Alarm Indications

Intelligent numerical relays will pop up text or code alarms on the local display screen, including self-supervision alarm, relay main unit failure alarm, CT secondary circuit disconnection fault and background communication error reminder.

4. Abnormal Tripping Timing

Two common abnormal conditions: delayed tripping far beyond the preset delay time; instantaneous tripping without delay when the protection is supposed to act with a time limit. The main triggers are wrong parameter configuration, outdated firmware or aging internal electronic components.

How to Test If a Relay Is Blown?

A complete relay inspection follows five steps from simple visual check to professional function verification: Every step tests one link of the relay circuit, from the CT secondary to the trip coil.

The relay does not stay closed.

1. Visual Inspection

First carry out appearance inspection to check for obvious damage: burnt black marks on the shell or terminals, cracked wiring terminals, loose secondary wiring, metal corrosion and pungent burnt odor from internal components.

2. Check Relay Power Supply

Verify the auxiliary working power of the relay, which is mostly DC 24V, 48V, 110V or 220V. Confirm the input AC or DC voltage is within the rated range and all terminal wiring is tightly fastened without virtual connection.

3. Test Relay Coil Resistance

Use a multimeter to measure the resistance of the relay internal coil:

  • Normal status: The multimeter shows a stable fixed resistance value
  • Infinite resistance reading: The coil is open-circuited and broken
  • Near-zero ultra-low resistance: The coil suffers an internal short circuit

4. Perform Secondary Injection Testing

This is the most authoritative professional detection method, which must adopt dedicated relay protection test equipment (secondary injection tester / relay test set). Standard test items cover:

  • Action pickup current value
  • Accurate tripping operation time
  • Complete trip logic verification
  • Protection characteristic curve fitting
  • Upper computer communication function

5. Review Relay Event Records

Digital relays automatically store historical data including fault current magnitude, precise trip time, fault type and full waveform recording. Maintenance engineers can export these records to confirm whether the relay acts correctly, identify real fault causes and check the rationality of original protection settings.

How Do You Fix a Short Circuit Problem?

Follow this standardized troubleshooting and repair process to eliminate short-circuit faults safely and thoroughly:

Step 1: Disconnect and Isolate Power

Prioritize construction safety: cut off the upper-level power supply of the faulty loop strictly, implement lockout and tagout procedures to prevent accidental power transmission, and use a voltmeter to confirm zero residual voltage on the circuit before operation.

Step 2: Locate the Short Circuit Point

Carry out targeted inspection by category:

  1. Cable lines: Check for outer insulation damage, cable aging cracking and water immersion dampness
  2. Core equipment: Inspect motors, transformers and switchgear for internal short-circuit and burnout
  3. Control secondary loops: Troubleshoot relay wiring and terminal blocks for short-circuit between lines.

Step 3: Check Protection Relay Settings

Recheck all core configuration parameters of the relay: rated working current, CT transformation ratio, pickup current setting, time delay value and upper-lower level protection coordination parameters. Improper settings are the top cause of frequent nuisance tripping or delayed fault clearing.

Step 4: Repair or Replace Faulty Components

Corresponding solutions for different faults:

Replace the completely damaged protection relay; rewire and bind broken secondary cables; swap out failed current transformers; rectify unqualified earthing connections; modify and optimize protection setting parameters to match on-site operating conditions.

Can an Electrician Fix a Short Circuit?

The boundary of maintenance work is divided according to voltage level and system complexity:

Short Circuits an Electrician Can Usually Repair

Certified general electricians are competent for low-voltage and civil distribution faults: household circuit short-circuit issues, low-voltage wiring errors, damaged miniature circuit breakers and cable replacement work.

When a Protection Engineer Is Needed

For medium and high voltage power systems including 6.6kV, 11kV, 22kV, 33kV and 110kV substations, professional protection engineers must be assigned to complete follow-up work centered on relay short circuit protection: relay function testing, protection coordination scheme analysis, relay fixed value calculation and fault recording data analysis to avoid secondary system hidden dangers.

Applications of Short Circuit Protection Relays

1. Transformer Protection

Main protection functions: Differential protection (ANSI 87T), overcurrent protection (ANSI 50/51) and earth fault protection.

Applicable equipment: Distribution transformers, grid main power transformers and photovoltaic/wind power station step-up transformers.

2. Motor Protection

Focuses on three typical motor faults: internal phase-to-phase short circuit, locked rotor stall and long-term overload operation, realizing full-cycle protection for large and medium-sized industrial motors.

3. Generator Protection

Covers stator winding short-circuit protection, generator earth fault protection and backup overcurrent protection to guarantee the safe operation of synchronous generators in power plants.

4. Feeder Protection

Mainly deployed on outgoing feeders of substations, factory power distribution rooms, solar farms and wind power generation systems to protect transmission lines from short-circuit damage.

How to Select the Right Short Circuit Relay?

Four core dimensions shall be taken into consideration during model selection:

1. Voltage Level

Confirm the application scenario: low-voltage distribution system, medium-voltage industrial power grid or high-voltage transmission network, and select relays with matching insulation grade and rated voltage.

2. Protection Requirements

Select functional modules as required: basic overcurrent protection, directional overcurrent for reverse power prevention, differential main protection for key equipment, or distance protection for long transmission lines.

3. Communication Protocol

Match the relay communication interface with the existing SCADA monitoring system. Common mainstream protocols include IEC 61850, Modbus TCP/RTU, IEC 60870-5-103 and DNP3.

4. Testing and Certification

Prioritize products complying with international IEC standards. Confirm the manufacturer provides complete factory inspection reports, relay calibration records and third-party protection performance type test certificates. Where a project needs a custom pickup or a special contact count, the relay circuit is spec’d to the drawing and the factory returns a test record that matches it line for line.

Why Choose Our Protection Relay Solutions?

Professional Technical Support

We deliver one-stop technical service: customized protection scheme design according to project conditions, accurate relay model selection guidance and on-site parameter setting remote support for global EPC and power grid clients. Our relay desks hand the finished relay circuit setting list back with the project, so the on-site team verifies against it rather than re-deriving from scratch.

Complete Protection Product Range

Our product portfolio covers all mainstream power protection devices: feeder line protective relay, transformer dedicated protection relay, motor multi-function protection relay, generator protection unit and transmission line distance protection relay.

Strict Quality Assurance

Every unit undergoes full factory inspection before delivery, including precision relay calibration, all-item function testing and multi-protocol communication joint debugging, to ensure stable performance under harsh on-site grid conditions.

Conclusion: How to Check a Short Circuit Setting Before Commissioning

Each circuit needs its own pass through the numbers. Calculate the prospective fault current at the fault location, compare it with the pickup of the ANSI 50 short circuit element, then confirm the same element still sees enough current at the far end of the circuit to meet the sensitivity margin. Where a substation feeds a transformer and a motor from the same busbar, short circuit protection for transformer and motor has to be sized separately, because inrush and startup currents do not behave like feeder faults.

Distribution substation short circuit protection is then verified on the bench. Inject the worst-case fault current at the CT secondary, read the trip time back from the relay’s own timing measurement, and check that the breaker actually opens. Only after that should the setting file be uploaded and archived next to the single-line diagram. Archive the relay circuit as a complete set: diagram, setting file, and the bench test that proves the two agree.

Trip time is the figure that matters.

Technical References and Sources

SourceWhat it coversTypeEdition
IEEE C37.2Device function numbers, including 50 instantaneous overcurrentStandard2022
IEEE C37.112Standard definitions for power system protection devicesStandard2018
IEEE C37.20.7Metal-clad switchgear ratings and short-circuit withstandStandard2018
IEC 60255-151Overcurrent and earth-fault protection functional requirementsStandard2009
IEC 61869-2Instrument transformers used in protection, accuracy and ratingStandard2012
Relayprotect application noteSetting example for a 10 kV feeder and a 0.4 kV distribution transformerVendor noteRev.1, 2026

FAQ About Circuit Protection Relay

1. What is the purpose of a short circuit protection relay?

A short circuit protection relay detects abnormal overcurrent caused by short-circuit faults, outputs trip signals to circuit breakers to cut faulty circuits, and isolates damaged equipment to stop fault expansion in power systems.

2. Can a bad relay cause a breaker to trip?

Yes. Hardware failure or parameter disorder inside a faulty relay will generate false trip signals, leading to unnecessary power outages and production suspension.

3. How long does the relay take to operate on a fault?

Modern numerical protection relays can identify severe metallic short-circuit faults and complete tripping output within several milliseconds, achieving ultra-fast fault clearance.

4. What is the difference between a fuse and a protection relay?

FuseProtection Relay
Only simple one-time fusing protectionMulti-condition intelligent logic protection
Needs replacement after every actionRestorable and reusable after fault removal
No data upload and remote monitoringSupports SCADA background data uploading and remote control

5. How often should protection relays be tested?

Medium and high voltage protective relays (protection relays) require periodic calibration and function testing in accordance with local power industry specifications and enterprise maintenance management regulations, with a conventional inspection cycle ranging from 1 to 5 years.

If the selection has to be checked against your switchboard, send the single-line and the ratings. For a relay circuit, add the CT ratio and the breaker type; our relay desks return a setting list and a bench-test plan a walk-down can verify against IEC 61869-2:2012.
