Introduction: Why Motor Protection Relay Selection Matters

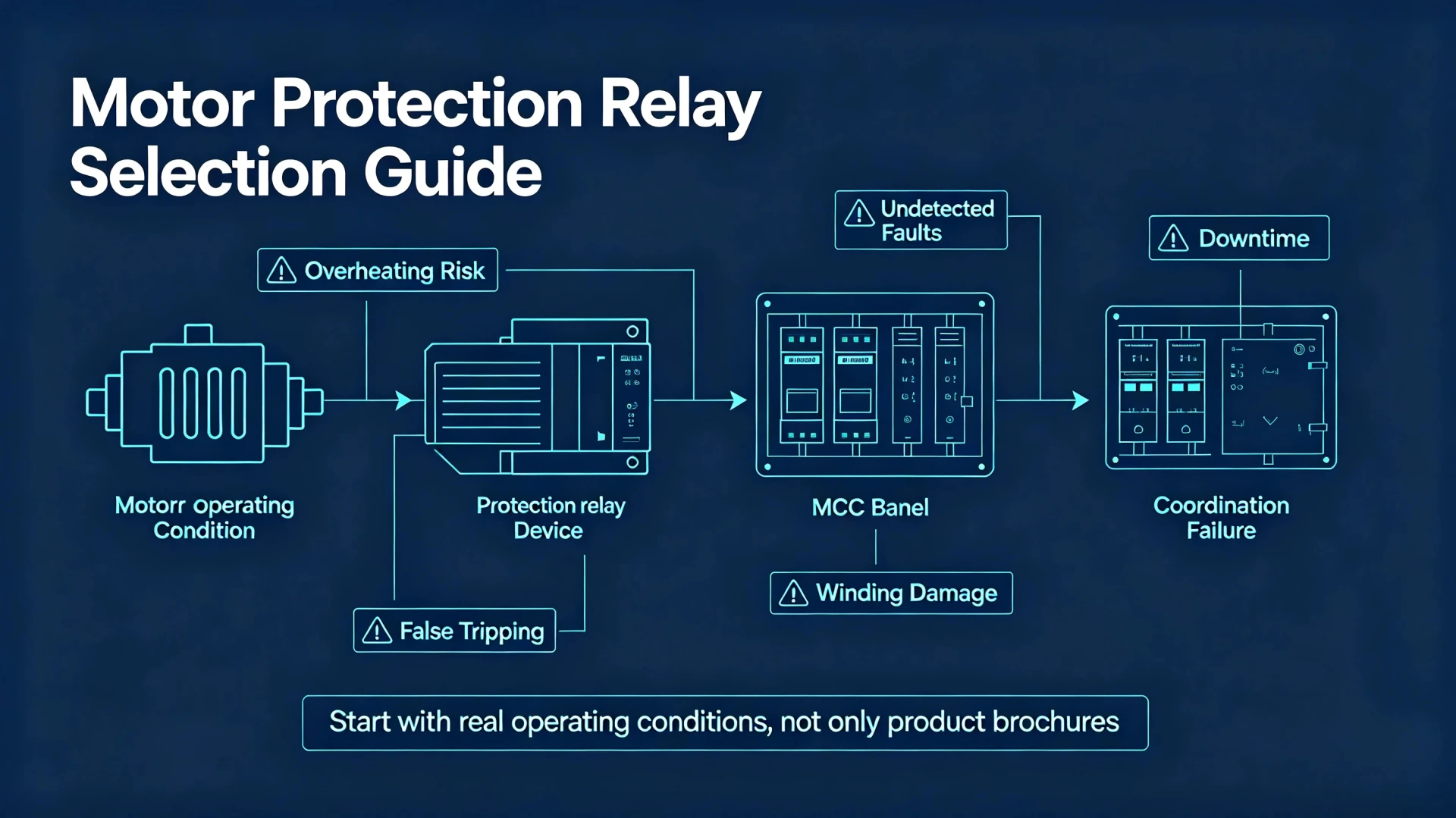

Improper motor protection relay selection creates avoidable risks for industrial facilities, EPC projects, and motor control centers. Common consequences include motor overheating, nuisance tripping, undetected phase-to-phase faults, permanent winding damage, unplanned downtime, and poor time-current coordination with upstream protective devices.

For EPC contractors and plant owners, mis-specified relays lead to site rework, warranty claims, and extended project commissioning. The selection process should start with real-world motor operating conditions rather than product brochures. This practical guide walks you through each decision point for reliable motor relay selection.

Motor protection relay with CT inputs mounted in an MCC row (illustrative)

What Is a Motor Protection Relay?

A motor protection relay is a dedicated protective device monitoring motor current, voltage, and auxiliary signals to detect abnormal operating conditions and trip the motor circuit before permanent damage occurs. Units in this class ship as panel-mounted or DIN-rail hardware with direct or CT current inputs, and the catalogue range is listed under the motor protection relay product category.

What Does a Motor Protection Relay Protect Against?

Modern digital motor protection relays cover the following typical fault and abnormal operating conditions:

Overload
Short-circuit
Phase loss
Phase unbalance / negative-sequence current
Locked rotor
Motor stall
Earth / ground fault
Underload (dry-run detection for pumps)
Overvoltage & undervoltage
Overtemperature (PT100/PTC winding sensor input)

Motor Protection Relay vs. Thermal Overload Relay

Many projects still use thermal overload relays for basic motor protection. The table below compares core capabilities:

Feature	Motor Protection Relay	Thermal Overload Relay
Overload protection	✓	✓
Phase-loss detection	✓	Limited performance
Current unbalance protection	✓	Limited
Earth fault protection	✓	Usually not available
Underload monitoring	✓	No
Motor condition monitoring	Advanced diagnostics	Basic only
Communication interface	Available on most digital units	Rare / very limited

How to Select a Motor Protection Relay: 8-Step Selection Process

How to select motor protection relay: the answer is never a single model, so this guide walks the same route for every project. Start with the nameplate, then the starting method, the load duty, the CT input side, the required ANSI functions, the setting window and the communication protocol. Each answer narrows the field before a datasheet is ever opened.

Start With the Motor Nameplate Data

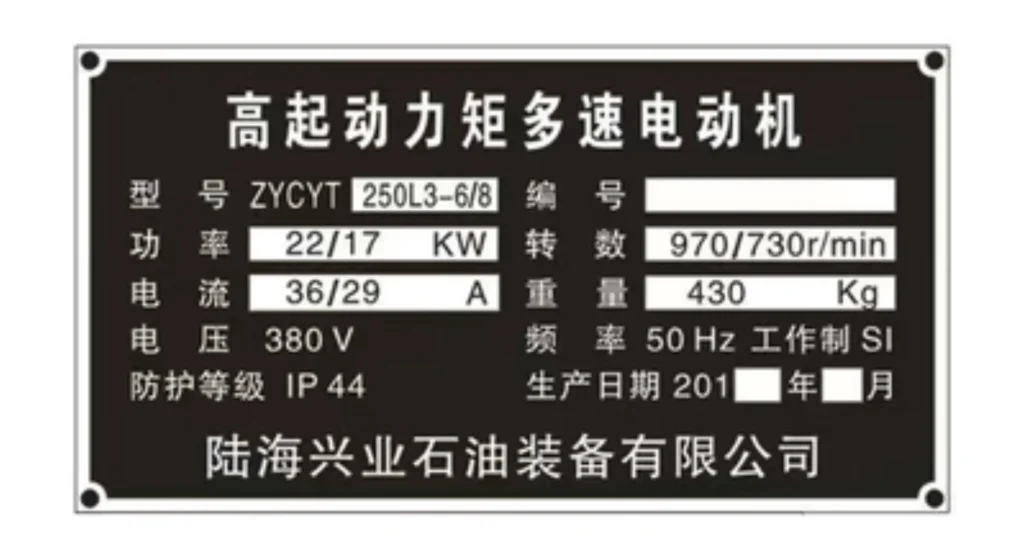

Motor nameplate data board with rating, voltage and full-load current (illustrative)

Always extract key parameters directly from the motor nameplate, not only power rating:

Rated power (kW / HP)
Rated operating voltage
Full-Load-Amperes (FLA, rated motor current)
Nominal frequency
Power factor
Motor efficiency
Locked-rotor / starting current
Service factor
Stator winding connection (Delta / Wye)

Critical note: Relay sizing shall be based on motor FLA, not kW or HP only. Two motors with identical power rating can have very different full-load current depending on voltage, efficiency and pole count.

Check the Motor Voltage and Current Range

Match hardware specifications against your system:

Relay auxiliary supply voltage
Measuring current input range (direct input or CT-connected)
CT rated ratio (for high-current motors)
System operating frequency (50Hz / 60Hz)

Logical sequence for sizing:

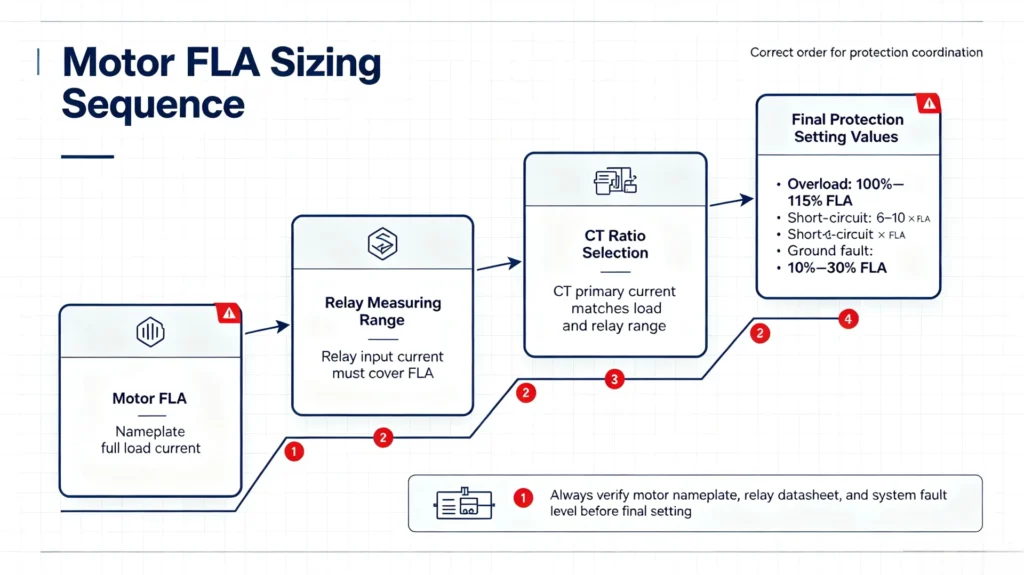

Motor full-load-ampere sizing sequence from the nameplate to the relay pick-up (illustrative)

Motor FLA → Relay measuring range → CT ratio selection → Final protection setting values

Example: For a 320A full-load current motor, select CT ratio and relay measuring input to provide adequate measurement range while preserving fault-detection sensitivity.

Determine Which Motor Protection Functions You Need

Match protection functions to application requirements. ANSI device numbers are widely used in international EPC projects.

Protection Function (ANSI)	Typical Application Requirement
Overload (49)	Almost all induction motors
Short-circuit (50 / 51)	General motor feeder protection
Phase loss	Three-phase industrial motors
Phase unbalance / Negative-sequence (46)	Sensitive, high-value motors
Locked rotor	High-inertia driven loads
Stall protection	Long acceleration-time motors
Earth fault (50N / 51N)	Ground-fault risk environments
Under-current	Pumps, fans for dry-run detection
Overtemperature (49T)	Critical process motors with winding temperature sensors

Explore more motor protection functions

Consider the Motor Starting Method

Motor starting behaviour directly affects relay setting logic. The relay must ride through valid starting inrush current while still detecting genuine locked-rotor or stall faults.

Direct-On-Line (DOL) Starting

High inrush (5-7 × FLA). Relay acceleration timer must cover full motor ramp-up duration.

Star-Delta Starting

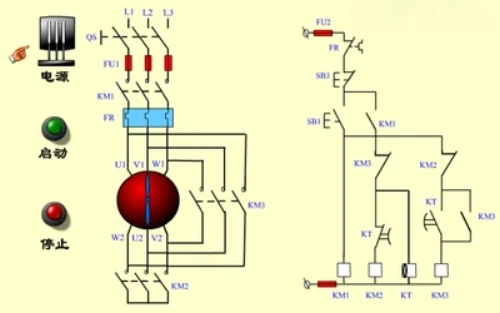

Star-delta reduced-voltage starter wiring used with a motor protection relay (illustrative)

Lower initial starting current; pay attention to unbalance risk during transition phase.

Soft Starter

Smooth ramp-up; monitor for stall conditions during soft-start sequence.

Variable Frequency Drive (VFD)

VFD-fed motors generate harmonic components. Confirm relay hardware suitability for distorted current waveforms.

Key rule: A motor protection relay should NOT nuisance-trip during normal motor starting, but must reliably detect locked-rotor and stall events.

Consider the Motor Load and Application

Different load types create distinct fault patterns. Below table maps typical applications and priority protection features:

Motor Application	Key Required Protection
Pump	Overload, under-current (dry-run), phase loss
Fan	Overload, phase loss, phase unbalance
Compressor	Overload, locked-rotor, winding overtemperature
Conveyor	Overload, stall protection, phase loss
Crusher	Locked-rotor, stall, heavy overload
HVAC motor	Overload, phase loss, unbalance
Critical industrial process motor	Full protection suite + data communication

Check CT Ratio and Current Transformer Compatibility

For motors above approximately 100A, current transformers are required to step-down primary current to relay secondary measuring inputs (typically 1A or 5A). This topic is frequently overlooked in tender specification work by EPC teams.

When Do You Need CTs?

When motor FLA exceeds the relay’s built-in direct-input maximum current.

How to Select the CT Ratio

CT primary rating should cover maximum continuous motor operating current plus service-factor margin. Avoid oversized CT ratios that reduce low-magnitude fault sensitivity.

CT Accuracy and Burden

Confirm CT accuracy class and burden rating match relay input burden requirements, otherwise measurement error will degrade protection performance.

Relay CT-Input Compatibility

Verify relay supports your selected secondary rating: 1A or 5A CT secondary.

Practical example: 320A motor FLA → select 400/5A CT; ensure relay 5A CT-input hardware variant is ordered.

Check Protection Relay Setting Requirements

Hardware nominal current range is not equal to usable setting range. Verify adjustable parameter coverage before purchase: Where the arithmetic is worked out on a real example, the motor protection relay setting calculation page shows the same numbers step by step.

Overload setting range & trip class
Instantaneous / time-delayed overcurrent setting
Earth-fault threshold range
Phase-unbalance threshold
Undervoltage / overvoltage thresholds
Motor acceleration time timer
Trip delay timers
Manual / automatic reset mode

Important concept: Motor FLA ≠ protection setting value. Settings must include margin for service factor, operating fluctuations and starting conditions.

Consider Communication and Monitoring Requirements

Define monitoring and system integration needs during motor relay selection phase.

Local-Only Protection

Suitable for small motors, simple MCC panels, basic industrial workshops. No remote data required.

Motor Protection + Communication

Mandatory for large plants, automated MCC, pump stations, water-treatment, oil-gas and power-plant auxiliaries. Common supported protocols:

Modbus-RTU
Modbus-TCP
IEC61850
Ethernet
Profibus

If SCADA or PLC integration is required, confirm protocol support at specification stage. Adding communication after commissioning is costly and often impossible with existing hardware.

Digital vs. Electromechanical Motor Protection Relays

Feature	Digital Motor Protection Relay	Electromechanical Relay
Protection functions	Multiple configurable functions	Very limited function set
Measurement	High-resolution digital measurement	Basic electromagnetic measurement
Event records / fault logs	Yes, timestamped fault history	Usually none
Communication interface	Available	Rare
Parameter settings	Flexible software configuration	Limited mechanical adjustment
Built-in diagnostics	Advanced motor health diagnostics	Minimal diagnostics

For new-build industrial projects and automated MCCs, digital motor protection relays are generally preferred. Electromechanical devices remain acceptable for low-cost simple retrofit tasks.

Motor Protection Relay Selection Criteria and Where to Go Next

Motor protection relay selection criteria are better written as a checkable list than as a preference. The list holds the nameplate full-load current, the starting current and acceleration time, the starting method fitted at the switchgear, the fault and abnormal conditions the winding has to survive, the CT ratio and the accuracy class the relay input can accept, the setting window the hardware covers, the communication protocol the MCC expects, and the trip margin left against the upstream MCCB or ACB. Any item on that list that cannot be answered from the project data becomes a specification risk at commissioning.

The other pages in this family cover the pieces one at a time:

Read the generation comparison before the function list, or the other way round, but keep the checklist above as the common thread. If the answer is a medium-voltage motor, the 6 kV / 10 kV function set applies first and the low-voltage function list afterwards.

Motor Protection Relay Selection by Application

How to Select a Relay for a Pump Motor

Prioritise under-current / dry-run protection besides standard overload and phase-loss. Specify earth-fault if pump is submerged.

How to Select a Relay for a Compressor Motor

Locked-rotor and thermal overload are high-priority. Consider winding temperature input for heavy-duty cyclic compressors.

How to Select a Relay for a Fan Motor

Phase unbalance and phase loss are critical. Some large fans feature long acceleration times; configure stall and extended acceleration timer.

How to Select a Relay for a Conveyor Motor

Stall protection and locked-rotor functions are essential for jam conditions.

How to Select a Relay for a Large Industrial Motor

Deploy full-featured digital relay, CT-input, communication for SCADA integration, full fault event logging, and full protection suite including negative-sequence and earth-fault protection. For those drives, motor relay selection for industrial motors is driven by the duty of the load rather than by the kW rating: a duty cycle with frequent starts, a high ambient temperature or a long acceleration time changes the thermal model, and a VFD changes the current the relay actually has to see.

Common Motor Protection Relay Selection Mistakes

These mistakes regularly appear in tender specifications and site commissioning reports. Avoid them during your motor relay selection:

Select relay only by motor kW / HP rating: Always reference FLA nameplate value.
Ignoring motor starting current: Nuisance tripping occurs if acceleration timer is insufficient.
Choosing incorrect CT ratio: Oversized CT reduces ground-fault sensitivity.
Skipping verification of setting range: Hardware nominal current may not cover your required setting window.
Ignoring phase-unbalance risk: Damages motor windings under single-phase supply degradation.
Applying identical settings across different motor loads: Pumps, crushers and conveyors require different parameter sets.
Neglecting communication requirements: Cannot integrate with SCADA after hardware delivery.
Ignoring system protection coordination: Relay must coordinate with MCCB, ACB, upstream feeder protection and contactor characteristics.

Motor Protection Relay Coordination

Motor protection relays do not operate in isolation. Proper selective coordination ensures only the faulted motor circuit trips, without cascading upstream outages across MCC or plant distribution systems.

Devices involved in coordination study:

Motor protection relay
MCCB / ACB
Power fuses
Upstream feeder protective relay
Contactor
Backup thermal overload devices

What is selective coordination? Selective coordination means that for a given fault, the closest protective device to the fault operates first, upstream devices remain intact. Time-current curves and time-grade margins (typically ≥0.3s time difference) are applied to achieve selectivity.

Why coordination matters: Poor coordination creates widespread plant shutdown triggered by a single motor fault. This is a major pain-point for EPC contractors and end-users.

Engineering Checklist for the Tender Package

Copy-paste this checklist for your tender specification or internal engineering review.

Motor Data

Motor rated power
Rated operating voltage
Full-Load-Amperes (FLA)
Operating frequency
Starting method
Starting / locked-rotor current
Load application type

Protection Requirements

Overload (49)
Short-circuit (50/51)
Phase loss
Phase unbalance / negative-sequence (46)
Earth-fault (50N/51N)
Locked-rotor protection
Stall protection
Under-current / dry-run
Winding overtemperature (49T)

Relay Hardware Requirements

Current-input type: direct input or CT-input (1A / 5A secondary)
CT ratio selected
Required setting-range coverage
Trip-class requirements
Communication protocol
Digital input / output quantity
Event-recording capability
Installation form (DIN-rail / panel mount)

Frequently Asked Questions

Q1: What is the best motor protection relay?

There is no universal “best” model. The best unit matches your motor nameplate data, required protection functions, starting method, load characteristics, CT parameters and communication needs.

Q2: How do I select a motor protection relay?

Follow the 8-step workflow in this guide: collect motor nameplate data → define required protection → evaluate starting mode → load type → CT compatibility → setting range → communication → protection coordination. A motor protection relay selection is only complete when the trip class and the communication protocol are fixed at the same time.

Q3: What protection does a motor protection relay provide?

Typical functions include overload, short-circuit, phase loss, phase unbalance, locked rotor, stall, earth-fault, underload and winding temperature monitoring.

Q4: What size motor protection relay do I need?

Size based on motor FLA, not kW. Choose relay measuring range covering FLA plus service-factor margin. For higher-current motors select matching CT ratio.

Q5: Do I need a CT for a motor protection relay?

CTs are required when motor full-load current exceeds relay direct-input maximum rating, common for motors >100A.

Q6: What is the difference between a motor relay and an overload relay?

Thermal overload relays offer mainly basic overload and limited phase-loss protection. Digital motor protection relays deliver comprehensive fault detection, flexible settings, diagnostics and communication capability.

Conclusion: How to Choose the Right Motor Protection Relay

Motor protection relay selection ends where the coordination study starts. Everything above narrows the field to two or three relays; the time-current study then decides which of them stays.

Stick to this decision workflow for every project: Motor Nameplate Data → Starting Method → Load Application → Required Protection Functions → CT / Input Hardware → Adjustable Setting Ranges → Communication Requirements → System-level Protection Coordination → Final Relay Selection.

If you are specifying a motor protection relay for an EPC or industrial project, prepare and share these key parameters with your supplier: motor rated power, operating voltage, full-load-current, starting method, CT ratio and required protection functions. With this information, suppliers can deliver precise and technically compliant recommendations rather than generic product suggestions.

Call-to-action: Our engineering team supports EPC contractors and system integrators with motor protection relay specification review, parameter validation and application consultation. Send your motor datasheets for technical evaluation.

When the specification above reaches the hardware stage, send the motor datasheet and the CT data for a technical review. The ASD-441H motor protection relay is one unit built for this scope: it takes CT inputs, carries the standard motor protection function set and exposes measured values over a communication link.

If the form factor and the current inputs are still open, start from the motor protection relay product range and match the selected functions against it, then bring the shortlist back to this checklist.

References & Technical Sources

Source	What it covers	Type	Edition
IEEE C37.96-2012	Guide for AC motor protection: overload, locked rotor, thermal, unbalance and phase-failure duties for motor circuits	Standard	2012
IEC 60255-187-1:2021	Functional requirements for differential protection of motors, generators and transformers (ANSI 87M / 87T)	Standard	2021
IEC 60255-1:2022	General requirements for measuring, protective and related electrical equipment	Standard	2022
ANSI/IEEE C37.2-2022	Relay device function numbers used on protection and control diagrams (49, 50, 51, 87, 87M)	Standard	2022
IEEE C37.112-2018	Inverse-time characteristic equations for overcurrent relays, the basis of the time-current curves used in coordination	Standard	2018
IEC 61869-2:2012	Additional requirements for current transformers: accuracy class, burden and ratio for protection feeders	Standard	2012
IEC 60947-4-1:2012	Low-voltage switchgear and controlgear, part 4-1: contactors and motor starters	Standard	2012
IEC 61850	Communication networks and systems for power utility automation (series standard, no single edition year)	Series	Series standard
