Differential Protection for Star-Delta Transformer: Y-Δ Protection Explained

Table of Contents

How does differential protection work for a star-delta transformer?

Star-delta transformer differential protection has to solve one problem before it can protect anything: the two windings do not share a common phase reference. A Y-Delta unit shifts the low-voltage phasors by a fixed angle, most often 30 or 150 degrees, so the relay measures two current sets that are out of step. Three things must line up at once – ratio, so both sides land on a common base; phase, so the vectors point the same way; and the zero-sequence path, which behaves differently on a star winding than on a delta winding. Enter the wrong vector group, such as Yd11 with its 330-degree displacement, and the relay reads a standing differential current from energisation. Get all three right and the differential current stays near zero on load. The scheme follows ANSI/IEEE C37.2-2022 and IEC 60255-187-1:2021, with transformer limits IEC 60076-1:2011. Setting review and quotation within 12 hours, MOQ 1, 7-15 working days.

Star-delta transformer differential protection has to solve one problem before it can protect anything: the two windings do not share a common phase reference. A Y-Δ unit shifts the LV phasors by a fixed angle, most often 30° or 150°, so the relay measures two current sets that are out of step. Align them, and the scheme behaves like any other 87T.

Three things have to line up at once. Ratio, so both sides land on a common base. Phase, so the vectors point the same way. And the zero-sequence path, which does not behave the same way on a star winding as it does on a delta winding. Get all three right and the differential current stays near zero on load.

This guide covers the vector groups you will actually meet on site, the CT arrangements that go with each one, and the settings that fail most often during commissioning. It follows the general transformer differential protection principle. What changes here is the phase shift.

Written by Leon Zhang, Protection Application Engineer · Technical review by the relayprotect.com engineering team · Last reviewed October 2026

What Is a Star-Delta (Y-Δ) Transformer?

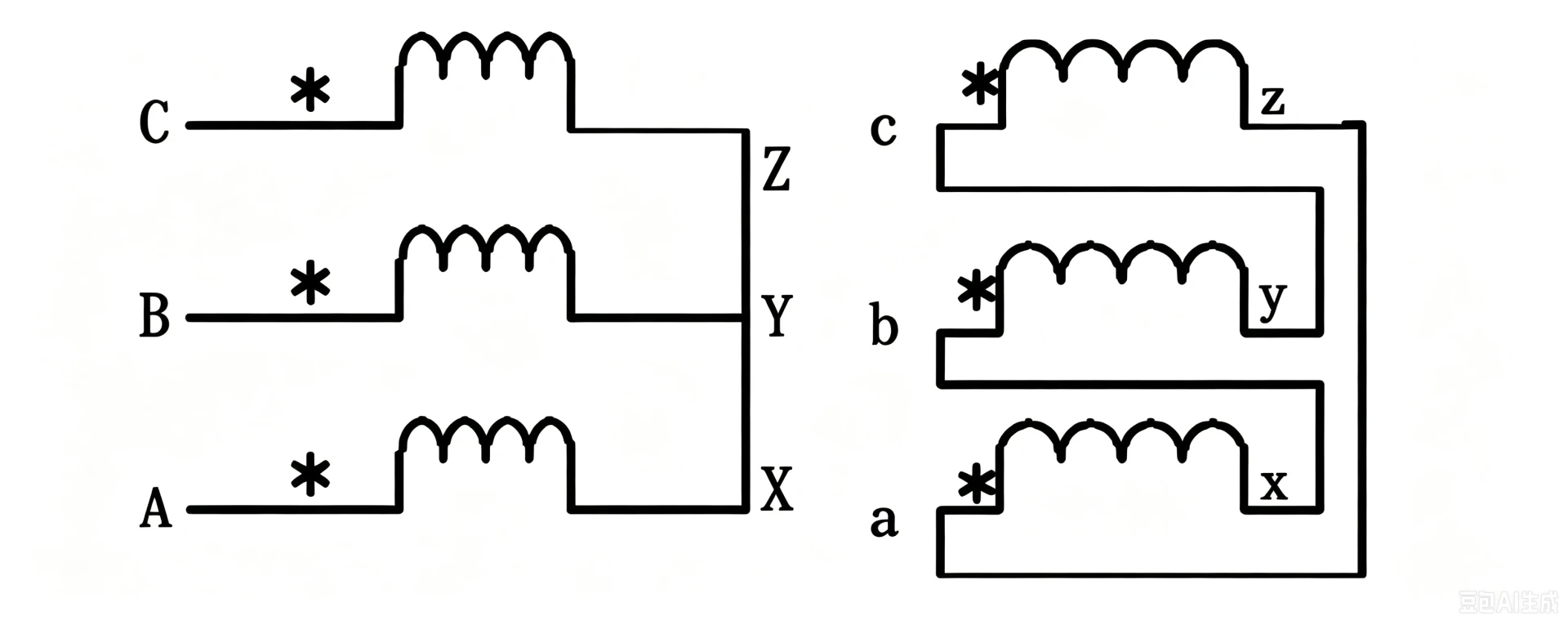

A star-delta (Y-Δ) transformer has its high-voltage winding connected in star and its low-voltage winding connected in delta. It is the standard arrangement for distribution and sub-transmission, where the LV side has to carry an unbalanced or grounded load while the HV side stays isolated from zero-sequence current.

Star-delta transformer differential protection

Winding, Phase Shift and Grounding at a Glance

  • HV winding (star) – Provides a neutral point that can be grounded or left floating, depending on the system
  • LV winding (delta) – No accessible neutral. Zero-sequence current circulates inside the delta and never reaches the line currents
  • Phase displacement – Fixed by the vector group: 30° for Yd1 and Yd11, 150° for Yd5. This is the shift the relay has to remove
  • Grounding – The star side may be grounded. The delta side has no neutral to ground

That mix is the reason the connection stays so common. The delta traps zero-sequence current on the LV side, so a ground fault on the HV system does not push heavy current through the LV line conductors. The star provides a neutral on the HV side, which the system needs for grounding and for ground-fault protection.

Selecting a relay for a live project?

Send the system voltage, CT ratio and tripping scheme. Our engineers confirm the model and reply within 12 hours.

View relay modelsRequest a quote

For the relay, both features change what the measured currents look like.

Transformer Vector Group and Differential Protection

Before a single compensation setting can be entered, the relay has to know how the two windings sit relative to each other. The vector group is the first item star-delta transformer differential protection depends on, and the first thing to read off the transformer nameplate.

What Is a Transformer Vector Group?

A transformer vector group defines the connection configuration of the windings and the phase displacement between the primary and secondary voltages. It is written as letters followed by a number:

  • The letters give the winding connection: D (delta), Y (star/wye), Z (zigzag)
  • The number gives the phase displacement in clock notation, where 1 = 30° and 11 = 330°

So Yd11 means a star HV winding, a delta LV winding, and a displacement of 330°, one of the standard configurations you will find on transmission and industrial units.

Why Does Vector Group Matter to Differential Protection?

The vector group sets the phase relationship between the HV and LV currents. For the relay to calculate a meaningful differential current, both current sets have to be referred to one common axis. That alignment is phase compensation, and 87T vector group compensation is what produces it. Enter the wrong group and the relay reads a standing differential current from the moment the transformer is energized.

Dyn11, Yd1, Yd5 and Yd11 – Common Vector Groups

The clock number gives the LV phasor position when the HV phasor is taken as 12 o’clock. Each hour equals 30°.

Vector GroupHV WindingLV WindingClockShift Between HV and LV
Yd1StarDelta130°
Yd5StarDelta5150°
Yd11StarDelta1130°, opposite direction to Yd1
Dyn11DeltaStar1130°

Yd1 and Yd11 sit the same 30° away from the HV reference, but in opposite directions. That is the part worth remembering. The relay needs the clock number, not just the angle. A relay told “30°” without a direction is being given half the information.

Dyn11 is the mirror case. The delta sits on the HV side and the star on the LV side, which is why distribution transformers are usually built that way. Dyn11 differential protection is configured exactly like any other 30° group, same setting, opposite winding.

The Nameplate Decides the Vector Group

The phase displacement cannot be inferred from the winding connections alone. A star-delta unit may be Yd1, Yd5 or Yd11, and each one demands a different setting. Read the nameplate, then configure the relay. Guessing costs a commissioning day at best.

Phase Displacement and Clock Notation in Y-Δ Transformers

A star-delta transformer introduces a phase displacement between the corresponding HV and LV voltages and currents. The displacement comes from the winding connections and is fixed by the vector group. Compensation is what removes it from the relay’s calculation.

Vector Group and Phase Displacement

Clock notation is the shorthand. Take the HV phasor as 12 o’clock and read the LV phasor position counter-clockwise. The digit in the vector group is the hour you land on.

Because the digit only encodes position, the direction of rotation is part of the definition rather than an afterthought. Two groups a full 30° apart can carry numbers that look unrelated.

Direction matters, not just magnitude.

What Each Group Means for the Relay

The four groups behave differently on site:

  • Dyn11 – HV delta, LV star, neutral brought out. LV phasor at 11 o’clock. The most common distribution transformer arrangement
  • Yd1 – HV star, LV delta. LV phasor at 1 o’clock. Frequent in transmission
  • Yd5 – HV star, LV delta. LV phasor at 5 o’clock, a 150° shift. Less common, but it appears in specific system designs
  • Yd11 – HV star, LV delta. LV phasor at 11 o’clock. Widely used in transmission and industry

Phase Shift Is Not a Fixed 30°

It is tempting to treat every star-delta unit as a 30° case, because Yd11 and Dyn11 are so common. That assumption breaks on a Yd5. The displacement varies with the vector group, so it has to be read from the nameplate rather than assumed from the winding arrangement.

Boundary: this section applies to three-phase two-winding transformers with a mixed star and delta connection. Auto-transformers and zigzag windings follow different rules, and a phase-shifting transformer has a deliberately variable angle that is outside the scope of this guide.

CT Connections: Traditional vs Numerical 87T

There are two ways to remove the phase shift, and the choice changes almost everything downstream: the CT wiring, the drawings, and how long a future modification takes.

Traditional Differential Protection Schemes

In traditional schemes the phase correction is done in the CT secondary circuit. The CTs are wired in the opposite configuration to the windings they measure, so the correction happens before the current ever reaches the relay:

  • Where the transformer HV winding is star-connected, the HV CTs are connected in delta
  • Where the transformer LV winding is delta-connected, the LV CTs are connected in star

The exact arrangement depends on the winding configuration and vector group. It works, and it has worked for decades. It is also a wiring job, and the wiring has to be right the first time.

Numerical 87T Relay Schemes

A numerical transformer differential relay performs vector and ratio compensation in software. The CT secondary connection should not be picked from a generic star-to-delta rule. Follow the relay manufacturer’s wiring diagram.

In a numerical scheme:

  • CTs on both sides are normally connected in star and wired straight to the relay inputs
  • Phase compensation is calculated inside the relay from the configured vector group
  • No external delta connections or interposing CTs are needed
  • Wiring complexity drops, and so does the commissioning time

Traditional vs Numerical: What Changes on Site

ItemTraditional SchemeNumerical 87T Relay
CT secondary connectionMirrors the transformer: delta CTs where the winding is star, star CTs where it is deltaStar (wye) on both sides, wired straight to the relay
Phase compensationExternal, set by how the CTs are wiredInternal, set by the configured vector group
Ratio compensationInterposing or auxiliary CTsRelay settings
Zero-sequence handlingDependent on the CT circuitSelectable removal method
Changing the vector groupRequires re-wiringRequires a setting change
Reference for wiringScheme drawingRelay manufacturer’s wiring diagram

Boundary: the numerical route is the default for new installations. It is not automatically the cheaper one for a retrofit. Re-using delta-connected CTs that are already wired may be simpler than re-wiring the secondary circuit to star, so check the existing installation before committing.

Zero-Sequence Current on the Star Side

Zero-sequence behavior is the second reason star-delta transformer differential protection needs more attention than a plain through-current comparison. The two windings treat this component differently, and the difference shows up as apparent differential current.

Zero-Sequence Current in Star Winding

In a star-connected winding, zero-sequence current can flow when the neutral is grounded. A ground fault on the star side returns current through the neutral path, and that current appears in the phase currents on that side. How much appears depends on the system grounding arrangement and where the fault sits.

Zero-Sequence Current in Delta Winding

A delta winding has no neutral return path, so zero-sequence current cannot flow in the line currents. It circulates inside the closed delta and stays there.

The practical consequence is simple. Zero-sequence current present on the star side has no counterpart on the delta side line currents, and a relay comparing phase currents directly reads the difference as a fault that does not exist. Y-Δ transformer differential protection has to remove that component before the comparison is made.

Effect of Transformer Grounding

ConditionZero-Sequence Behavior
Star neutral groundedFlows on the star side and appears in the phase currents
Star neutral ungroundedCannot flow on the star side unless the external system provides a path
Delta windingCirculates inside the delta. Does not appear in line currents, grounded or not

Zero-Sequence Compensation in 87T Relays

A numerical 87T relay removes the zero-sequence component from the measured currents before the differential calculation. Depending on the model, the relay:

  • Subtracts the zero-sequence component from each phase current
  • Applies the removal according to the vector group and the neutral grounding arrangement
  • Offers a choice of removal method on some models

With the component removed, the relay compares only the positive- and negative-sequence parts, which is what keeps it stable during an external ground fault. The removal method to use is a relay-specific question, so check the manual for the model on your panel.

The Delta Does Not Block Everything

It is common to hear that a delta winding “blocks zero-sequence current”. That is true for the line currents, and it is where the statement should stop. The current still exists inside the delta, and the flux it produces still acts on the core. Treating the delta as an absolute barrier leads to settings that ignore the star-side component altogether.

Why Is CT Compensation Required for Y-Δ Transformer Protection?

On a star-delta transformer the HV and LV currents differ in both magnitude and phase. Compensation exists to make the relay compare currents that are already aligned and already scaled. Skip it and the relay reads a standing differential current on plain load.

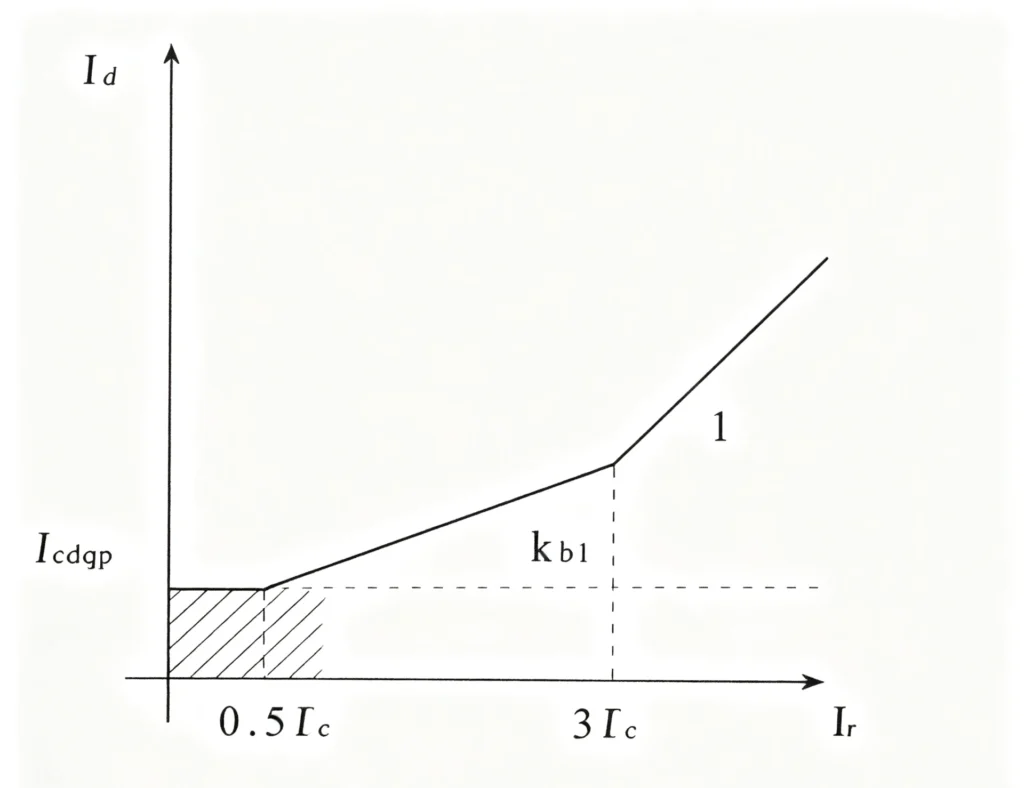

Biased Differential Protection

Compensation Workflow

Compensation follows a fixed order. Get the order wrong and the later steps are wasted:

  1. Identify the winding connection (Y or Δ)
  2. Read the phase displacement from the vector group
  3. Establish the phase relationship between HV and LV currents
  4. Apply ratio and phase compensation in the relay
  5. Confirm the comparison is correct at load
  6. Let the 87T element make the trip decision

Ratio Compensation

HV and LV currents differ by the transformer turns ratio. CT ratios bring both down to measurable secondary values, but a residual difference remains. Ratio compensation scales the CT secondary currents to a common base so the two sides are numerically comparable under normal conditions.

Phase Compensation

The vector group decides the phase displacement. Phase compensation rotates one current set so both sides share a reference axis before the differential current is calculated. Without it, the two current vectors sit at a fixed angle to each other and the vector difference never falls to zero.

Zero-Sequence Removal

Zero-sequence current appears on the grounded star side and not in the delta line currents. Removing that component from the measured currents stops it from registering as differential current. The method is set per relay model. The general 87T working principle page covers the underlying calculation.

What Compensation Has to Achieve

Three conditions, all at once: correctly scaled, correctly aligned in phase, and free of zero-sequence content. Miss any one of them and the relay operates on a current that has nothing to do with a fault.

Why Is Percentage Bias Still Required for Y-Δ Transformer Protection?

Even with ratio, phase and zero-sequence compensation all correct, star-delta transformer differential protection still needs a percentage-biased characteristic. Compensation cannot remove every source of spurious differential current during an external fault.

High through-currents bring three problems with them:

  • CT saturation, which distorts the secondary waveform
  • CT ratio errors from manufacturing tolerance
  • Small measurement errors that become large when multiplied by a high fault current

Those effects produce a residual differential current that grows as the through-current grows. A fixed pickup threshold would read that residual as an internal fault and trip.

Percentage bias answers this by lifting the operating threshold as the through-current rises. The relay compares the differential current against a threshold tied to the restraint current. Stability holds during high-current external faults, and sensitivity is retained for internal faults.

Harmonic Restraint in Y-Δ Transformer Differential Protection

Energizing a transformer draws magnetizing inrush current. The relay reads a differential current on energization that is not a fault, and a scheme without restraint will trip on it. Inrush is not a fault.

Numerical relays separate the two by harmonic content. Inrush carries a high second-harmonic component, while an internal fault is mostly fundamental. The relay measures that ratio and applies restraint or blocking when the second harmonic dominates. The function does not depend on winding configuration, so a star-delta unit gets the same treatment as any other transformer.

One setting detail is worth flagging during commissioning. On some relays, inrush detected in one phase restrains all three. On others, restraint stays per phase. The difference changes the result of an inrush test, so confirm which behavior your model uses before recording the result.

Check the model before the test, not after.

Testing a Star-Delta Differential Scheme

Testing star-delta transformer differential protection covers the same functions as any other 87T, plus the compensation chain that makes them meaningful. Seven items usually decide whether the scheme passes.

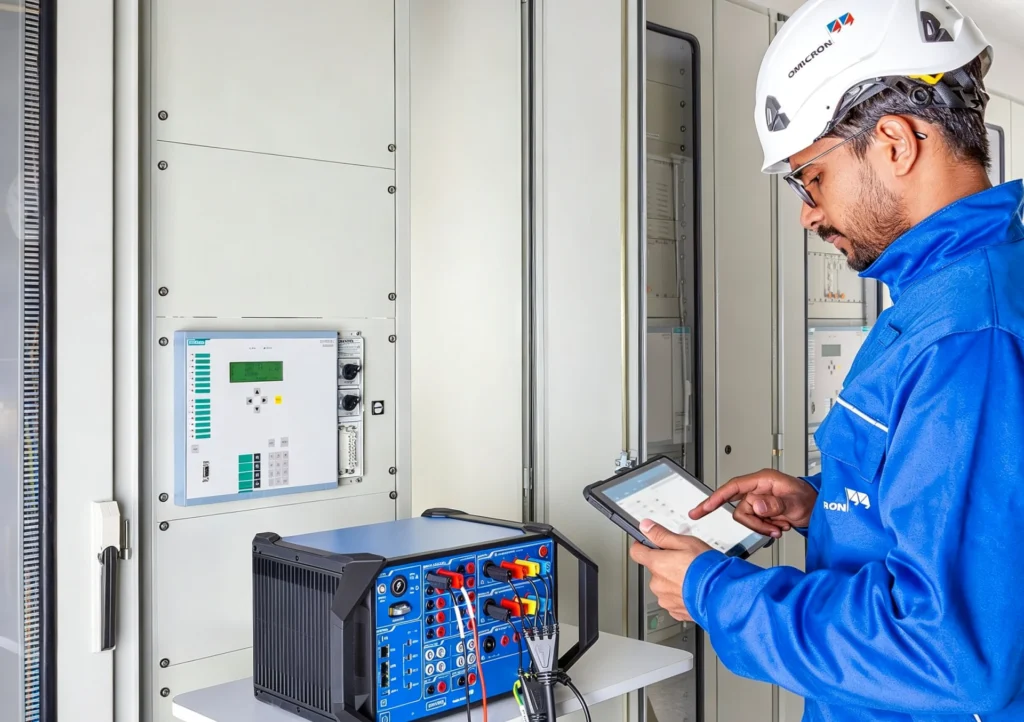

Secondary injection test leads connected to an 87T differential relay (illustrative)
  • CT ratio – Confirm both sides match the nameplate and are entered correctly in the relay
  • CT polarity – Verify the connections. A polarity error leaves a permanent differential current
  • Vector group – Confirm the relay setting matches the transformer nameplate
  • Phase compensation – Verify the relay aligns HV and LV currents after compensation
  • Differential pickup – Inject secondary current and confirm operation at the set threshold
  • Slope characteristic – Test the bias characteristic at several points, not just one
  • Harmonic restraint – Simulate inrush and confirm the restraint operates

Run these before first energization. Secondary injection proves the relay logic. Primary injection proves the whole CT-to-relay path. Full procedures and a record sheet are on the 87T testing page.

Star-Delta vs Star-Star Transformer Differential Protection

The two connections fail for different reasons, and mixing up the two lists is a common source of wrong settings. The phase shift drives everything on a star-delta unit. The zero-sequence path drives everything on a star-star unit.

ItemStar-Delta (Y-Δ)Star-Star (Y-Y)
Phase shift, HV to LVFixed by the vector group: 30° or 150°0° for Yy0, or 180° for Yy6. Nothing to phase-compensate
Main setting problemVector group and phase compensationZero-sequence path on both sides
LV-side zero-sequenceCirculates in the delta and never reaches the line currentsAppears in line currents when the LV neutral is grounded
Third-harmonic pathThe delta winding provides a circulating pathNeeds a delta tertiary or stabilizing winding, otherwise the path is missing
First check on siteNameplate vector groupNeutral grounding arrangement

The zero-sequence side of the comparison is covered in more detail on the star-star transformer differential protection page.

Common Star-Delta Transformer Differential Protection Problems

Most faults on these schemes look the same from the panel: a differential current that should not be there, or a trip that does not arrive when it should. The table maps the usual symptoms to the cause and to the first thing worth checking.

SymptomLikely CauseWhat to Check
High differential current on loadCT polarity or ratio errorCT wiring and ratio against the nameplate
Persistent phase mismatchWrong vector group enteredTransformer nameplate, then the relay setting
Trip on an external faultCT saturation or an incorrect bias slopeCT burden and the bias characteristic
Instability on a ground faultZero-sequence not removedNeutral grounding and the relay removal method
No operation on an internal faultCompensation misconfiguredVector group and ratio settings
Trip immediately after energizationInrush restraint not activeHarmonic restraint setting and the inrush record

Two of these deserve a note. A wrong vector group and a CT polarity error produce almost identical symptoms on a load reading, so check both before changing anything else.

A trip right after energization is nearly always a restraint setting, not a transformer fault.

What to Look for in a Y-Δ Transformer Differential Relay

When selecting a relay for a star-delta transformer, these are the functions that decide whether the scheme can be commissioned without workarounds:

  • Configurable protection logic – The flexibility to adapt protection functions to project requirements
  • 87T vector group compensation – A clock-notation setting that covers Yd1, Yd5, Yd11 and Dyn11 without re-wiring the CT circuit
  • CT ratio compensation – Adjustable scaling to bring HV and LV currents onto a common reference
  • Percentage bias – A biased characteristic with at least two slopes for stability during external faults
  • Harmonic restraint – Second-harmonic blocking or restraint for inrush detection
  • Zero-sequence removal – A configurable method for star-side ground faults
  • Event recording – Disturbance records for post-event analysis and for closing out commissioning queries
  • IEC 61850 – Communication support where the substation automation system requires it

Two of those items are worth checking against the actual nameplate before ordering. Confirm the vector group list covers the group stamped on your transformer, and confirm the zero-sequence method matches how the star neutral will be grounded. For the hardware side, see the 87T relay.

Star-Delta Transformer Differential Protection – Q&A

The ten questions below come up most often during design review and commissioning.

Q1. Why does a star-delta transformer require phase compensation?

The winding connection puts a fixed displacement between the HV and LV currents. Phase compensation rotates one set to a shared reference so the relay calculates a meaningful differential current. Without it, the two sides never cancel on load.

Q2. What is the vector group of a star-delta transformer?

It depends on the transformer. Yd1, Yd5, Yd11 and Dyn11 are the common ones. Read the actual group from the nameplate and enter that in the relay. The winding connection alone does not determine it.

Q3. How does a Dyn11 transformer affect differential protection?

Dyn11 differential protection works on the same principle as any other mixed vector group. The LV phasor sits at 11 o’clock, giving a 30° displacement that the relay has to remove. Set the wrong group and the differential current appears as soon as load is applied.

Q4. What CT connection is used for star-delta transformer differential protection?

It depends on the scheme. Traditional schemes may use delta-connected CTs on the star side to correct the phase shift in the secondary circuit. Numerical relays normally accept star-connected CTs on both sides and do the correction internally. Follow the manufacturer’s wiring diagram in either case.

Q5. Can a numerical 87T relay compensate for the phase shift internally?

Yes. Most numerical 87T relays apply phase compensation in software from the configured vector group, which removes the need for external CT re-wiring. Confirm the supported group list for the model before ordering.

Q6. How does zero-sequence current affect Y-Δ transformer differential protection?

With a grounded star neutral, zero-sequence current flows on the star side and has no counterpart in the delta line currents. Without removal, that difference reads as differential current. Numerical relays remove it internally, and traditional schemes handle it in the CT circuit.

Q7. Why can incorrect CT polarity cause differential current?

A reversed CT polarity inverts the relationship between primary and secondary current. The two sides no longer subtract to zero, and a differential current appears on load. Verify polarity during commissioning, before any setting is adjusted.

Q8. What causes false tripping in star-delta transformer differential protection?

The usual list: a wrong vector group setting, CT polarity errors, CT ratio mismatch, zero-sequence current left uncompensated, CT saturation during an external fault, and harmonic restraint set incorrectly. Checking them in that order covers most cases.

Q9. What is the difference between Y-Δ and Y-Y transformer differential protection?

Zero-sequence behavior, mainly. A star-delta unit has zero-sequence current only on the grounded star side, and it has to be removed. A star-star unit can carry zero-sequence on both sides, depending on grounding, so the compensation problem is a different one.

Q10. How is a star-delta transformer differential relay tested?

Check CT ratio and polarity, run secondary injection for pickup and slope, verify harmonic restraint, and finish with primary injection to prove the complete path. Verify the vector group and phase compensation settings before the first of those tests.

Conclusion

Star-delta transformer differential protection comes down to removing a fixed phase shift, then keeping the scheme stable around it. Most commissioning failures trace back to three things: a vector group set from assumption rather than from the nameplate, a CT polarity error, and zero-sequence current left uncompensated.

None of those are hard to avoid. Read the nameplate. Check polarity before touching settings. Confirm which zero-sequence method the relay uses and match it to the neutral grounding arrangement.

That sequence catches nearly everything before the transformer is energized. The settings themselves follow from the same three inputs: transformer ratio, vector group and CT data.

The calculation method and the parameter ranges are on the 87T setting guide, which works through the pickup and slope values in order. For the phase-domain background, the general numerical 87T page covers how the differential and restraint currents are formed.

References

SourceWhat It CoversTypeEdition
IEC 60076-1Power transformers, general. Defines connection symbols and clock notation for vector groupsStandardIEC 60076-1:2011 (Ed. 3.0)
IEC 60255-187-1Functional requirements for restrained and unrestrained differential protection of motors, generators and transformersStandardIEC 60255-187-1:2021 (Ed. 1.0)
IEEE C37.91Guide for protective relay applications to power transformersGuideIEEE C37.91-2021
ANSI/IEEE C37.2Electrical power system device function numbers and contact designations. Defines the 87T functionStandardANSI/IEEE C37.2-2022
IEC 60255-1Measuring relays and protection equipment, common requirementsStandardIEC 60255-1:2022 (Ed. 2.0)

Send the nameplate data if you want the settings checked before the panel is built.

About Author
Leon Zhang
Hello, I'm Leon Zhang. I have 15 years of experience in the power relay protection industry with extensive pre-sales and after-sales project experience. Our company specializes in various complete sets of relay protection and automation equipment. I can assist customers in solving all practical on-site project challenges and provide optimal integrated solutions.
Tell Us Your Requirement
Send an Inquiry

High Quality

Stable performance, reliable design, ensuring safe operation for power system protection and grid stability.

Fast Delivery

Timely delivery to support your urgent orders and project schedules efficiently and professionally at any time.

Best Warranty

Professional Warranty: Reliable after-sales support for stable relay protection and long-term customer satisfaction.
