Motor Differential Protection vs Overcurrent Protection: What Is the Difference?

Motor differential protection vs overcurrent protection is not an either-or choice. 87M compares the current entering the winding with the current leaving it and trips in about 20–40 ms. 50/51 waits for the current to pass a pickup and stay there.

Most critical MV/HV motors end up with both.

Written by Leon Zhang, Protection Application Engineer · Technical review by Li Ming, Electrical Engineer · Last reviewed September 2026

87M covers internal winding faults, including ones too small to look like overcurrent at all. It cannot see overload, locked rotor or a fault on the cable outside the motor, so motor differential protection is never fitted on its own.

What follows is the difference in what each one measures, how fast it clears, and the conditions under which one of them is enough.

What Is 87M Motor Differential Protection?

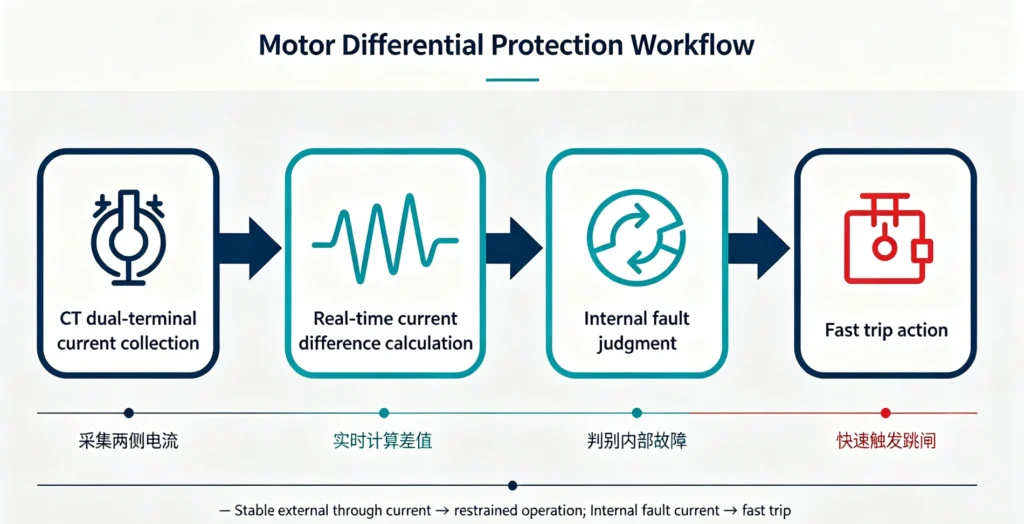

Working Principle of 87M Differential Protection

87M motor differential protection is a zone-selective protection technology based on current comparison, built for stator internal faults on rotating machines. Its core configuration requires current transformers (CTs) at both the motor line terminal and the neutral terminal, which is the condition that decides whether the scheme can be built at all.

Four steps sit between the winding and the trip:

1. CTs collect current at both ends of the winding
2. The relay forms the difference in real time
3. The difference is compared against the restraint characteristic
4. A trip is issued with no intentional delay

Faults Detected by 87M Protection

87M focuses on motor internal fault protection with precise zone selectivity, covering all typical faults inside the motor differential protection zone:

• Stator winding inter-phase short circuits
• Phase-to-ground faults in motor windings
• Local winding turn-to-turn short circuits
• Internal metal short-circuit faults of MV/HV motors

The 87M element does not need the current to be large. It responds to the imbalance itself, so a winding fault is cleared before it grows into something an overcurrent relay would notice.

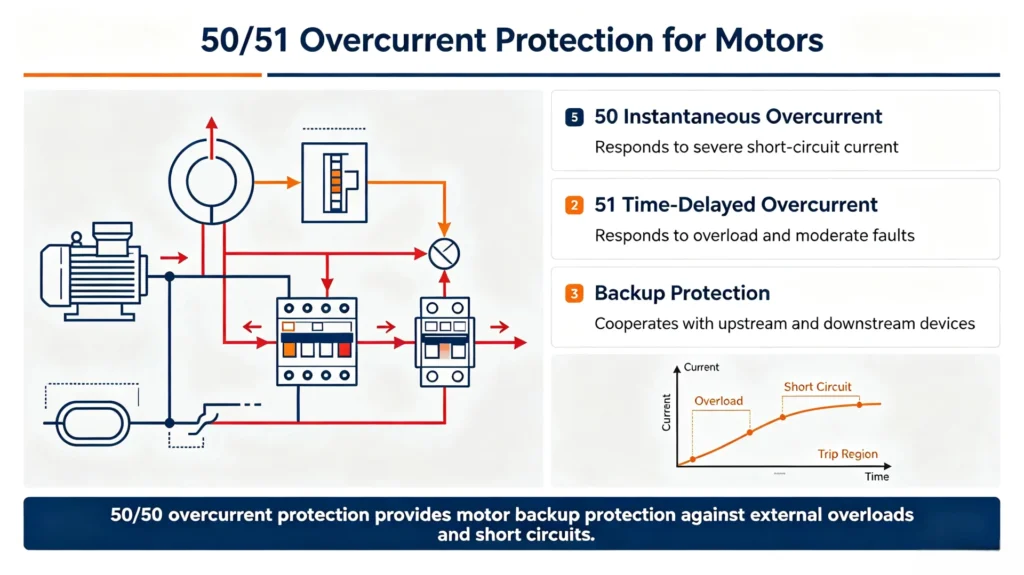

What Is 50/51 Overcurrent Protection for Motors?

Working Principle of 50/51 Protection

ANSI 50 (instantaneous overcurrent) and ANSI 51 (time-delayed overcurrent) are conventional current-based protection schemes widely used in motor systems. Unlike the current-comparison logic of 87M, 50/51 protection judges faults solely on current amplitude and duration.

The relay monitors real-time operating current of the motor. When the current exceeds the preset pickup value:

• ANSI 50: Triggers instantaneous tripping for high-magnitude short-circuit overcurrent
• ANSI 51: Executes delayed tripping following fixed time-current curve (TCC) for mild or sustained overcurrent

Faults Detected by 50/51 Protection

50/51 protection serves as the basic overcurrent and backup protection for motors, with wide coverage but no fixed protection zone:

• Motor overload overcurrent faults
• Locked rotor and motor stalling faults during startup and operation
• Large-current internal short-circuit faults of motors
• External line short-circuit faults of the motor branch
• Backup protection for upper and lower system faults

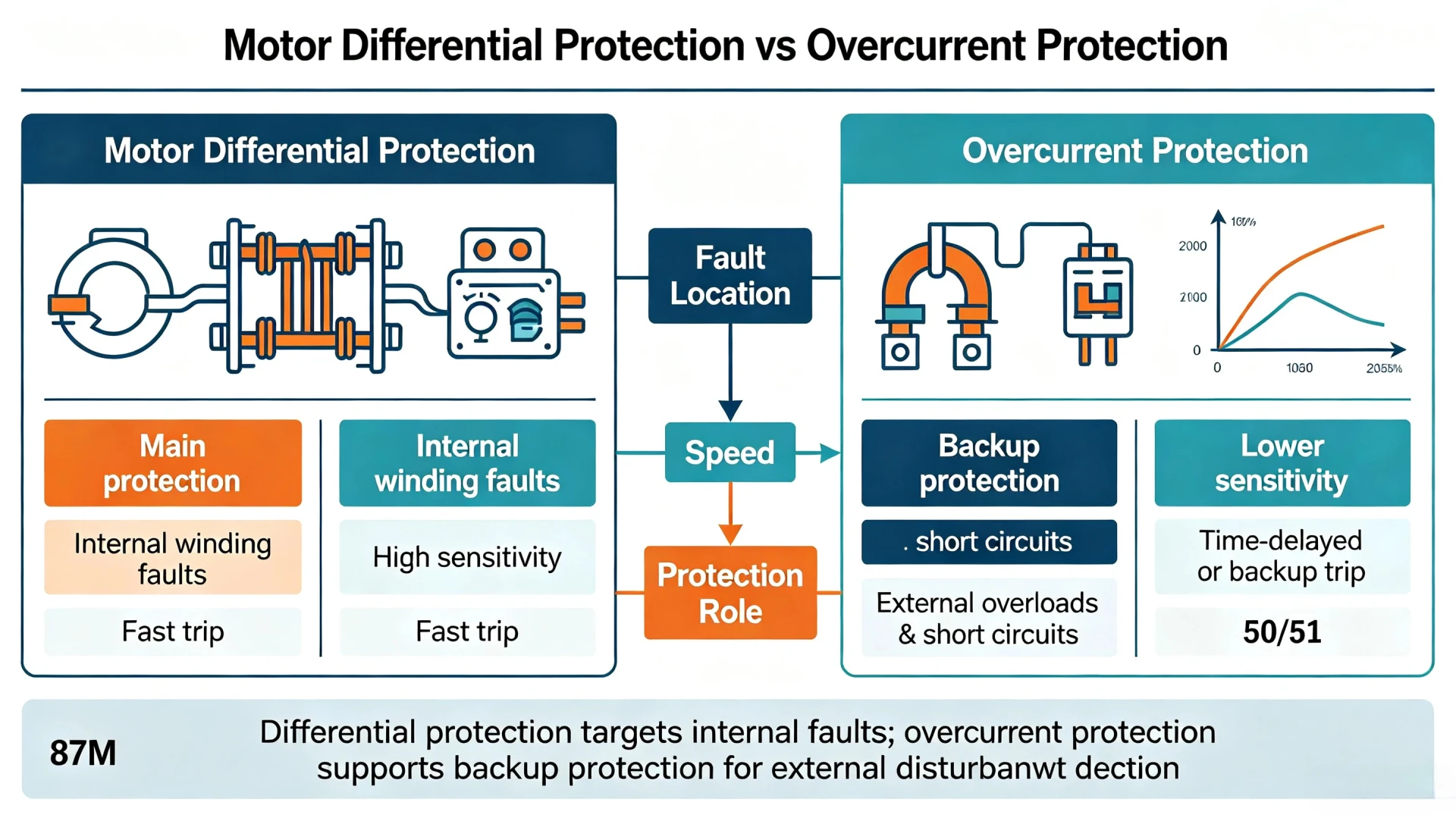

Core Differences: Motor Differential Protection vs Overcurrent Protection

The motor differential vs overcurrent distinction is not about which one is better. It is about what each one measures: 87M measures a difference between two points, and 50/51 measures a magnitude at one point.

Every row in the table below follows from that.

Protection Dimension	87M Motor Differential Protection	50/51 Overcurrent Protection
ANSI Standard Function	87M (Motor Differential)	50 (Instantaneous Overcurrent) / 51 (Time Overcurrent)
Core Working Principle	Real-time current comparison between motor two ends	Fault judgment based on current magnitude and duration
Main Protection Purpose	Selective protection for motor internal faults	Motor overcurrent protection and system backup protection
Fault Selectivity	High (fixed differential protection zone)	Low (no independent protection zone)
Internal fault reach	Sees faults that never raise the current above the 51 pickup	Sees only faults large enough to pass the pickup, commonly set at 1.05–1.2 × full-load current
External Fault Performance	Stable, no misoperation through external faults	May operate depending on system coordination settings
CT Configuration Requirement	Dual-terminal matched CTs required	Single-side current measurement sufficient
Cost & Complexity	Higher (strict CT matching and wiring requirements)	Lower (simple configuration and easy commissioning)
Typical Application	Medium/high-voltage, large, critical industrial motors	All types of motors, basic and backup protection

87M vs 50/51: Internal Fault Protection Performance

87M vs 50/51 on internal faults comes down to where the threshold sits. A 51 element is normally set just above full-load current, so any winding fault below that level is invisible to it, however long it burns.

87M: Professional Internal Fault Protection Solution

Stator winding faults are the most common and most destructive failure on MV/HV motors. An 87M zone is closed by the two CT sets, so the element captures the imbalance a local short circuit produces without having to wait for the current to grow. Load current does not enter into it, because load raises both ends by the same amount.

That is the reason 87M is fitted at all: a winding fault caught early is a repair, and the same fault caught late is a rewind.

Limitations of 50/51 for Internal Fault Protection

It is a common engineering misunderstanding that “50/51 cannot protect motor internal faults”. In fact, 50/51 can detect internal faults with obvious overcurrent characteristics, but it has inherent technical limitations:

• No zone identification capability: It cannot distinguish whether the fault occurs inside the motor or in the external line
• Low sensitivity: Minor winding short-circuit faults without significant overcurrent cannot be identified
• Restricted clearing speed: Tripping time is affected by system coordination and time-delay settings

Tripping Speed: 87M vs 50/51

Fault clearing speed directly determines the damage degree of motor equipment and the scope of power system impact.

87M. Nothing upstream has to be graded against it, so there is no intentional delay at all. Operating time is the relay’s own measurement time, one to two cycles at 50 Hz, roughly 20–40 ms.

50/51. ANSI 50 has no intentional delay either, but it only acts above a high-set threshold well above load. ANSI 51 follows its curve, and that curve has to sit a coordination interval clear of the device downstream, typically 0.2–0.4 s.

Mild overcurrent therefore clears in seconds rather than cycles.

On internal faults the gap is about two orders of magnitude.

It is not a setting problem and cannot be closed by adjusting the 51 curve.

Can 87M and 50/51 Be Used Together?

Yes, and on MV/HV critical motors it is the usual arrangement.

The two do not overlap. 87M cannot see what happens outside its zone, and 50/51 cannot see small faults inside it, so each covers the other’s blind spot rather than duplicating it.

Core Role of 87M

87M is the primary protection for the winding itself.

It clears internal faults in about 20–40 ms and leaves everything outside its zone to the other elements.

Core Role of 50/51

50/51 is the general-purpose element.

It covers overload, locked rotor and faults on the motor cable, and it is what trips if 87M is out of service or a CT circuit is open.

Standard 87M + 50/51 Motor Protection Scheme

The combined protection scheme is widely adopted in power plants, chemical industry, metallurgy and other industrial scenarios with high motor operation reliability requirements.

The chain runs in one direction:

1. Motor
2. Matched CTs at both winding ends
3. 87M differential element as primary protection
4. 50/51 overcurrent element as backup
5. Circuit breaker trip coil

87M takes the winding, 50/51 takes everything the winding element cannot measure. Neither is optional on a machine whose rewind lead time is measured in months.

When Is 87M Differential Protection Mandatory?

87M is not fitted on every motor.

It is specified where the winding is expensive to rewind or the consequence of losing the machine is large:

• Medium/High-Voltage Large Motors: MV/HV induction motors and synchronous motors with large capacity, whose winding repair and replacement costs are extremely high
• Critical Process Motors: Core equipment such as plant water supply pumps, air compressors, industrial fans, and grinding mills, whose failure will cause full process shutdown
• High-Reliability Scenarios: Power plant auxiliary motors and continuous production motors where a nuisance trip is as costly as a missed one

When Is 50/51 Protection Sufficient?

The motor differential protection vs overcurrent protection decision goes the other way when the machine is small and cheap to replace. 50/51 alone is enough for these:

• Small-capacity low-voltage motors with low equipment value
• Non-critical auxiliary motors that will not affect the overall production process after failure
• Cost-sensitive projects with low protection accuracy requirements
• Scenarios where dual-terminal CT wiring and matching cannot be implemented

87M vs Overload Relay: What 87M Does Not Cover

An 87M element measures a difference.

A sustained overload raises the current at both ends of the winding by the same amount, the difference stays near zero, and the differential element does nothing at all.

So the 87M vs overload relay question has a short answer: 87M is blind to overload, locked rotor and negative-sequence heating, and those are exactly the conditions that damage insulation slowly rather than suddenly. An overload protection relay (ANSI 49) tracks them from the current and the motor thermal time constant, and 50/51 covers the high-current end.

Where 87M is fitted, the usual set is 87M plus 49 plus 50/51 on one device. No setting on any one of the three closes the gap left by the other two.

Engineering Selection Decision Table: 87M or 50/51

Read the middle column first.

Motor rating is only a proxy for what actually decides the choice: what an unplanned stop costs, and whether a second CT set can physically be fitted.

Power figures below are indicative.

Plant condition	What decides it	Configuration
Small LV motor, non-critical duty	Replacing the machine costs less than the CTs and the wiring	50/51
General MV motor, both ends accessible	Whether the outage cost justifies six CTs today	50/51 now, with spare CTs run to the panel so 87M can be added later
Large MV/HV motor, roughly 2 MW and above	Winding repair cost and rewind lead time	87M + 50/51
Critical process motor	Cost of a full process stop, not of the motor	87M + 50/51 + 49
Neutral end not accessible	No second CT set can be fitted, so a 6-CT zone cannot be built	50/51, plus a core-balance element at the terminal box if space allows
Lowest-capex project	Capital cost only	50/51

Where the question is which relay model rather than which principle, see motor protection relay selection.

Basic Relay Setting Overview

Both elements need setting, and the numbers are kept general here because they depend on the motor and the CTs. What matters on a comparison page is which quantity each element is set against.

Core Settings for the 87M Relay

Differential pickup, bias slope, CT ratio matching and saturation handling.

The setting problem is the same in every case: hold the pickup above the imbalance two CT sets produce at full load, and below the smallest internal fault that has to be caught.

Pickup and slope are set in 87M protection settings.

Core Settings for the 50/51 Relay

Overcurrent pickup, the 50 high-set threshold, curve family, time dial and the grading margin against the device downstream. Raising the pickup buys immunity to starting current and costs internal-fault coverage, which is the trade-off to write down.

The procedure is set out under overcurrent protection relay settings.

Common Engineering Misunderstandings

Most motor differential protection vs overcurrent protection arguments on a project come down to one of three mistakes.

Misunderstanding 1: 50/51 Cannot Detect Motor Internal Faults

Fact: 50/51 does respond to an internal fault once that fault drives enough current. What it cannot do is see one that stays below the pickup, and it cannot tell you whether the fault is inside the machine or on the cable.

Misunderstanding 2: 87M Can Replace All Motor Protection Functions

Fact: 87M measures the difference across the winding and nothing else.

Overload, locked rotor, thermal ageing, negative sequence and earth faults all need separate elements, which is why an 87M relay still carries 49, 46 and 50/51 alongside it.

Misunderstanding 3: Ignore CT Matching for 87M

Fact: mismatched ratio, an undersized CT class or a reversed pair will produce a standing differential current. One reversed pair gives roughly twice load current in that phase, so the element trips on load rather than on a fault.

FAQ

Q1: What is the essential difference between 87M and 50/51 motor protection?

87M is a zone-selective internal fault protection based on dual-terminal current comparison, and trips in about 20–40 ms. 50/51 is a general overcurrent and backup protection based on current magnitude and time, and trips on a curve.

Q2: Is 87M better than 50/51 for motor protection?

Neither is better in general.

A motor differential protection vs overcurrent protection decision is made on what the machine costs to lose: 87M buys sensitivity to small winding faults, 50/51 buys coverage of everything else at a fraction of the cost.

Q3: Can 50/51 protection cover motor internal faults?

Only the ones large enough to pass the pickup.

Below that level, and on any fault where the relay cannot tell inside from outside, 50/51 has no operating quantity to work from.

Q4: Do industrial motors need both 87M and 50/51 protection?

Large MV/HV motors and any motor whose stop halts a process need both. A small non-critical motor can run on 50/51 alone, and adding six CTs to it would cost more than the machine.

Q5: What are the CT requirements for 87M differential protection?

Matched CTs of the same ratio, class and polarity at the line side and the neutral end. If the neutral end cannot be reached, the 6-CT arrangement cannot be built and the choice is made for you.

Conclusion

Comparing motor differential protection vs overcurrent protection, the two are complementary rather than alternatives. 87M clears internal winding faults in about 20–40 ms without waiting for the current to grow; 50/51 covers overload, locked rotor and everything outside the winding zone that 87M cannot measure.

For MV/HV machines and anything process-critical, the combined scheme is the one to build. 87M catches the winding fault while it is still a repair; 49 and 50/51 cover the conditions 87M cannot measure at all.

The 87M motor differential protection relay carries the differential element, the thermal model and 50/51 on one device, so a combined scheme does not need three relays in the cubicle.

Technical References

Source	What it covers	Type	Edition
IEC 60255-187-1	Functional requirements for differential protection of motors, generators and transformers	Standard	2021
IEC 60255-151	Functional requirements for over/under current protection (the 50/51 side)	Standard	2009
IEEE C37.112	Inverse-time characteristic equations for overcurrent relays	Standard	2018
IEEE C37.96	Guide for AC motor protection	Guide	2012
IEC 60255-1	Measuring relays and protection equipment – common requirements	Standard	2022
ANSI/IEEE C37.2	Device function numbers, acronyms and contact designations	Standard	2022
