Why Reverse Power Flow Protection Matters for Grid‑Connected Distributed Energy Resources

Introduction

Reverse power flow protection is a core ANSI 32 electrical protection function designed to detect unintentional negative active power flow and trigger alarms or breaker trips to safeguard generators, transformers, switchgear, and utility grid assets. For EPC contractors, plant owners, and electrical engineers, mastering this protection scheme is critical for compliant grid interconnection, stable microgrid operation, and long-term equipment safety.

Not all reverse active power flow is faulty. Intentional grid export in grid‑tied solar systems is a designed operating mode, while accidental reverse active power flow caused by equipment failure or parameter errors poses severe operational risks.

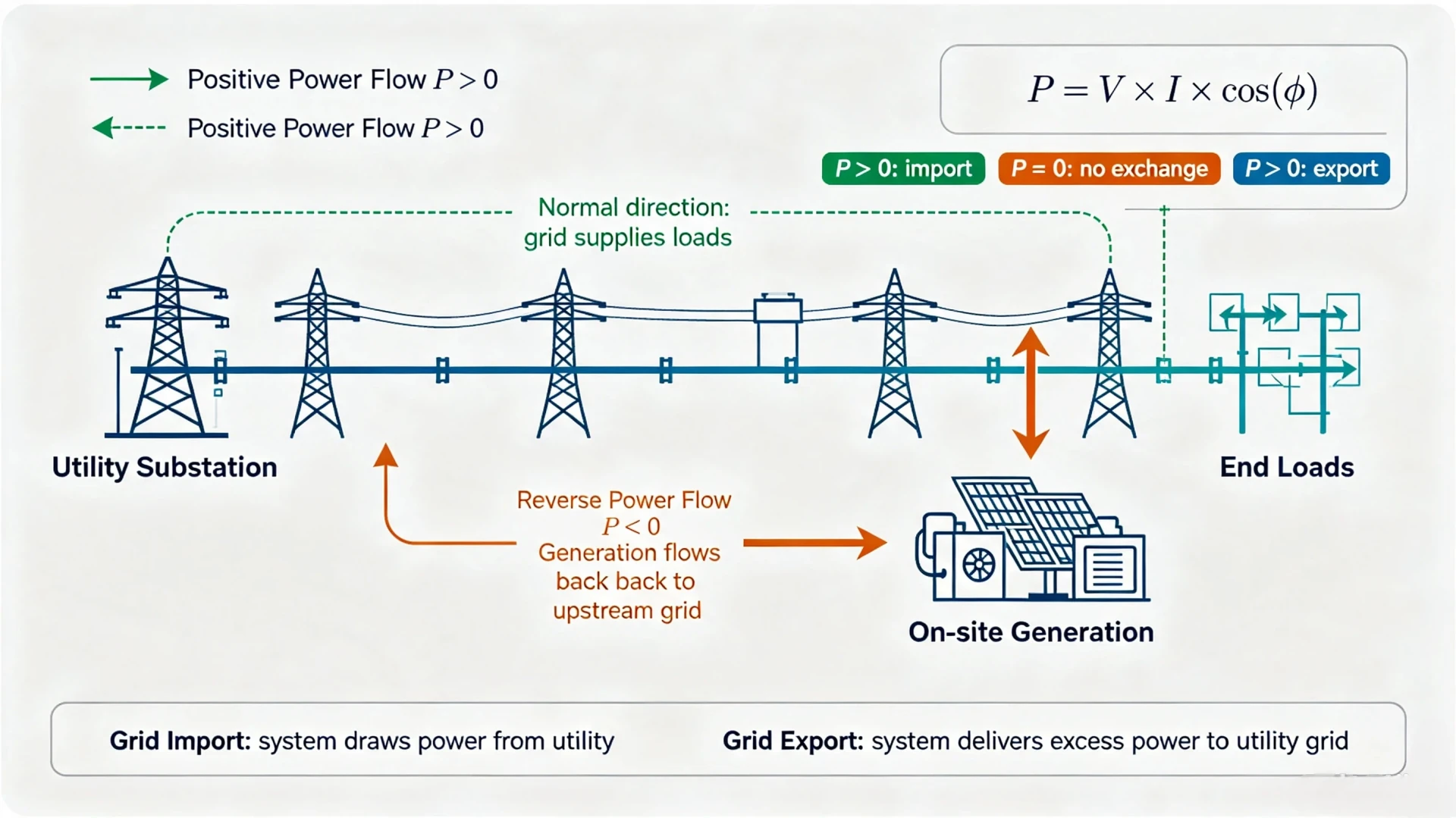

In conventional power grids, active power flows unidirectionally from utility substations to end loads (positive power flow). Reverse power flow refers to the inversion of active power direction, where power flows from on-site generation assets back to the upstream grid or between parallel generators.

Based on power calculation formula ：

• Positive power (P > 0): Normal power flow, grid supplies power to loads
• Negative power (P < 0): Reverse power flow, on-site generation feeds power backward

Grid import means the system draws power from the utility, while grid export means the system delivers excess power to the utility grid.

Common Causes of Reverse Power Flow

Reverse power flow is most prevalent in distributed generation and microgrid scenarios, with typical triggers categorized as follows:

• Excessive solar PV generation: Midday solar output exceeds on-site load consumption, creating surplus power for grid export
• Generator abnormal operation: Prime mover failure, incorrect synchronization, or parallel unit load imbalance leads to grid power flowing into generators
• Grid and microgrid switching: Transition between grid-tied and islanded modes causes transient power direction reversal
• Wiring and measurement errors: Incorrect CT polarity or reversed phase sequence leads to false reverse power detection
• Islanding faults: Unplanned islanding operation disrupts normal power flow coordination

Is Reverse Power Flow Always a Problem?

Reverse power flow is not inherently faulty. The key distinction lies in intentional design vs. accidental abnormality:

• Permissible reverse power flow: Designed grid export for grid-tied solar and wind projects, allowed by utility interconnection standards
• Hazardous reverse power flow: Unintentional power reversal that causes generator motoring, equipment overload, or grid instability

Many industrial and commercial projects adopt zero‑export requirements mandated by local utilities, prohibiting any reverse power flow to the grid and requiring strict reverse power protection and export control. The reverse power protection circuit detects power back‑feed and triggers breaker tripping to enforce such zero‑export constraints.

Purpose of Reverse Power Protection

Prevent Generator Motoring Damage

Generator motoring is the most severe risk caused by abnormal reverse power flow. When a generator’s prime mover (diesel engine or turbine) fails or loses power, the generator stops producing electricity and acts as a synchronous motor, drawing continuous power from the grid.

This motoring operation causes irreversible damage: mechanical stress on crankshafts, overheating of stator windings, blade damage in turbines, and accelerated wear of prime mover components. Diesel generators rely entirely on ANSI 32 reverse power protection to avoid long-term motoring operation.

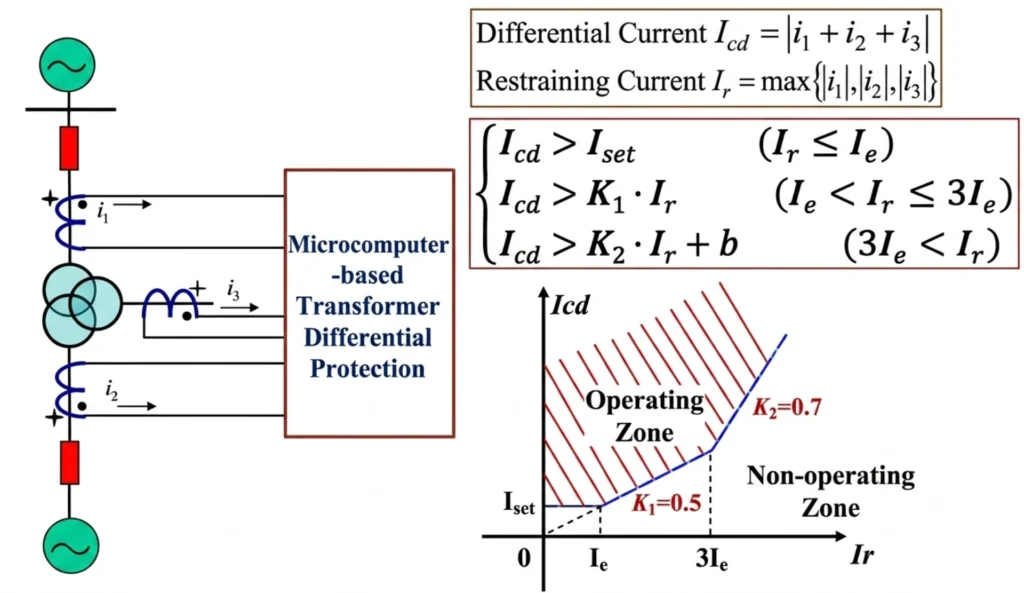

Protect Transformers and Upstream Grid Assets

Uncontrolled reverse power flow creates abnormal loading on distribution transformers and upstream switchgear, disrupting regional grid power flow coordination. In severe cases, it causes overvoltage, overcurrent, and relay misoperation on the utility side, triggering widespread grid protection actions.

Meet Solar and DER Grid Interconnection Standards

All grid-connected solar PV and distributed generation projects require reverse power protection to comply with utility rules. It limits unregulated power export, prevents grid voltage fluctuation caused by surplus renewable power, and satisfies zero-export and grid safety requirements for commercial and industrial sites.

Reverse Power Protection Working Principle

Reverse power flow protection relies on high-precision electrical measurement and logical judgment to identify power direction anomalies. The complete working workflow follows a fixed industrial logic:

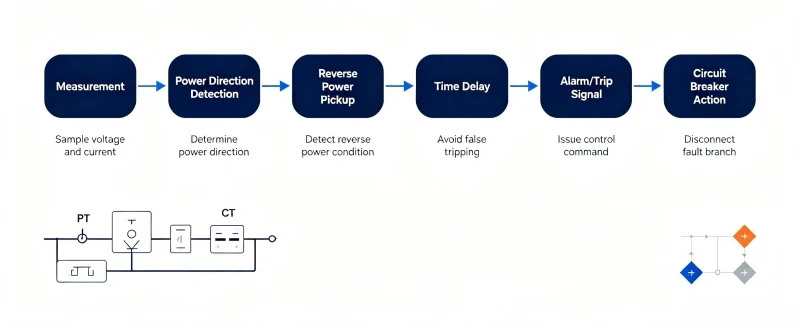

Measurement → Power Direction Detection → Reverse Power Pickup → Time Delay → Alarm/Trip Signal → Circuit Breaker Action

Voltage and Current Signal Acquisition

The protection system collects real-time three-phase electrical signals through standardized sensing devices:

• CT (Current Transformer): Samples load and generation current signals
• PT/VT (Potential Transformer): Samples system voltage signals

Accurate CT/PT ratio configuration and correct wiring polarity are the prerequisites for valid power direction judgment.

Reverse Power Protection Calculation

The protection relay calculates three-phase active power based on collected voltage, current, and phase angle data. It distinguishes normal positive power and abnormal negative (reverse) power through real-time power value calculation and phase angle identification.

ANSI 32 Reverse Power Protection Relay Logic

The dedicated ANSI 32 numerical relay is the core hardware of the protection system. It filters transient power fluctuations through a preset delay, avoids nuisance tripping, and outputs alarm signals for minor deviations or breaker trip signals for sustained abnormal reverse power faults.

Reverse Power Flow Protection for Solar PV Systems

Root Causes of Reverse Power in Solar Systems

Solar PV systems have the highest frequency of reverse power flow due to intermittent generation characteristics. During peak sunlight hours, PV array output often exceeds on-site building and equipment load, resulting in surplus power flowing back to the grid.

For zero-export solar projects strictly required by utilities, any slight reverse power flow is classified as a system fault that requires immediate protection intervention.

Grid-Tied Solar Reverse Power Protection Scheme

• Install high-precision CTs at the PCC (Point of Common Coupling) to monitor grid power flow in real time
• Configure ANSI 32 relay to track reverse power magnitude and duration
• Coordinate with inverter power limiting functions to suppress excessive grid export
• Realize dual guarantee of protection safety and grid compliance

Reverse Power Protection for Diesel Generator Systems

Generator Reverse Power and Motoring Risks

When multiple diesel generators operate in parallel or generators run in parallel with the grid, prime mover failure, fuel supply interruption, or desynchronized operation will cause reverse power flow. The generator loses power output and is dragged by the grid to operate in motoring mode.

Sustained motoring operation leads to cylinder overheating, mechanical vibration, and permanent damage to diesel engines, making reverse power protection a mandatory configuration for all grid-connected and parallel-operated generators.

ANSI 32 Protection Mechanism for Generators

The ANSI 32 reverse power relay continuously monitors generator active power direction. Once sustained reverse power exceeding the setting threshold is detected, it immediately trips the generator breaker to isolate the faulty unit, preventing long-term motoring damage and ensuring stable operation of other parallel units.

Reverse Power Protection in Microgrids and Hybrid Power Systems

Hybrid microgrids integrating solar PV, diesel generators, and battery storage have bidirectional and variable power flow characteristics, making reverse power protection core to system stability.

Solar + Diesel Hybrid Systems

In sunny weather, solar output prioritizes supplying loads. Excess power may flow into idle diesel generators or back to the grid. Reverse power protection balances multi-source power distribution and avoids generator motoring.

BESS + Solar Microgrids

Battery charging and discharging switching easily causes transient power reversal. The protection system filters transient fluctuations through delay settings and only responds to sustained faulty reverse power flow.

Grid-Tied and Islanded Mode Switching

Microgrid mode switching is a high-risk scenario for reverse power faults. Reliable reverse power protection ensures safe switching between grid-tied and islanded states and prevents grid impact and equipment faults.

Reverse Power Protection Relay Settings

Critical Note: Reverse power protection settings should be determined according to the generator rating, system configuration, utility requirements and protection coordination. No universal fixed value applies to all projects.

Reverse Power Pickup Setting

The pickup threshold is usually set as a percentage of the rated generator power. For diesel generators, the typical range is2%–8% of rated power; turbine generators adopt a lower setting of 2%–5% to adapt to different transient operating characteristics.

Time Delay Setting

Intentional delay (0.05–300s) is essential to avoid nuisance tripping caused by transient power fluctuations during load switching, solar irradiation changes, and generator synchronization. The delay value must coordinate with other protection functions to ensure fault-level priority action.

CT Ratio and Polarity Calibration

Incorrect CT polarity is the top cause of reverse power protection misoperation. Engineers must verify CT installation direction, phase sequence, and ratio matching during commissioning to ensure accurate power direction judgment.

Protection Coordination with Other Functions

Reverse power protection must coordinate with overcurrent, over/undervoltage, over/under frequency, and anti-islanding protection to form a complete microgrid protection system and avoid protection dead zones or misoperation.

Reverse Power Protection Wiring Diagram

System Wiring Logic

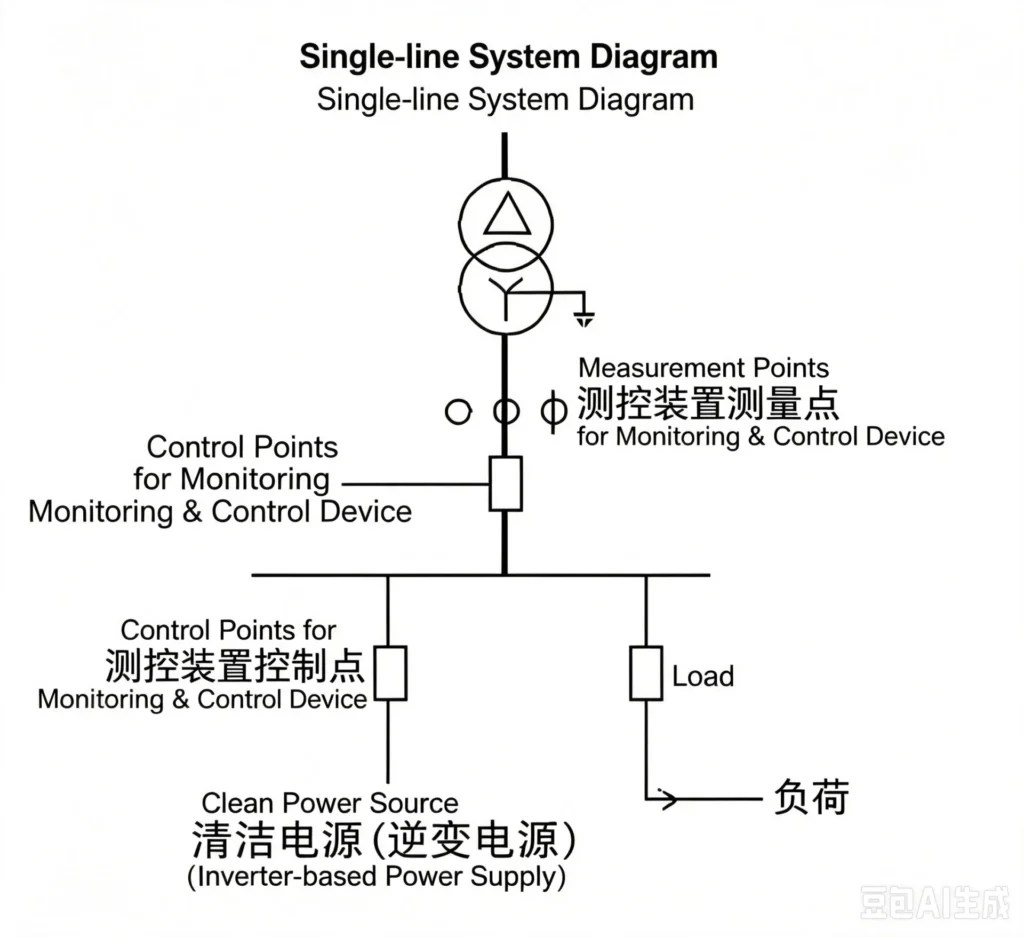

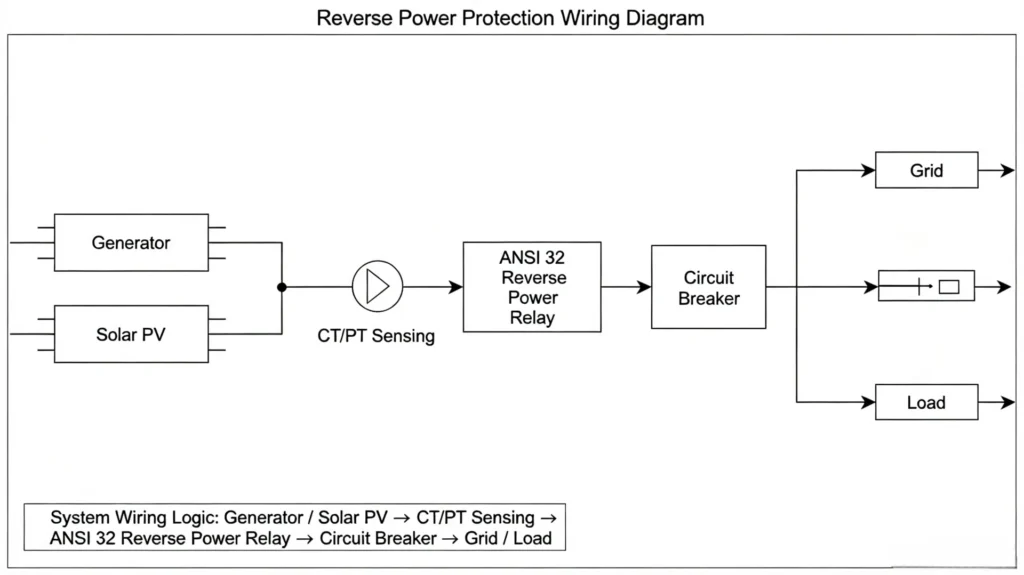

The standard reverse power protection system follows a unified hardware connection logic:

Generator / Solar PV → CT/PT Sensing → ANSI 32 Reverse Power Relay → Circuit Breaker → Grid/Load

Core Wiring Verification Points

• Three-phase CT polarity and current direction consistency
• Correct phase sequence of voltage and current signals
• Independent power supply and signal loop of the relay
• Reliable trip circuit connection between relay and breaker

How to Test Reverse Power Flow Protection

Standard testing is mandatory for project commissioning and daily maintenance to ensure protection reliability.

Secondary Injection Test

Inject standard three-phase voltage and current signals through a protection tester, adjust the phase angle to simulate reverse active power operating conditions, and verify the relay’s detection and response capability.

Pickup Value and Operating Time Test

Gradually increase the simulated reverse power value to record the exact pickup threshold of the relay; verify whether the actual operating time matches the preset delay setting to ensure protection accuracy and coordination.

CT Polarity Test

Calibrate power direction through on-site load tests to eliminate false reverse power detection caused by reversed CT wiring and phase sequence errors.

Common Reverse Power Protection Problems and Solutions

Common Problem	Root Cause	Engineering Solution
Incorrect reverse power detection	CT polarity wiring error	Recheck and correct CT wiring polarity
Relay fails to trip on fault	Improper ANSI 32 parameter settings	Recalibrate pickup value and delay time
Frequent nuisance tripping	Overly sensitive pickup setting, insufficient delay	Optimize protection threshold and delay coordination
Wrong power direction judgment	Three-phase phase sequence error	Adjust field phase wiring sequence
Slow protection response	Excessively long delay setting	Optimize protection coordination logic
Uncontrolled solar grid export	Protection relay cannot replace export controller	Add dedicated zero-export control system

Industry Standards and Compliance Requirements

• ANSI 32 Standard: Defines reverse power protection functional specifications for generator and grid protection
• IEC 60255-118-1:2018: Specifies directional power measurement and relay verification criteria
• IEEE C37.10: Standard for generator protection system design and coordination
• Local utility grid interconnection codes: Mandatory reverse power and zero-export protection requirements for DER projects

Core Industry Applications

Reverse power flow protection is a standard configuration for all distributed generation and microgrid projects:

• Diesel and gas generator parallel operation systems
• Grid-tied and off-grid solar PV power plants
• Commercial & industrial hybrid microgrids
• Battery energy storage grid-connected systems
• Utility distribution substations and DER access points

How to Select a Qualified Reverse Power Flow Protection Relay

Electrical Parameter Matching

Match rated voltage, rated current, system frequency, and on-site CT/PT ratio to ensure relay measurement accuracy and operational adaptability.

Integrated Protection Functions

Prioritize relays integrating ANSI 32 reverse power, overcurrent, earth fault, over/undervoltage, and anti-islanding protection to reduce equipment investment and simplify system coordination.

Industrial Communication Compatibility

Support Modbus RTU, RS485, and Ethernet communication to realize SCADA remote monitoring, data uploading, and remote parameter adjustment, adapting to intelligent microgrid management.

Commissioning and After-Sales Support

Choose devices with complete secondary injection testing standards and professional EPC commissioning support to ensure on-site stable operation.

FAQ About Reverse Power Flow Protection

1. What is reverse power flow protection?

Reverse Power Flow Protection is an ANSI 32 standard protection function that detects unintentional negative active power flow in power systems and triggers alarms or trips to protect generators, loads, and grid assets.

2. What causes reverse power flow?

Main causes include excessive solar generation, generator prime mover failure, parallel unit load imbalance, CT wiring errors, and microgrid mode switching.

3. What is ANSI 32 protection?

ANSI 32 is the industry standard code for reverse active power protection and reverse power flow protection, specially used for generator motoring protection and grid reverse power fault monitoring.

4. What is the difference between reverse power protection and directional overcurrent protection?

Reverse power protection judges faults by power direction and magnitude, suitable for low-current reverse power faults; directional overcurrent protection judges by current direction, suitable for short-circuit fault scenarios.

5. Do solar PV systems need reverse power protection?

Yes. All grid-tied solar systems require this protection to meet utility interconnection rules, prevent unregulated grid export, and avoid system faults.

6. What damage will generator reverse power cause?

It leads to generator motoring operation, causing prime mover overheating, mechanical wear, blade damage, and even unit burnout in severe cases.

7.Difference between Low Forward Power and Reverse Power Protection

Item	Low Forward Power Protection (ANSI‑32L)	Reverse Power Protection (ANSI‑32R)
Power direction	Forward power, P＞0 (generator exports power)	Reverse power, P＜0 (generator absorbs power from grid)
Operating condition	Forward active power drops below positive threshold	Active power reverses direction
Typical application	Nuclear & large‑size turbine‑generator	General thermal turbine‑generator
Trigger timing	Early stage after turbine valve closure	After power flows backward to generator

Conclusion

Reverse power flow is a normal physical phenomenon in distributed power systems, but uncontrolled abnormal reverse power flow poses fatal risks to generators, transformers, and utility grids. As a core ANSI 32 protection technology, reverse power flow protection provides reliable fault detection and isolation for solar PV, diesel generators, and hybrid microgrids.

On‑site protection reliability depends on accurate CT wiring, project‑specific relay settings, standardized testing, and multi‑protection function coordination. For EPC contractors and project owners, adopting standardized Reverse Power Flow Protection solutions is the key to ensuring long‑term safe, compliant, and stable operation of distributed energy systems.

Technical References & Data Sources

• IEC 60255-118-1:2018 Measuring relays and protection equipment – Directional power protection requirements
• IEEE C37.10: Standard for Generator Protection and Control Systems
• Schneider Electric Micrologic X Reverse Power Protection Official User Manual
• Siemens SIPROTEC 7UM611 Generator Protection Relay Technical Specification
• Industrial Monitoring Direct: Generator Motoring Protection Industry Calibration Data (2026)
• Utility Distributed Generation Interconnection Standard Guidelines
