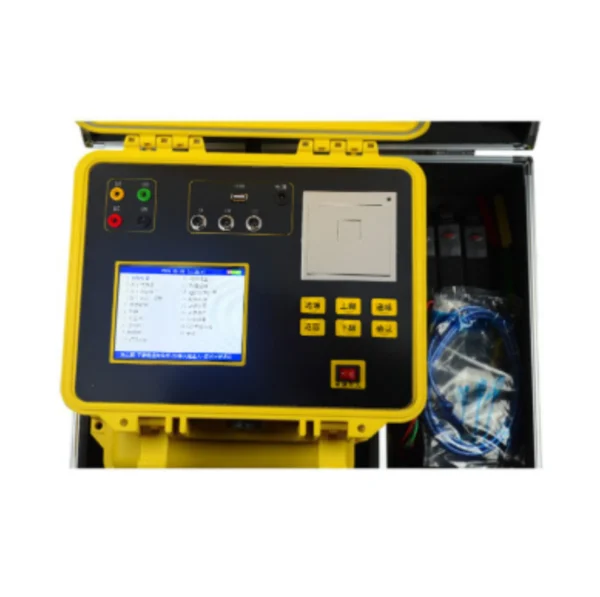

Portable Power Quality Meter 11/35

Lightweight portable power quality analyzer featuring wide input range and low measurement error. It fully monitors fundamental parameters and total harmonic distortion for power system on-site analysis.

In-house Factory & Technical Team, OEM ODM Custom Electrical Equipment

Download datasheet (PDF)

Send your requirements, we will quote for you within 12 hours​
MOQ: 1 setLead time: 7-15 working daysPayment: T/T, L/C, Western Union, PayPalWarranty: 12 monthsTrade terms: EXW, FOB, CIF, DDUCertification: CEDifferent rating, protocol or mounting: send the specification and we confirm before you order.

Description

What is a portable power quality meter for 11 kV and 35 kV systems?

A portable power quality meter is a field instrument that measures voltage, current, power, harmonics and events on an 11 kV or 35 kV system, normally through the existing CTs and VTs or with a clamp and a voltage probe, so a survey can be done without a shutdown. The portable format is what makes it practical for a distribution network: a fixed monitor covers one point, while a survey instrument lets an engineer compare a substation, a feeder end and a customer connection in the same week and see where the distortion or the dip originates. Records are stored with timestamps and exported for a report. Typical duty is a utility feeder survey, a plant incoming supply investigation, or a pre-commissioning check on a new connection. Quotation within 12 hours, MOQ 1, 7-15 working days.

Overview of Portable Power Quality Meter

  • The Portable Power Quality Meter is widely applied in power transmission & distribution, power electronics, motor drive and other fields.
  • This power quality measurement equipment measures and analyzes AC power quality of public power grids at user terminals.
  • Adopts wavelet transform to analyze harmonics of non-stationary time-varying signals.
  • Measures and assesses the impact of various electrical equipment on public grid power quality under different operating conditions.
  • Enables dynamic monitoring during commissioning and operation of power equipment, helping troubleshoot power quality problems and issues arising in equipment adjustment and commissioning.
  • Power quality instruments detect and analyze fault causes such as circuit breaker operation anomalies, transformer overheating, motor burnout and incorrect operation of automatic devices in power systems.
  • The portable power quality analyzer tests dynamic parameters of reactive power compensation and filter devices, and provides quantitative evaluation on their functions and technical specifications

Equipment List – Power Quality Analysis

No.DescriptionQuantityRemarks
1Main Unit1 set–
2Alligator Clips8 pcs5 large, 4 small
3USB Flash Drive1 pcFor data storage
4Power Adapter1 pcFor device charging
5Current Clamps3 pcsFor current testing, one for Phase A, B and C respectively
6Voltage Test Leads1 set4 cores: yellow, green, red, black for voltage testing

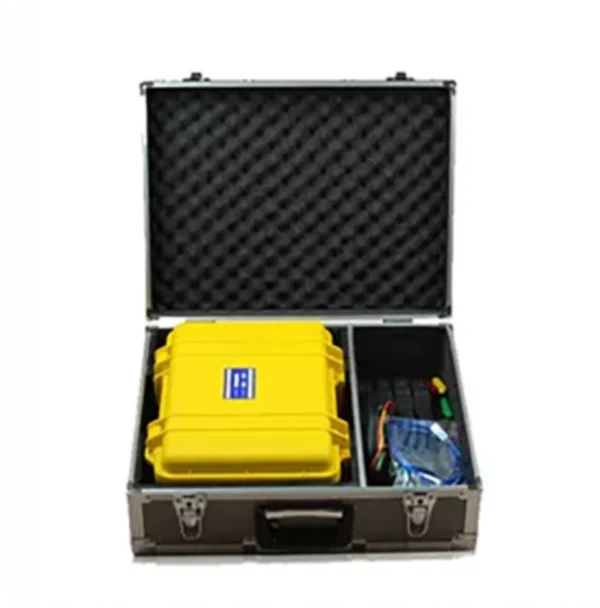

Image of Equipment List – Power Quality AnalyserPortable Power Quality Meter 11/35, test accessory kit with leads and clamps

Instrument Features of Power Quality Measurement Devices

Safe and Reliable
  • The voltage input adopts high-voltage isolation module (2000V, response time ≤2μs). The current input uses AC current clamps (0-50kHz, 0-5Arms), which realizes safe isolation between input signals and the measurement system. It ensures safe, reliable and convenient operation, and greatly enhances anti-interference performance.

Easy to Use

  • Featured with portable design. Dimensions: 320×280×135 mm (L×W×H); light weight of 3.5 kg, easy for single-person on-site carrying and testing. Built-in high-performance lithium battery supports 8 hours of continuous operation without external power supply.

High Accuracy

  • Adopts reference algorithms without approximate calculation for harmonic and three-phase unbalance measurement. Equipped with 16-bit high-precision A/D converter for simultaneous sampling at a rate of 12.8 kHz.

Powerful Software Functions

  • Built on DSP+ARM+CPLD core for fast processing speed and abundant software functions. It adapts to complex testing and data processing tasks, effectively improving testing efficiency and performance.

Communication Interface

  • Equipped with USB port for data storage to USB flash drives.

Comprehensive Test Parameters

  • Covers all five major national standard parameters for power quality: system frequency, grid harmonics, three-phase voltage unbalance, voltage deviation, voltage swell and sag, fundamental & true RMS of voltage and current, active power, reactive power, apparent power, 2nd to 63rd harmonics, true power factor, etc.

Real-time Harmonic Monitoring

  • Judges in real time whether the measured voltage and current harmonic data are normal or out of limit.

Background Management & Analysis Software

  • Dz200 Pro Power Quality Management & Analysis Software runs on WIN9X/2000/XP/NT operating systems. Please refer to the software user manual for detailed instructions.

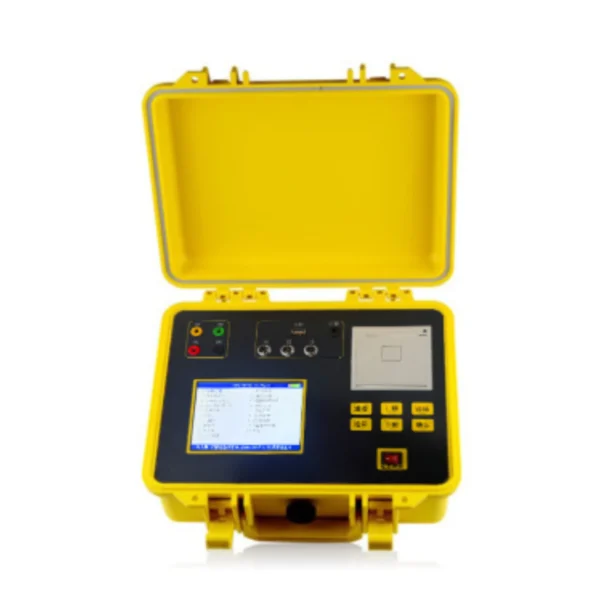

Portable Power Quality Meter                                                                   Portable Power Quality Meter 11/35, closed yellow hard case

Test Range & Specifications of Mobile Power Quality Analysers

ItemSpecification
Frequency MeasurementRange: 45-55 Hz (center frequency 50 Hz)Measurement condition: Fundamental component of signal ≥ 80% F.S.Measurement error: ≤ 0.02 Hz
Input Voltage Range20 V ~ 650 V
Input Current Range0.06 A ~ 6 AOptional ranges: 25 A, 200 A, 500 A, 1000 A, 2000 A, 3000 A, etc.
Fundamental Voltage Amplitude Error≤ 0.5% F.S.
Fundamental Current Amplitude Error≤ 1% F.S.
Phase Difference Measurement Error (Fundamental Voltage & Current)≤ 0.5°
Total Harmonic Voltage Ratio Measurement Error≤ 0.1%
Total Harmonic Current Ratio Measurement Error≤ 0.2%

How do I place an order?

Send your specification through the contact form, by email to sale@relayprotect.com or on WhatsApp. We check the rating, the protocol and the wiring against your application, confirm the model, and return a quotation. No account or registration is needed.

What is the minimum order quantity?

The minimum order quantity is one unit. A single unit can be ordered for evaluation or for a pilot installation, and project quantities are quoted separately.

What is the lead time?

Standard models ship in 7 to 15 working days after the order is confirmed and payment is received. Custom ratings, protocols or mounting arrangements are confirmed in writing before the order is placed, so the delivery date is known in advance.

Which payment methods and trade terms do you accept?

Payment by T/T, L/C, Western Union or PayPal. Trade terms are EXW, FOB, CIF and DDU. Every relay carries a 12-month warranty.

FAQ

Q:What is power quality?

It is the power supply status of public grids for electrical equipment, covering frequency, voltage stability, harmonics and three-phase balance. Standard power quality guarantees stable equipment operation, while poor power quality leads to equipment faults and energy loss.

Q:What device is used to accurately test grid power parameters?

A three phase power quality analyzer is a professional testing device. It collects, analyzes and records grid operation data, suitable for industrial power distribution, equipment commissioning and daily power inspection.

Q:How do enterprises solve long-term grid power operation problems?

Professional power quality engineering services solve long-term grid operation problems. They cover on-site testing, data analysis and solution customization to eliminate grid risks, reduce power loss and equipment failure rates.

Q:What are the core advantages of grid condition detection work?

The core advantages of power quality monitoring include real-time grid status tracking, potential fault early warning, less equipment damage, lower operation costs and compliant grid operation.

Q:How to select suitable testing equipment for grid detection?

You can evaluate detection accuracy, portability and data processing performance to select the best power quality analyzer for your actual on-site testing needs.

Q:What core work does grid detection and maintenance focus on?

Grid maintenance focuses on the work to professionally measure power quality. It analyzes key grid indicators to judge power supply status and support grid optimization and fault troubleshooting.

Where a portable power quality meter is used first

A power quality complaint usually starts at one point: a drive that trips, a transformer that runs hot, a capacitor bank that fails early. The meter is carried to that point and measures AC power quality at the user terminal, so the reading is taken where the problem shows rather than back at the substation.

Harmonics are the first thing to look at when the load is a drive, a rectifier or an inverter, because the current is not a clean sine and the harmonic content moves with the operating point. The meter analyses these non-stationary signals with wavelet transform, which is what keeps the reading usable while the load is changing.

Reactive compensation and filter banks are checked the same way: the meter tests their dynamic parameters and gives a quantitative evaluation of whether the bank still does what it was specified to do. Breaker operation anomalies, transformer overheating, motor burnout and incorrect operation of automatic devices all leave power quality evidence, and a survey during commissioning is the cheapest moment to record the baseline.
