Description

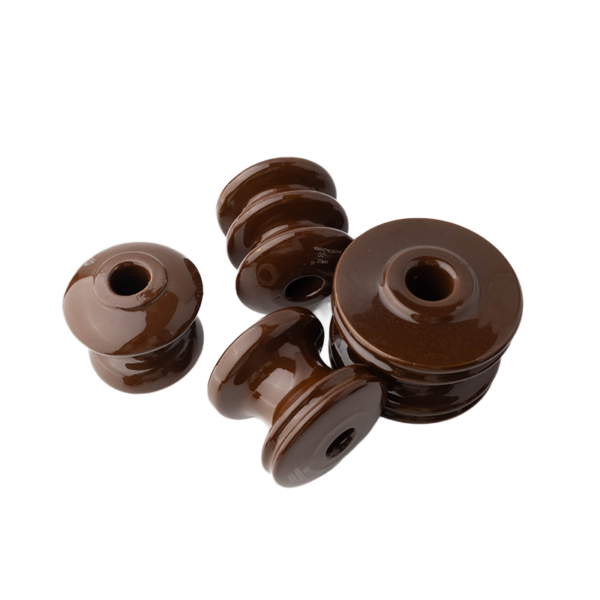

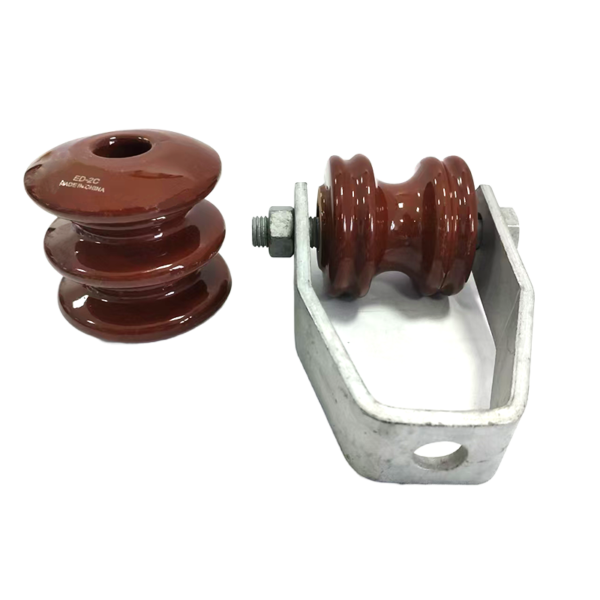

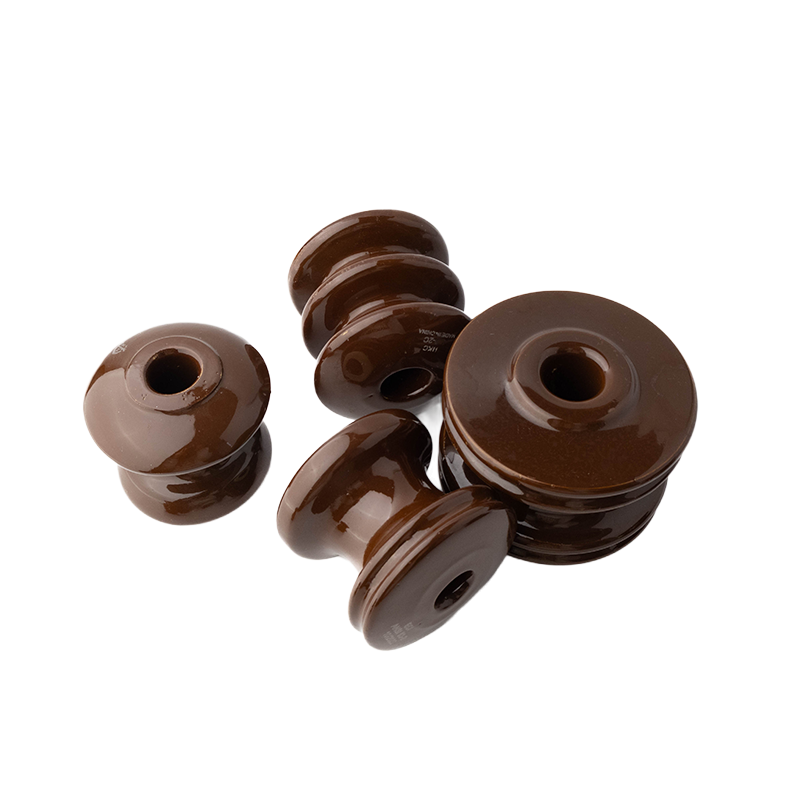

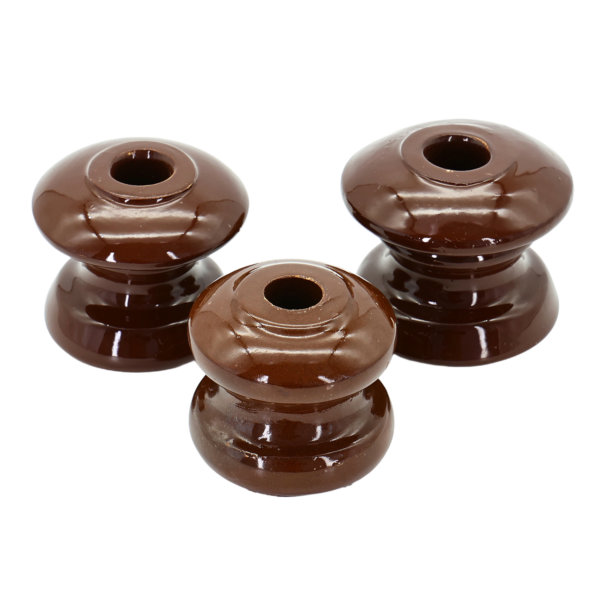

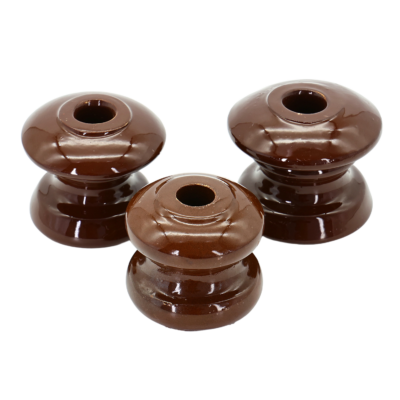

Our Spool Type Porcelain Insulators are high-performance ceramic insulation components designed for overhead power distribution and transmission lines. They feature a spool (or bobbin) shape with a central through-hole, making them ideal for supporting and insulating conductors while allowing wire passing or jumper connections. With excellent mechanical strength and insulation performance, they ensure safe and reliable power delivery in various electrical networks.
Key Features
- Special Spool Structure: Designed with a through-hole for easy conductor threading, jumper wiring, and flexible installation in line sections, terminal towers, and branch lines.
- High Mechanical Strength: Sturdy porcelain construction provides strong resistance to bending, tensile, and impact loads, ensuring stable support under wind, ice, and external forces.
- Superior Insulation Performance: High dielectric strength and low leakage current effectively prevent flashover and electric shock, even in wet and polluted environments.
- Weather & Corrosion Resistance: Porcelain material resists UV radiation, moisture, temperature changes, and atmospheric corrosion, ensuring long-term stability in outdoor conditions.
- Low Electrical Loss: Stable insulation characteristics under various operating voltages minimize energy loss and ensure efficient power transmission.
- Proven Reliability & Long Life: Time-tested design and manufacturing ensure consistent quality and a service life of over 30 years.
- Easy Installation & Maintenance: Standard dimensions and simple structure allow quick installation and low maintenance costs.
Applications
| Application Scenario | Applicable Voltage (AC) |
|---|---|
| Overhead Distribution Lines | 10kV, 35kV |
| Overhead Line Terminal & Angle Towers | 10kV–35kV |
| Line Branch & Jumper Connections | 10kV–35kV |
| Railway Electrification Systems | 27.5kV |
| Rural & Urban Power Networks | 10kV |
Technical Advantages
- Compliant with international standards (IEC 60120, GB/T 1001.1)
- High insulation resistance and dielectric strength
- Long service life (30+ years)
- Environmentally friendly and recyclable materials
- Cost-effective and high cost-performance ratio
Our Spool Type Porcelain Insulators combine a unique structural design, reliable mechanical performance, and excellent electrical insulation, making them an essential component for overhead power systems worldwide.
